Gamintojas: Extronics

USB / wifi iwap 400 adapteris

Connect PC’s to an 802.11b/g WLAN using a USB port

II 2(1) G Ex e mb [ia] IIC T4 -20°C to + 60°C
IP66
USB 2.0 compatible


Overview

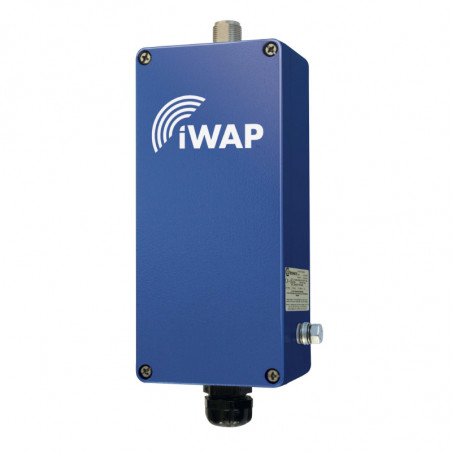

The iWAP400 is a zone 1 encapsulated and increased safety USB to Wi-Fi adapter. The Antenna RF output from the iWAP400 is intrinsically safe and therefore can beused with Extronics range of iANT200 antennas. The iWAP400 is housed in a rugged aluminium enclosure making it suitable for mounting in a wide range of areas. The enclosure is epoxy coated and IP rated so can therefore be installed outdoors in harsh environments.

The iWAP400 uses a Wi-Fi Certified transmitter module, which gives a maximum of 31.5mW of intrinsically safe output power and the device supports 802.11b/g standard. Used in conjunction with the iANT207 up to 80mW EIRP is available giving excellent wireless coverage. The iWAP400 is powered via a standard USB port, enabling devices such as PCs to communicate wirelessly with an 802.11b/g WLAN. .

Features and Benefits

Enable any PC to have WiFi

For enabling explosion proof panel PCs, purge PCs or any PC based device with a USB port to be connected to a WiFi network

Intrinsically Safe RF Output

The intrinsically safe RF output means that a wide range of antennas may be connected. For use in zone 1 and zone 2, the Extronics
range of iANT200 antennas may be used.

Compact Design

The compact design of the iWAP400 means it may be mounted into most manufacturers PC terminal enclosure systems.

Specification

Power Supply 5V DC +-5%, USB Power
Host Interface USB 1.1 i USB 2.0
Maximum USB Cable Length Standard Cable—USB 1.1 = 3m, USB 2.0 = 5m
High Quality Cat-6—USB 1.1 = 10m, USB 2.0 = 5m
Power Consumption Tx: <400mA
Rx: <250mA
Data Rates 802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Note: The data rates above are only applicable if using a USB 2.0 port. If using
a USB1.1 port the maximum throughput, using 802.11b or 802.11g, will
typically be < 4Mbps at layer 3
Typical Receive Sensitivity -80dBm @ 11Mbps
-65dBm @ 54Mbps
Typical Transmit Power CCK: 15dBm – 802.11b
OFDM: 12dBm – 802.11g
Security Encryption and Authentication WEP 64/128, TKIP, AES, WPA, WPA2, 802.11e, 802.11i security specifications, Advanced Encryption Standard (AES) IEEE802.1x client, QoS, WMM/Direct Link, Cisco CCX V1.0, V2.0 i V3.0 compliant (np. LEAP, EAP-FAST)
Modulations Technology 802.11b:
DSSS Direct Sequence Spread Spectrum (CCK @ 11 and 5.5Mbps, DQPSK @ 2Mbps)
802.11g:
OFDM Orthogonal Frequency Division Multiplexing (64QAM @ 48 and 54 Mbps, 16QAM @ 24 and 36, QPSK @ 12 and 18 Mbps, BPSK @ 6 and 9 Mbps)
Network Standards WECA (Wi-Fi @ WiFi5), IEE802.11, IEEE802.11b, IEEE802.11g, IEE802.11d, IEE802.11f, IEEE802.11i, Cisco CCX V1.0, V2.0 i V3.0 compliant (np. LEAP, EAP-FAST)
Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)
Frequency Bands, Channels and Country
Selections		 802.11b/g, global coverage
Network Architecture Types Support for Ad-hoc, Infrastructure and soft-AP
Antenna Choose from Extronics extensive range of approved antennas
Connectors 1 x Earth Stud
5 x Screw Terminals – USB Connection
1 x N-Type Female Connector – Antenna Connector
Enclosure material Diecast Aluminium (powder coated)
Ingress Protection IP66
Weight ok. 1kg
Dimensions 222 x 80 x 57mm (wys. x sz. x gł.)
Ambient Temperture -20⁰C do 60⁰C
ATEX Certification II 2 (1) G Ex e mb [ia] IIC T4
Certificate numer Epsilon 07 ATEX 2316

Order Information

Description Part Numer
USB WiFi Adaptor with Intrinsically Safe RF Output iWAP400

Please note that the iWAP400 is not supplied with any external cables. External cables will be required for Both RF and USB
and these can be supplied at an additional cost.
