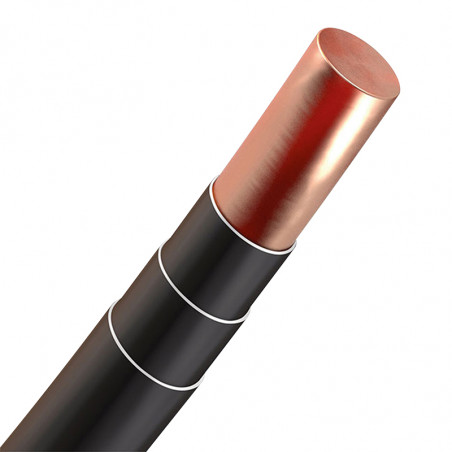

RUPATEX, B klasė
  • RUPATEX, B klasė

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: PACK Litz Wire

RUPATEX, B klasė

Maximal protection, lowest costs

Technical data
Technical and economical advantages
- Insulation between primary and secondary winding is not necessary
-  Current leakage is closed in the wire
- Faster winding time
- Available in small amounts

Construction:
- Enamel wire copper (magnet wire) (0,2 - 1,0mm, AWG 14-24) + triple insulation according to IEC 60950
- Other diameters for request

Insulation matersial:
- ETFE (TEFZEL©)
- triple insulation according to IEC 60950, Annex C i Annex U
- UL Certificate e257248
- Operation voltage max 600vrms
- Material class "B" 130 oC
- Break down voltage min 3000v

Application
- HF transformers
- HF chokes
- Impulse power supply



Diameter
[mm]

External diameter
[mm]

Article number

0.20

0.40

500000002004

0.22

0.42

500000002204

0.24

0.44

500000002404

0.25

0.45

500000002504

0.28

0.48

500000002804

0.30

0.50

500000003004

0.32

0.52

500000003204

0.35

0.55

500000003504

0.40

0.60

500000004004

0.45

0.65

500000004504

0.50

0.70

500000005004

0.55

0.75

500000005504

0.60

0.80

500000006004

0.70

0.90

500000007004

0.80

1.00

500000008004

0.90

1.10

500000009004
