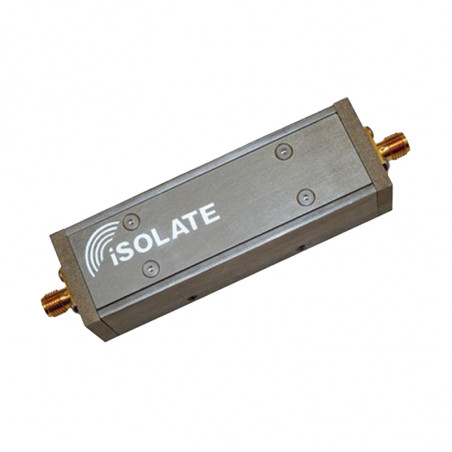

Nuo kibirkščių apsaugotas radijo signalo separatorius iSOLATE500

The iSOLATE500 is an ATEX and IECEx approved intrinsically safe Zone 0 RF galvanic isolator. This isolator converts the antenna output of any standard radio or wireless hardware into an intrinsically safe RF output. The concept gives users the flexibility to safely implement industry standard wireless solutions in hazardous areas. Now users can deploy the vast majority of wireless radio equipment in hazardous areas without the need to undergo costly assessment by notified bodies for conformity to the latest ATEX and IECEx standards.

The iSOLATE500 is available in four variants for frequencies 5GHz, 2.4GHz, 900MHz and a dual band 2.4GHz / 5GHz option. The unique design of the iSOLATE500 means that it has the best possible protection against dangerous transients and makes deploying wireless networks a more simple and cost-effective proposition. The unit is designed with a narrow pass-band which suppresses hazardous transients passing through the isolator to a safe level.



Specification:

Certification type EX II(1) GD [Ex ia Ga], [Ex ia Da]
IIICEX I(M1) [Ex ia Ma] I
Maximum Input / Output Power Group I – 6 W (37,7 dBm)
Group IIC – 2 W (33 dBm)
Group IIB – 3,5 W (35,4 dBm)
Group IIA – 6 W (37,7 dBm)
Group III – 6 W (37,7 dBm)
Frequency Pass Band 900 MHz: 860 – 960 MHz
2400 MHz: 2400 – 2400 MHz
5000 MHz: 4900 – 5900 MHz
Enclosure Material Nikel Plater Aluminium
Ingress Protection IP 40
Environmental

Ambient temperature: -60oC do 80oC
Relative humidity; 0 to 95%, non condensing

Dimensions
(w x h x d)\Weight

 900 MHz: 100 x 65 x 20 mm (300g)
2400 MHz: 100 x 25 x 20 mm (120g)
5000 MHz: 80 x 25 x 20 mm (100g)
Dual Band: 150 x 67 x 20 mm (400g)
RF Connections SMA female
Insertion Loss

Typical

Max
900 MHz
2400 MHz
5000 MHz
2,4/5 GHz		 < 1,3 dB
< 1,4 dB
< 1,5 dB
< 1,85 / 2,45 dB		 1,7 dB
1,7 dB
1,9 dB
1,9 / 3,4 dB
Return Loss (typical) 900 MHz
2400 MHz
5000 MHz
2,4/5 GHz		 < -20 dB
< -20 dB
< -15 dB
< -20 dB / -15dB
Certification Baseefa 13ATEX0112X, IECEx BAS 13.0064X, FM Pending


Features and Benefits

Galvanically Isolated Outputs Provides galvanically isolated RF outputs for standard wireless radio equipment.

Small Compact Design Easy installation of multiple isolators is achieved due to their compact and lightweight design, and versatile mounting options.

Extended Temperature Range Operating temperature range of -60°C to +80°C for the most extreme environments.

Future Proof Infrastructure As new wi reless hardware becomes available it can be substituted for old hardware w hilst kee pin g the e xis tin g
isolators, meaning the user is installing a future proof solution.

Multiple Frequency Isolators Currently available in four different variants for frequencies 5GHz, 2.4GHz, 900MHz and dual band WiFi..

Typical Deploymentof iSOLATE500

A- The iSOLATE500 makes any RF output intrinsically safe from all known faults; AC, DC, Hazardous Transients.

B- Any wireless radio device can be deployed. Check device datasheet to ensure
RF output is within acceptable limits. No notified body assessment required

C - The iSOLATE-CT N type RF connector transit makes installation simple - no need for glands - use standard tools - live connect[&] disconnect of antennas.

D- Allows a wide choice of antennas to be used without notified body assessment.
Improved wireless performance from standard high-performance antennas - not limited range of certified omni antennas. (user must assess risk as per guidelines for that country - Extronics iANT2xx range already assessed as safe to use)



Ordering Information

900MHz Intrinsically Safe RF Galvanic Isolator with female SMA connectors.

iSOLATE500-0900
2400MHz Intrinsically Safe RF Galvanic Isolator with female SMA connectors.

iSOLATE500-2400
5000MHz Intrinsically Safe RF Galvanic Isolator with female SMA connectors.

iSOLATE500-5000
Dual Band 2400MHz [&] 5000MHz Intrinsically Safe RF Galvanic Isolator with female SMA connectors

iSOLATE500-DB2450

Optional Extras
Explosion proof N-type RF connector transit for quick and easy installation of antennas iSOLATE-CT
iANT2XX range of simple apparatus antennas—see product datasheets for more information. iANT2XX
