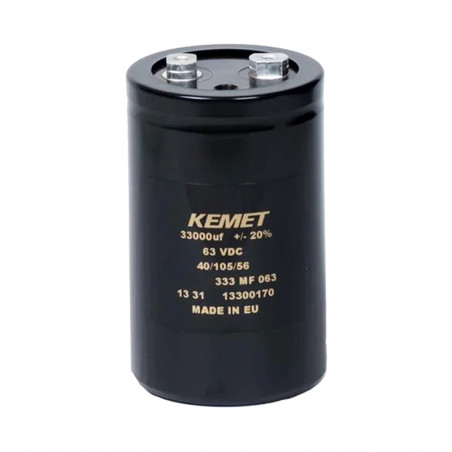

ALS40 / 41, + 105 ° 40 serija
  • ALS40 / 41, + 105 ° 40 serija

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: KEMET

ALS40 / 41, + 105 ° 40 serija

Series ALS40/41, +105°C




Marking method

ALS4 0 A 153 DA 025
Series Mounting Method Type of screw terminals Capacitance [µF] Casing Code Rated voltage [VDC]
Screw Terminal Aluminum Electrolytic

2 = Without screw
mounting
3 = Fastening screw

 See table

First two digits - capacity value
Third - the number of zeros

 See table 025=25
040 = 40
063 = 63
100 = 100
160 = 160
200 = 200		 250 = 250
350 = 350
400 = 400
415 = 415
450 = 450
500 = 500

Item Special features
Capacitance range 150 – 680,000 µF
Voltage range 25 – 500 VDC
Operating temperature -40 to +105°C
Storage temperature -55 to +105°C
Capacity tolerance ±20% at 100 Hz / +20°C
Life Time D (mm) UN i IR w +105°C (h) UN w +105°C (h)
36 6,000 10,000
51 7,000 11,000
66 8,000 13,000
77,90 9,000 15,000
Storage time 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
Norms IEC 60384–4 long

Conditions VDC [V]
25 40 63 100 200 250 350 400 415 450 500

Impact ≤ 30s without load
during 330s, 1,000 cycles at + 85 ° C

 28.75 46 72.45 115 230 287.5 385 440 456.5 495 550

Impact ≤ 500 ms, 100 cycles
at 20 ° C, randomly
during the life of the condenser

         350 400 500 520 530 550 600

VN VDC CN Casing  Dimensions Ripple current ESR Max Maximum Impedance Typ
100 Hz  20°C (µF) D x L (mm) 100 Hz 105°C (A) 10 kHz 105°C (A) 100 Hz 20°C (mΩ) 10 kHz20°C (mΩ)
25 15000 DA 36 x 52 6.9 7.3 24 20 ALS4(1)(2)153DA025
25 22000 DB 36 x 62 8.4 8.8 17 15 ALS4(1)(2)223DB025
25 33000 DE 36 x 82 11.1 11.7 11 10 ALS4(1)(2)333DE025
25 47000 DF 36 x 105 14.0 14.7 9 8 ALS4(1)(2)473DF025
25 68000 KE 51 x 82 12.0 12.2 13 12 ALS4(1)(2)683KE025
25 100000 KF 51 x 105 16.4 16.7 9 8 ALS4(1)(2)104KF025
25 150000 ND 77 x 75 13.7 13.8 13 13 ALS4(1)(2)154ND025
25 150000 MF 66 x 105 23.8 24.1 6 6 ALS4(1)(2)154MF025
25 150000 QD 90 x 75 18.7 18.8 10 10 ALS4(1)(2)154QD025
25 220000 QC 90 x 67 18.6 19.2 9 8 ALS4(1)(2)224QC025
25 220000 NF 77 x 105 22.3 22.4 8 7 ALS4(1)(2)224NF025
25 330000 QH 90 x 98 22.3 22.4 8 8 ALS4(1)(2)334QH025
25 330000 NP 77 x 146 31.0 31.1 5 5 ALS4(1)(2)334NP025
25 470000 QP 90 x 146 36.9 37.1 4 4 ALS4(1)(2)474QP025
25 470000 NT 77 x 220 38.9 39.8 4 4 ALS4(1)(2)474NT025
25 680000 QT 90 x 220 47.0 48.1 4 3 ALS4(1)(2)684QT025
40 10000 DA 36 x 52 6.6 6.9 23 19 ALS4(1)(2)103DA040
40 10000 DB 36 x 62 8.1 8.7 19 16 ALS4(1)(2)103DB040
40 15000 DE 36 x 82 10.8 11.6 13 10 ALS4(1)(2)153DE040
40 22000 DF 36 x 105 13.6 14.5 10 8 ALS4(1)(2)223DF040
40 33000 KE 51 x 82 11.7 12.0 13 12 ALS4(1)(2)333KE040
40 47000 KF 51 x 105 16.2 16.6 9 8 ALS4(1)(2)473KF040
40 68000 ND 77 x 75 13.9 14.0 13 13 ALS4(1)(2)683ND040
40 100000 MF 66 x 105 20.6 20.8 7 7 ALS4(1)(2)104MF040
40 100000 QC 90 x 67 17.7 18.5 10 9 ALS4(1)(2)104QC040
40 100000 QD 90 x 75 16.0 16.1 12 11 ALS4(1)(2)104QD040
40 100000 NF 77 x 105 22.4 22.7 7 7 ALS4(1)(2)104NF040
40 150000 QH 90 x 98 22.6 22.8 8 8 ALS4(1)(2)154QH040
40 150000 NP 77 x 146 31.3 31.6 5 5 ALS4(1)(2)154NP040
40 220000 QP 90 x 146 36.8 37.1 4 4 ALS4(1)(2)224QP040
40 220000 NT 77 x 220 37.7 39.2 4 4 ALS4(1)(2)224NT040
40 330000 QT 90 x 220 45.6 47.0 4 4 ALS4(1)(2)334QT040
63 3300 DA 36 x 52 5.5 6.2 38 30 ALS4(1)(2)332DA063
63 4700 DB 36 x 62 6.7 7.5 27 22 ALS4(1)(2)472DB063
63 6800 DE 36 x 82 8.9 10.0 19 15 ALS4(1)(2)682DE063
63 10000 DF 36 x 105 11.2 12.6 13 10 ALS4(1)(2)103DF063
63 15000 KE 51 x 82 10.7 11.2 16 15 ALS4(1)(2)153KE063
63 22000 KF 51 x 105 14.7 15.3 11 10 ALS4(1)(2)223KF063
63 22000 ND 77 x 75 14.6 15.1 14 12 ALS4(1)(2)223ND063
63 33000 MF 66 x 105 21.3 22.2 8 7 ALS4(1)(2)333MF063
63 33000 QC 90 x 67 18.1 20.1 10 8 ALS4(1)(2)333QC063
63 33000 QD 90 x 75 17.1 17.5 11 11 ALS4(1)(2)333QD063
63 47000 NF 77 x 105 20.7 21.1 9 8 ALS4(1)(2)473NF063
63 47000 QH 90 x 98 24.4 25.1 8 7 ALS4(1)(2)473QH063
63 68000 NP 77 x 146 29.1 29.8 6 6 ALS4(1)(2)683NP063
63 100000 QP 90 x 146 34.5 35.2 5 5 ALS4(1)(2)104QP063
63 100000 NT 77 x 220 36.7 38.8 4 4 ALS4(1)(2)104NT063
63 150000 QT 90 x 220 44.4 46.5 4 4 ALS4(1)(2)154QT063
100 1500 DA 36 x 52 3.9 4.5 79 62 ALS4(1)(2)152DA100
100 2200 DB 36 x 62 4.8 5.5 56 44 ALS4(1)(2)222DB100
100 3300 DE 36 x 82 6.4 7.4 37 29 ALS4(1)(2)332DE100
100 4700 DF 36 x 105 8.1 9.3 26 21 ALS4(1)(2)472DF100
100 6800 KE 51 x 82 8.0 8.4 32 28 ALS4(1)(2)682KE100
100 10000 KF 51 x 105 10.9 11.5 21 18 ALS4(1)(2)103KF100
100 15000 ND 77 x 75 9.7 9.9 28 26 ALS4(1)(2)153ND100
100 15000 MF 66 x 105 15.8 16.7 14 12 ALS4(1)(2)153MF100
100 15000 QD 90 x 75 12.9 13.4 20 18 ALS4(1)(2)153QD100
100 22000 QC 90 x 67 14.3 15.2 17 16 ALS4(1)(2)223QC100
100 22000 NF 77 x 105 15.5 16.0 15 13 ALS4(1)(2)223NF100
100 22000 QH 90 x 98 18.4 19.0 13 11 ALS4(1)(2)223QH100
100 33000 NP 77 x 146 21.6 22.2 10 10 ALS4(1)(2)333NP100
100 47000 QP 90 x 146 25.9 26.5 9 8 ALS4(1)(2)473QP100
100 47000 NT 77 x 220 35.4 36.6 7 6 ALS4(1)(2)473NT100
100 100000 QT 90 x 220 37.2 37.9 6 6 ALS4(1)(2)104QT100
200 680 DA 36 x 52 2.9 4.0 195 154 ALS4(1)(2)681DA200
200 680 DB 36 x 62 3.3 4.6 188 147 ALS4(1)(2)681DB200
200 1000 DE 36 x 82 4.3 6.1 128 100 ALS4(1)(2)102DE200
200 1500 DF 36 x 105 5.6 7.8 86 67 ALS4(1)(2)152DF200
200 2200 KE 51 x 82 6.8 8.0 71 58 ALS4(1)(2)222KE200
200 3300 KF 51 x 105 9.1 10.9 47 38 ALS4(1)(2)332KF200
200 4700 ND 77 x 75 8.7 9.4 48 42 ALS4(1)(2)472ND200
200 6800 MF 66 x 105 12.9 14.5 27 23 ALS4(1)(2)682MF200
200 6800 QC 90 x 67 11.8 15.9 37 28 ALS4(1)(2)682QC200
200 6800 QD 90 x 75 10.9 11.7 36 32 ALS4(1)(2)682QD200
200 6800 NF 77 x 105 13.4 14.8 29 25 ALS4(1)(2)682NF200
200 10000 QH 90 x 98 15.4 16.6 23 20 ALS4(1)(2)103QH200
200 10000 NP 77 x 146 19.3 21.5 19 16 ALS4(1)(2)103NP200
200 15000 QP 90 x 146 24.2 26.5 14 12 ALS4(1)(2)153QP200
200 22000 NT 77 x 220 29.5 31.6 11 10 ALS4(1)(2)223NT200
200 33000 QT 90 x 220 34.3 36.4 10 8 ALS4(1)(2)333QT200
250 470 DA 36 x 52 2.5 3.9 235 174 ALS4(1)(2)471DA250
250 680 DB 36 x 62 3.2 4.8 164 122 ALS4(1)(2)681DB250
250 1000 DE 36 x 82 4.2 6.3 111 83 ALS4(1)(2)102DE250
250 1000 DF 36 x 105 4.7 7.5 108 79 ALS4(1)(2)102DF250
250 1500 KE 51 x 82 6.2 8.2 83 64 ALS4(1)(2)152KE250
250 2200 KF 51 x 105 8.3 11.1 56 42 ALS4(1)(2)222KF250
250 3300 ND 77 x 75 8.5 9.7 52 42 ALS4(1)(2)332ND250
250 4700 MF 66 x 105 12.3 15.0 30 24 ALS4(1)(2)472MF250
250 4700 QC 90 x 67 10.9 16.3 42 30 ALS4(1)(2)472QC250
250 4700 QD 90 x 75 10.7 12.1 38 32 ALS4(1)(2)472QD250
250 6800 NF 77 x 105 12.1 13.4 30 25 ALS4(1)(2)682NF250
250 6800 QH 90 x 98 15.1 17.3 25 20 ALS4(1)(2)682QH250
250 10000 NP 77 x 146 17.5 19.5 19 16 ALS4(1)(2)103NP250
250 15000 QP 90 x 146 21.9 23.9 14 12 ALS4(1)(2)153QP250
250 15000 NT 77 x 220 29.2 33.0 12 10 ALS4(1)(2)153NT250
250 22000 QT 90 x 220 34.1 38.2 11 9 ALS4(1)(2)223QT250
350 220 DA 36 x 52 1.8 4.5 457 303 ALS4(1)(2)221DA350
350 330 DB 36 x 62 2.4 5.7 307 204 ALS4(1)(2)331DB350
350 470 DE 36 x 82 3.0 7.2 215 143 ALS4(1)(2)471DE350
350 680 DF 36 x 105 3.9 8.9 149 99 ALS4(1)(2)681DF350
350 1000 KE 51 x 82 5.0 10.0 113 78 ALS4(1)(2)102KE350
350 1500 KF 51 x 105 6.8 12.5 75 52 ALS4(1)(2)152KF350
350 2200 ND 77 x 75 8.3 13.7 66 49 ALS4(1)(2)222ND350
350 2200 MF 66 x 105 9.8 17.9 51 35 ALS4(1)(2)222MF350
350 2200 QC 90 x 67 9.1 16.4 74 52 ALS4(1)(2)222QC350
350 2200 QD 90 x 75 9.4 17.8 56 40 ALS4(1)(2)222QD350
350 3300 NF 77 x 105 11.7 19.7 41 30 ALS4(1)(2)332NF350
350 4700 QH 90 x 98 14.6 23.2 31 23 ALS4(1)(2)472QH350
350 4700 NP 77 x 146 15.7 23.6 27 20 ALS4(1)(2)472NP350
350 6800 QP 90 x 146 20.3 29.7 19 14 ALS4(1)(2)682QP350
350 6800 NT 77 x 220 25.4 35.7 23 17 ALS4(1)(2)682NT350
350 10000 QT 90 x 220 31.0 42.7 21 16 ALS4(1)(2)103QT350
400 220 DA 36 x 52 2.0 4.9 542 349 ALS4(1)(2)221DA400
400 220 DB 36 x 62 2.1 5.4 537 344 ALS4(1)(2)221DB400
400 470 DE 36 x 82 3.2 7.8 254 164 ALS4(1)(2)471DE400
400 470 DF 36 x 105 3.5 8.5 251 161 ALS4(1)(2)471DF400
400 680 KE 51 x 82 4.2 9.8 183 121 ALS4(1)(2)681KE400
400 1000 KF 51 x 105 5.6 12.3 124 81 ALS4(1)(2)102KF400
400 1500 ND 77 x 75 7.6 13.9 93 64 ALS4(1)(2)152ND400
400 2200 MF 66 x 105 9.7 18.1 60 41 ALS4(1)(2)222MF400
400 2200 QC 90 x 67 9.4 15.9 63 44 ALS4(1)(2)222QC400
400 2200 QD 90 x 75 10.0 17.5 67 47 ALS4(1)(2)222QD400
400 2200 NF 77 x 105 10.6 19.8 62 42 ALS4(1)(2)222NF400
400 3300 QH 90 x 98 13.6 23.4 44 31 ALS4(1)(2)332QH400
400 4700 NP 77 x 146 15.4 22.6 33 23 ALS4(1)(2)472NP400
400 6800 QP 90 x 146 20.0 28.3 23 17 ALS4(1)(2)682QP400
400 6800 NT 77 x 220 23.5 33.3 21 15 ALS4(1)(2)682NT400
400 10000 QT 90 x 220 29.0 40.3 18 14 ALS4(1)(2)103QT400
415 220 DA 36 x 52 2.0 5.0 530 331 ALS4(1)(2)221DA415
415 220 DB 36 x 62 2.1 5.4 524 325 ALS4(1)(2)221DB415
415 330 DE 36 x 82 2.8 7.1 349 217 ALS4(1)(2)331DE415
415 470 DF 36 x 105 3.5 8.7 245 152 ALS4(1)(2)471DF415
415 680 KE 51 x 82 4.4 9.9 180 115 ALS4(1)(2)681KE415
415 1000 KF 51 x 105 5.8 12.3 122 77 ALS4(1)(2)102KF415
415 1500 ND 77 x 75 7.6 13.8 95 65 ALS4(1)(2)152ND415
415 2200 MF 66 x 105 9.7 18.1 60 39 ALS4(1)(2)222MF415
415 2200 QC 90 x 67 9.4 15.8 61 43 ALS4(1)(2)222QC415
415 2200 QD 90 x 75 10.0 17.3 67 47 ALS4(1)(2)222QD415
415 2200 NF 77 x 105 10.7 19.7 61 41 ALS4(1)(2)222NF415
415 3300 QH 90 x 98 13.6 23.3 44 30 ALS4(1)(2)332QH415
415 3300 NP 77 x 146 14.2 23.6 40 27 ALS4(1)(2)332NP415
415 4700 QP 90 x 146 18.5 29.8 29 19 ALS4(1)(2)472QP415
415 6800 NT 77 x 220 23.0 32.5 21 14 ALS4(1)(2)682NT415
415 10000 QT 90 x 220 28.3 39.3 18 14 ALS4(1)(2)103QT415
450 150 DA 36 x 52 1.8 4.5 721 360 ALS4(1)(2)151DA450
450 150 DB 36 x 62 1.9 4.8 715 356 ALS4(1)(2)151DB450
450 220 DE 36 x 82 2.5 6.2 487 242 ALS4(1)(2)221DE450
450 330 DF 36 x 105 3.2 7.9 325 162 ALS4(1)(2)331DF450
450 470 KE 51 x 82 4.1 9.0 239 123 ALS4(1)(2)471KE450
450 680 KF 51 x 105 5.3 11.3 164 84 ALS4(1)(2)681KF450
450 1000 ND 77 x 75 7.0 13.2 125 69 ALS4(1)(2)102ND450
450 1500 MF 66 x 105 8.9 17.1 79 42 ALS4(1)(2)152MF450
450 1500 QC 90 x 67 8.7 15.3 78 57 ALS4(1)(2)152QC450
450 1500 QD 90 x 75 9.3 16.7 87 49 ALS4(1)(2)152QD450
450 1500 NF 77 x 105 9.8 18.7 80 43 ALS4(1)(2)152NF450
450 2200 QH 90 x 98 12.5 22.5 58 32 ALS4(1)(2)222QH450
450 2200 NP 77 x 146 13.1 22.9 54 29 ALS4(1)(2)222NP450
450 3300 NP 77 x 146 14.6 22.0 38 27 ALS4(1)(2)332NP450
450 3300 QP 90 x 146 14.2 28.9 37 20 ALS4(1)(2)332QP450
450 4700 NT 77 x 220 21.9 32.0 27 15 ALS4(1)(2)472NT450
450 6800 QT 90 x 220 23.5 39.2 19 15 ALS4(1)(2)682QT450
500 220 DA 36 x 52 2.1 4.3 1000 810 ALS4(1)(2)221DA500
500 220 DB 36 x 62 2.1 4.4 1000 808 ALS4(1)(2)221DB500
500 330 DE 36 x 82 2.6 5.5 670 540 ALS4(1)(2)331DE500
500 470 DF 36 x 105 3.2 6.4 470 380 ALS4(1)(2)471DF500
500 680 KE 51 x 82 4.7 8.8 338 270 ALS4(1)(2)681KE500
500 1000 KF 51 x 105 5.7 10.6 230 187 ALS4(1)(2)102KF500
500 1500 ND 77 x 75 8.0 13.2 160 130 ALS4(1)(2)152ND500
500 2200 NF 77 x 105 10.2 17.1 110 90 ALS4(1)(2)222NF500
500 3300 NP 77 x 146 13.1 20.2 82 68 ALS4(1)(2)332NP500
500 4700 NT 77 x 220 15.3 22.9 60 48 ALS4(1)(2)472NT500
500 1500 QC 90 x 67 8.4 14.0 160 130 ALS4(1)(2)152QC500
500 2200 QD 90 x 75 10.2 16.3 112 90 ALS4(1)(2)222QD500
500 3300 QH 90 x 98 13.1 20.3 75 60 ALS4(1)(2)332QH500
500 3300 QP 90 x 146 14.1 23.4 80 66 ALS4(1)(2)332QP500
500 6800 QT 90 x 220 20.0 29.3 41 34 ALS4(1)(2)682QT500
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

Series ALS40/41, +105°C




Marking method

ALS4 0 A 153 DA 025
Series Mounting Method Type of screw terminals Capacitance [µF] Casing Code Rated voltage [VDC]
Screw Terminal Aluminum Electrolytic

2 = Without screw
mounting
3 = Fastening screw

 See table

First two digits - capacity value
Third - the number of zeros

 See table 025=25
040 = 40
063 = 63
100 = 100
160 = 160
200 = 200		 250 = 250
350 = 350
400 = 400
415 = 415
450 = 450
500 = 500

Item Special features
Capacitance range 150 – 680,000 µF
Voltage range 25 – 500 VDC
Operating temperature -40 to +105°C
Storage temperature -55 to +105°C
Capacity tolerance ±20% at 100 Hz / +20°C
Life Time D (mm) UN i IR w +105°C (h) UN w +105°C (h)
36 6,000 10,000
51 7,000 11,000
66 8,000 13,000
77,90 9,000 15,000
Storage time 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
Norms IEC 60384–4 long

Conditions VDC [V]
25 40 63 100 200 250 350 400 415 450 500

Impact ≤ 30s without load
during 330s, 1,000 cycles at + 85 ° C

 28.75 46 72.45 115 230 287.5 385 440 456.5 495 550

Impact ≤ 500 ms, 100 cycles
at 20 ° C, randomly
during the life of the condenser

         350 400 500 520 530 550 600

VN VDC CN Casing  Dimensions Ripple current ESR Max Maximum Impedance Typ
100 Hz  20°C (µF) D x L (mm) 100 Hz 105°C (A) 10 kHz 105°C (A) 100 Hz 20°C (mΩ) 10 kHz20°C (mΩ)
25 15000 DA 36 x 52 6.9 7.3 24 20 ALS4(1)(2)153DA025
25 22000 DB 36 x 62 8.4 8.8 17 15 ALS4(1)(2)223DB025
25 33000 DE 36 x 82 11.1 11.7 11 10 ALS4(1)(2)333DE025
25 47000 DF 36 x 105 14.0 14.7 9 8 ALS4(1)(2)473DF025
25 68000 KE 51 x 82 12.0 12.2 13 12 ALS4(1)(2)683KE025
25 100000 KF 51 x 105 16.4 16.7 9 8 ALS4(1)(2)104KF025
25 150000 ND 77 x 75 13.7 13.8 13 13 ALS4(1)(2)154ND025
25 150000 MF 66 x 105 23.8 24.1 6 6 ALS4(1)(2)154MF025
25 150000 QD 90 x 75 18.7 18.8 10 10 ALS4(1)(2)154QD025
25 220000 QC 90 x 67 18.6 19.2 9 8 ALS4(1)(2)224QC025
25 220000 NF 77 x 105 22.3 22.4 8 7 ALS4(1)(2)224NF025
25 330000 QH 90 x 98 22.3 22.4 8 8 ALS4(1)(2)334QH025
25 330000 NP 77 x 146 31.0 31.1 5 5 ALS4(1)(2)334NP025
25 470000 QP 90 x 146 36.9 37.1 4 4 ALS4(1)(2)474QP025
25 470000 NT 77 x 220 38.9 39.8 4 4 ALS4(1)(2)474NT025
25 680000 QT 90 x 220 47.0 48.1 4 3 ALS4(1)(2)684QT025
40 10000 DA 36 x 52 6.6 6.9 23 19 ALS4(1)(2)103DA040
40 10000 DB 36 x 62 8.1 8.7 19 16 ALS4(1)(2)103DB040
40 15000 DE 36 x 82 10.8 11.6 13 10 ALS4(1)(2)153DE040
40 22000 DF 36 x 105 13.6 14.5 10 8 ALS4(1)(2)223DF040
40 33000 KE 51 x 82 11.7 12.0 13 12 ALS4(1)(2)333KE040
40 47000 KF 51 x 105 16.2 16.6 9 8 ALS4(1)(2)473KF040
40 68000 ND 77 x 75 13.9 14.0 13 13 ALS4(1)(2)683ND040
40 100000 MF 66 x 105 20.6 20.8 7 7 ALS4(1)(2)104MF040
40 100000 QC 90 x 67 17.7 18.5 10 9 ALS4(1)(2)104QC040
40 100000 QD 90 x 75 16.0 16.1 12 11 ALS4(1)(2)104QD040
40 100000 NF 77 x 105 22.4 22.7 7 7 ALS4(1)(2)104NF040
40 150000 QH 90 x 98 22.6 22.8 8 8 ALS4(1)(2)154QH040
40 150000 NP 77 x 146 31.3 31.6 5 5 ALS4(1)(2)154NP040
40 220000 QP 90 x 146 36.8 37.1 4 4 ALS4(1)(2)224QP040
40 220000 NT 77 x 220 37.7 39.2 4 4 ALS4(1)(2)224NT040
40 330000 QT 90 x 220 45.6 47.0 4 4 ALS4(1)(2)334QT040
63 3300 DA 36 x 52 5.5 6.2 38 30 ALS4(1)(2)332DA063
63 4700 DB 36 x 62 6.7 7.5 27 22 ALS4(1)(2)472DB063
63 6800 DE 36 x 82 8.9 10.0 19 15 ALS4(1)(2)682DE063
63 10000 DF 36 x 105 11.2 12.6 13 10 ALS4(1)(2)103DF063
63 15000 KE 51 x 82 10.7 11.2 16 15 ALS4(1)(2)153KE063
63 22000 KF 51 x 105 14.7 15.3 11 10 ALS4(1)(2)223KF063
63 22000 ND 77 x 75 14.6 15.1 14 12 ALS4(1)(2)223ND063
63 33000 MF 66 x 105 21.3 22.2 8 7 ALS4(1)(2)333MF063
63 33000 QC 90 x 67 18.1 20.1 10 8 ALS4(1)(2)333QC063
63 33000 QD 90 x 75 17.1 17.5 11 11 ALS4(1)(2)333QD063
63 47000 NF 77 x 105 20.7 21.1 9 8 ALS4(1)(2)473NF063
63 47000 QH 90 x 98 24.4 25.1 8 7 ALS4(1)(2)473QH063
63 68000 NP 77 x 146 29.1 29.8 6 6 ALS4(1)(2)683NP063
63 100000 QP 90 x 146 34.5 35.2 5 5 ALS4(1)(2)104QP063
63 100000 NT 77 x 220 36.7 38.8 4 4 ALS4(1)(2)104NT063
63 150000 QT 90 x 220 44.4 46.5 4 4 ALS4(1)(2)154QT063
100 1500 DA 36 x 52 3.9 4.5 79 62 ALS4(1)(2)152DA100
100 2200 DB 36 x 62 4.8 5.5 56 44 ALS4(1)(2)222DB100
100 3300 DE 36 x 82 6.4 7.4 37 29 ALS4(1)(2)332DE100
100 4700 DF 36 x 105 8.1 9.3 26 21 ALS4(1)(2)472DF100
100 6800 KE 51 x 82 8.0 8.4 32 28 ALS4(1)(2)682KE100
100 10000 KF 51 x 105 10.9 11.5 21 18 ALS4(1)(2)103KF100
100 15000 ND 77 x 75 9.7 9.9 28 26 ALS4(1)(2)153ND100
100 15000 MF 66 x 105 15.8 16.7 14 12 ALS4(1)(2)153MF100
100 15000 QD 90 x 75 12.9 13.4 20 18 ALS4(1)(2)153QD100
100 22000 QC 90 x 67 14.3 15.2 17 16 ALS4(1)(2)223QC100
100 22000 NF 77 x 105 15.5 16.0 15 13 ALS4(1)(2)223NF100
100 22000 QH 90 x 98 18.4 19.0 13 11 ALS4(1)(2)223QH100
100 33000 NP 77 x 146 21.6 22.2 10 10 ALS4(1)(2)333NP100
100 47000 QP 90 x 146 25.9 26.5 9 8 ALS4(1)(2)473QP100
100 47000 NT 77 x 220 35.4 36.6 7 6 ALS4(1)(2)473NT100
100 100000 QT 90 x 220 37.2 37.9 6 6 ALS4(1)(2)104QT100
200 680 DA 36 x 52 2.9 4.0 195 154 ALS4(1)(2)681DA200
200 680 DB 36 x 62 3.3 4.6 188 147 ALS4(1)(2)681DB200
200 1000 DE 36 x 82 4.3 6.1 128 100 ALS4(1)(2)102DE200
200 1500 DF 36 x 105 5.6 7.8 86 67 ALS4(1)(2)152DF200
200 2200 KE 51 x 82 6.8 8.0 71 58 ALS4(1)(2)222KE200
200 3300 KF 51 x 105 9.1 10.9 47 38 ALS4(1)(2)332KF200
200 4700 ND 77 x 75 8.7 9.4 48 42 ALS4(1)(2)472ND200
200 6800 MF 66 x 105 12.9 14.5 27 23 ALS4(1)(2)682MF200
200 6800 QC 90 x 67 11.8 15.9 37 28 ALS4(1)(2)682QC200
200 6800 QD 90 x 75 10.9 11.7 36 32 ALS4(1)(2)682QD200
200 6800 NF 77 x 105 13.4 14.8 29 25 ALS4(1)(2)682NF200
200 10000 QH 90 x 98 15.4 16.6 23 20 ALS4(1)(2)103QH200
200 10000 NP 77 x 146 19.3 21.5 19 16 ALS4(1)(2)103NP200
200 15000 QP 90 x 146 24.2 26.5 14 12 ALS4(1)(2)153QP200
200 22000 NT 77 x 220 29.5 31.6 11 10 ALS4(1)(2)223NT200
200 33000 QT 90 x 220 34.3 36.4 10 8 ALS4(1)(2)333QT200
250 470 DA 36 x 52 2.5 3.9 235 174 ALS4(1)(2)471DA250
250 680 DB 36 x 62 3.2 4.8 164 122 ALS4(1)(2)681DB250
250 1000 DE 36 x 82 4.2 6.3 111 83 ALS4(1)(2)102DE250
250 1000 DF 36 x 105 4.7 7.5 108 79 ALS4(1)(2)102DF250
250 1500 KE 51 x 82 6.2 8.2 83 64 ALS4(1)(2)152KE250
250 2200 KF 51 x 105 8.3 11.1 56 42 ALS4(1)(2)222KF250
250 3300 ND 77 x 75 8.5 9.7 52 42 ALS4(1)(2)332ND250
250 4700 MF 66 x 105 12.3 15.0 30 24 ALS4(1)(2)472MF250
250 4700 QC 90 x 67 10.9 16.3 42 30 ALS4(1)(2)472QC250
250 4700 QD 90 x 75 10.7 12.1 38 32 ALS4(1)(2)472QD250
250 6800 NF 77 x 105 12.1 13.4 30 25 ALS4(1)(2)682NF250
250 6800 QH 90 x 98 15.1 17.3 25 20 ALS4(1)(2)682QH250
250 10000 NP 77 x 146 17.5 19.5 19 16 ALS4(1)(2)103NP250
250 15000 QP 90 x 146 21.9 23.9 14 12 ALS4(1)(2)153QP250
250 15000 NT 77 x 220 29.2 33.0 12 10 ALS4(1)(2)153NT250
250 22000 QT 90 x 220 34.1 38.2 11 9 ALS4(1)(2)223QT250
350 220 DA 36 x 52 1.8 4.5 457 303 ALS4(1)(2)221DA350
350 330 DB 36 x 62 2.4 5.7 307 204 ALS4(1)(2)331DB350
350 470 DE 36 x 82 3.0 7.2 215 143 ALS4(1)(2)471DE350
350 680 DF 36 x 105 3.9 8.9 149 99 ALS4(1)(2)681DF350
350 1000 KE 51 x 82 5.0 10.0 113 78 ALS4(1)(2)102KE350
350 1500 KF 51 x 105 6.8 12.5 75 52 ALS4(1)(2)152KF350
350 2200 ND 77 x 75 8.3 13.7 66 49 ALS4(1)(2)222ND350
350 2200 MF 66 x 105 9.8 17.9 51 35 ALS4(1)(2)222MF350
350 2200 QC 90 x 67 9.1 16.4 74 52 ALS4(1)(2)222QC350
350 2200 QD 90 x 75 9.4 17.8 56 40 ALS4(1)(2)222QD350
350 3300 NF 77 x 105 11.7 19.7 41 30 ALS4(1)(2)332NF350
350 4700 QH 90 x 98 14.6 23.2 31 23 ALS4(1)(2)472QH350
350 4700 NP 77 x 146 15.7 23.6 27 20 ALS4(1)(2)472NP350
350 6800 QP 90 x 146 20.3 29.7 19 14 ALS4(1)(2)682QP350
350 6800 NT 77 x 220 25.4 35.7 23 17 ALS4(1)(2)682NT350
350 10000 QT 90 x 220 31.0 42.7 21 16 ALS4(1)(2)103QT350
400 220 DA 36 x 52 2.0 4.9 542 349 ALS4(1)(2)221DA400
400 220 DB 36 x 62 2.1 5.4 537 344 ALS4(1)(2)221DB400
400 470 DE 36 x 82 3.2 7.8 254 164 ALS4(1)(2)471DE400
400 470 DF 36 x 105 3.5 8.5 251 161 ALS4(1)(2)471DF400
400 680 KE 51 x 82 4.2 9.8 183 121 ALS4(1)(2)681KE400
400 1000 KF 51 x 105 5.6 12.3 124 81 ALS4(1)(2)102KF400
400 1500 ND 77 x 75 7.6 13.9 93 64 ALS4(1)(2)152ND400
400 2200 MF 66 x 105 9.7 18.1 60 41 ALS4(1)(2)222MF400
400 2200 QC 90 x 67 9.4 15.9 63 44 ALS4(1)(2)222QC400
400 2200 QD 90 x 75 10.0 17.5 67 47 ALS4(1)(2)222QD400
400 2200 NF 77 x 105 10.6 19.8 62 42 ALS4(1)(2)222NF400
400 3300 QH 90 x 98 13.6 23.4 44 31 ALS4(1)(2)332QH400
400 4700 NP 77 x 146 15.4 22.6 33 23 ALS4(1)(2)472NP400
400 6800 QP 90 x 146 20.0 28.3 23 17 ALS4(1)(2)682QP400
400 6800 NT 77 x 220 23.5 33.3 21 15 ALS4(1)(2)682NT400
400 10000 QT 90 x 220 29.0 40.3 18 14 ALS4(1)(2)103QT400
415 220 DA 36 x 52 2.0 5.0 530 331 ALS4(1)(2)221DA415
415 220 DB 36 x 62 2.1 5.4 524 325 ALS4(1)(2)221DB415
415 330 DE 36 x 82 2.8 7.1 349 217 ALS4(1)(2)331DE415
415 470 DF 36 x 105 3.5 8.7 245 152 ALS4(1)(2)471DF415
415 680 KE 51 x 82 4.4 9.9 180 115 ALS4(1)(2)681KE415
415 1000 KF 51 x 105 5.8 12.3 122 77 ALS4(1)(2)102KF415
415 1500 ND 77 x 75 7.6 13.8 95 65 ALS4(1)(2)152ND415
415 2200 MF 66 x 105 9.7 18.1 60 39 ALS4(1)(2)222MF415
415 2200 QC 90 x 67 9.4 15.8 61 43 ALS4(1)(2)222QC415
415 2200 QD 90 x 75 10.0 17.3 67 47 ALS4(1)(2)222QD415
415 2200 NF 77 x 105 10.7 19.7 61 41 ALS4(1)(2)222NF415
415 3300 QH 90 x 98 13.6 23.3 44 30 ALS4(1)(2)332QH415
415 3300 NP 77 x 146 14.2 23.6 40 27 ALS4(1)(2)332NP415
415 4700 QP 90 x 146 18.5 29.8 29 19 ALS4(1)(2)472QP415
415 6800 NT 77 x 220 23.0 32.5 21 14 ALS4(1)(2)682NT415
415 10000 QT 90 x 220 28.3 39.3 18 14 ALS4(1)(2)103QT415
450 150 DA 36 x 52 1.8 4.5 721 360 ALS4(1)(2)151DA450
450 150 DB 36 x 62 1.9 4.8 715 356 ALS4(1)(2)151DB450
450 220 DE 36 x 82 2.5 6.2 487 242 ALS4(1)(2)221DE450
450 330 DF 36 x 105 3.2 7.9 325 162 ALS4(1)(2)331DF450
450 470 KE 51 x 82 4.1 9.0 239 123 ALS4(1)(2)471KE450
450 680 KF 51 x 105 5.3 11.3 164 84 ALS4(1)(2)681KF450
450 1000 ND 77 x 75 7.0 13.2 125 69 ALS4(1)(2)102ND450
450 1500 MF 66 x 105 8.9 17.1 79 42 ALS4(1)(2)152MF450
450 1500 QC 90 x 67 8.7 15.3 78 57 ALS4(1)(2)152QC450
450 1500 QD 90 x 75 9.3 16.7 87 49 ALS4(1)(2)152QD450
450 1500 NF 77 x 105 9.8 18.7 80 43 ALS4(1)(2)152NF450
450 2200 QH 90 x 98 12.5 22.5 58 32 ALS4(1)(2)222QH450
450 2200 NP 77 x 146 13.1 22.9 54 29 ALS4(1)(2)222NP450
450 3300 NP 77 x 146 14.6 22.0 38 27 ALS4(1)(2)332NP450
450 3300 QP 90 x 146 14.2 28.9 37 20 ALS4(1)(2)332QP450
450 4700 NT 77 x 220 21.9 32.0 27 15 ALS4(1)(2)472NT450
450 6800 QT 90 x 220 23.5 39.2 19 15 ALS4(1)(2)682QT450
500 220 DA 36 x 52 2.1 4.3 1000 810 ALS4(1)(2)221DA500
500 220 DB 36 x 62 2.1 4.4 1000 808 ALS4(1)(2)221DB500
500 330 DE 36 x 82 2.6 5.5 670 540 ALS4(1)(2)331DE500
500 470 DF 36 x 105 3.2 6.4 470 380 ALS4(1)(2)471DF500
500 680 KE 51 x 82 4.7 8.8 338 270 ALS4(1)(2)681KE500
500 1000 KF 51 x 105 5.7 10.6 230 187 ALS4(1)(2)102KF500
500 1500 ND 77 x 75 8.0 13.2 160 130 ALS4(1)(2)152ND500
500 2200 NF 77 x 105 10.2 17.1 110 90 ALS4(1)(2)222NF500
500 3300 NP 77 x 146 13.1 20.2 82 68 ALS4(1)(2)332NP500
500 4700 NT 77 x 220 15.3 22.9 60 48 ALS4(1)(2)472NT500
500 1500 QC 90 x 67 8.4 14.0 160 130 ALS4(1)(2)152QC500
500 2200 QD 90 x 75 10.2 16.3 112 90 ALS4(1)(2)222QD500
500 3300 QH 90 x 98 13.1 20.3 75 60 ALS4(1)(2)332QH500
500 3300 QP 90 x 146 14.1 23.4 80 66 ALS4(1)(2)332QP500
500 6800 QT 90 x 220 20.0 29.3 41 34 ALS4(1)(2)682QT500
mažiau
Skaityk daugiau
Komentarai (0)
