Gamintojas: CAMDENBOSS

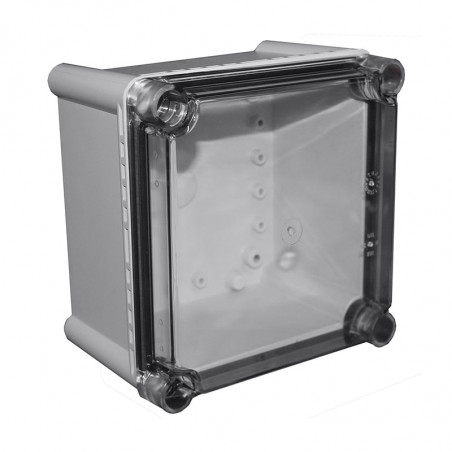

X7 serija nuo polikarbonato (pasirinktinai ABS)

  • Screw type lid with knock out base
  • Moulded in high quality polycarbonate
  • PCB pillars in the base for PCB mounting
  • Gasket supplied
  • Clear lid option avaliable
  • Captive, polyamide screws included
  • X7 series has been designed to meet the requirements of IP66/67
  • IK07/08 impact tested


Specification

  • Materials: Polycarbonate UL94-V0
  • Operating temperature: -40 ° C to + 120 ° C (+85° C for ABS)
  • Protection class: X7 series has been designed to meet the requirements of IP66/67, IK07/08
  • Standard colours: Grey, transparent lid option
  • Standard unit includes: Box, lid, 4 screws
  • Available accessories: Mount plates, vents, wall mounts




Solid lid Clear lid Lenght Width Height
CHDX7-221 CHDX7-221C 190 mm 190 mm 130 mm
CHDX7-222 CHDX7-222C 380 mm 190 mm 130 mm
CHDX7-223 CHDX7-223C 380 mm 190 mm 180 mm
CHDX7-224 CHDX7-224C 380 mm 280 mm 180 mm
CHDX7-225 CHDX7-225C 430 mm 330 mm 180 mm
CHDX7-226 CHDX7-226C 280 mm 190 mm 130 mm
CHDX7-227 CHDX7-227C 280 mm 190 mm 180 mm
CHDX7-228 CHDX7-228C 280 mm 280 mm 130 mm
CHDX7-229 CHDX7-229C 340 mm 280 mm 130 mm
CHDX7-230 CHDX7-230C 380 mm 280 mm 130 mm
CHDX7-231 CHDX7-231C 560 mm 280 mm 130 mm
CHDX7-232 CHDX7-232C 560 mm 380 mm 180 mm

mažiau
