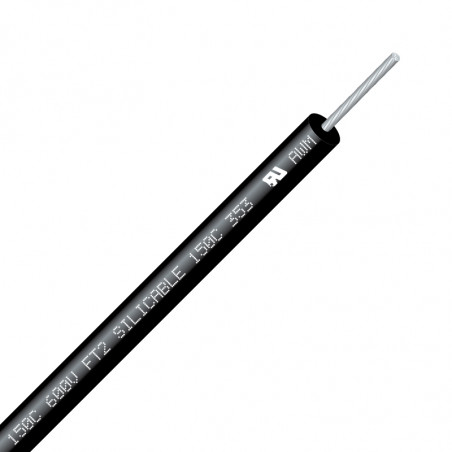

SILICABLE® 150 °C UL cUL

Characteristics

• Continuous operating temperatures: -60 °C to +150 °C.
• Good resistance to thermal shock and UV
• Rated voltage: as per style no
• Test voltage: 10 x Rated voltage.

Standard products

• All colours including two-coloured.
• Stranding of conducting cores: contact us.

Approvals - standards

• UL approval as per standard UL 758 - File no.: E101965.
• cUL approval (CSA) as per standard C22.2 No. 210 - File no.: E101965 (LL84986).
• “Horizontal flame test” as per UL approval.
• “FT2 flame rating” as per cUL approval.
• Halogen-free: IEC 60754-1 / EN 60754-1.

Applications

• Cabling for household electrical heating appliances, rotating machines, lighting.
• Industrial cabling in hot atmospheres.

Options

• Other nominal cross-sections: contact us
• Vertical flame test VW1 for style no.3134: contact us.
• Other style nos. available: style 3113, 3136, 3140, 3141, 3142, 3754.

1 • Bare copper, tin-plated, nickel-plated or silver-plated core.
2 • Insulation: Silicone rubber.
Style  3099 3132 3123 3133 3134
105 °C -300 V(cUL 600V) 105 °C - 300 V 105 °C -600 V 105 °C -600 V 105 °C -600 V
Nominal cross-section Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter*
AWG [mm2] [mm] [mm] [mm] [mm] [mm]
26 0.13 – – 0.38 1.2 0.76 2.0 0.76 2.0 – –
24 0.22 – – 0.38 1.4 0.76 2.1 0.76 2.1 – –
22 0.34 – – 0.38 1.55 0.76 2.35 0.76 2.35 – –
– 0.5 – – 0.38 1.7 0.76 2.5 0.76 2.5 – –
20 0.6 0.76 2.5 0.38 1.75 0.76 2.5 0.76 2.5 – –
– 0.75 0.76 2.7 0.38 1.9 0.76 2.7 0.76 2.7 – –
18 0.93 0.76 2.8 0.38 2.0 0.76 2.8 0.76 2.7 0,76 2,7
– 1 0.76 2.9 0.38 2.1 0.76 2.8 0.76 2.8 0,76 2,9
16 1.34 0.76 3.1 0.38 2.3 0.76 3.0 0.76 3.1 0,76 3,1
– 1.5 0.76 3.2 0.38 2.4 0.76 3.2 0.76 3.2 0,76 3,2
14 – – – 0.38 2.65 – – – – 0,76 3,6
– 2.5 – – 0.38 2.8 – – – – 0,76 3,6
12 – – – 0.38 3.2 – – – – 0,76 4
– 4 – – 0.38 3.4 – – – – 0,76 4,2
10 – – – 0.38 3.8 – – – – – –
– 6 – – 0.38 3.9 – – – – – –
8 – – – 0.38 4.6 – – – – – –
– 10 – – 0.38 5.2 – – – – – –
6 – – – 0.38 5.9 – – – – – –
– 16 – – 0.38 6.3 – – – – – –
4 – – – 0.38 7.3 – – – – – –
– 25 – – 0.38 7.8 – – – – – –
2 35 – – 0.38 8.9 – – – – – –
1 – – – 0.38 10.1 – – – – – –
– 50 – – 0.38 10.5 – – – – – –
1/0 – – – 0.38 1 1.2 – – – – – –
2/0 70 – – 0.38 12.3 – – – – – –
3/0 – – – 0.38 13.9 – – – – – –
– 95 – – 0.38 14.1 – – – – – –
4/0 – – – 0.38 15.5 – – – – – –
– 120 v – 0.38 15.8 – – – – – –
Conducting metal BCD BCDEFG BCDEFG BCDEFG BCDEG


Style  3137 3138 3529 3536 3580
105 °C -600 V 105 °C - 600 V 105 °C -600 V 105 °C -600 V 105 °C -600 V(cUL 600V)
Nominal cross-section Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter*
AWG [mm2] [mm] [mm] [mm] [mm] [mm]
26 0.13 1.14 2.8 – – 0.76 2.0 – – 1.14 2.8
24 0.22 1.14 2.9 – – 0.76 2.1 – – 1.14 2.9
22 0.34 1.14 3.05 – – 0.76 2.35 – – 1.14 3.05
– 0.5 1.14 3.2 – – 0.76 2.5 0.76 2.5 1.14 3.2
20 0.6 1.14 3.4 – – 0.76 2.5 0.76 2.5 1.14 3.4
– 0.75 – – – – 0.76 2.7 0.76 2.7 1.14 3.5
18 0.93 – – 1.14 3.6 0.76 2.8 0.76 2.8 1.14 3.6
– 1 – – 1.14 3.7 0.76 2.9 0.76 2.9 1.14 3.7
16 1.34 – – 1.14 3.8 0.76 3.1 0.76 3.1 1.14 3.8
– 1.5 – – 1.14 4.0 0.76 3.2 0.76 3.2 1.14 4.0
14 – – – 1.14 4.3 0.76 3.5 0.76 3.5 1.14 4.3
– 2.5 – – 1.14 4.4 0.76 3.6 0.76 3.6 1.14 4.4
12 – – – 1.14 4.6 0.76 4.0 0.76 4.0 1.14 4.6
– 4 – – 1.14 4.9 0.76 4.2 0.76 4.2 1.14 4.9
10 – – – 1.14 5.3 1.14 5.3 1.14 5.3 1.14 5.3
– 6 – – 1.14 5.6 1.14 5.6 1.14 5.5 1.14 5.6
8 – – – – – 1.52 6.8 1.52 6.8 1.52 6.8
– 10 – – – – 1.52 7.5 1.52 7.6 1.52 7.4
6 – – – – – 1.52 8.4 1.52 8.4 1.52 8.4
– 16 – – – – 1.52 9.0 1.52 9.0 1.52 9.0
4 – – – – – 1.52 10.2 1.52 10.2 1.52 10.2
– 25 – – – – 1.52 10.6 1.52 10.6 1.52 10.6
2 35 – – – – 1.52 11.4 1.52 11.4 1.52 11.4
1 – – – – – 2.03 13.9 2.03 13.9 2.03 13.9
– 50 – – – – 2.03 14.6 2.03 14.6 2.03 14.6
1/0 – – – – – 2.03 15.0 2.03 15.0 2.03 15.0
2/0 70 – – – – 2.03 15.9 2.03 15.9 2.03 15.9
3/0 – – – – – 2.03 17.6 2.03 17.6 2.03 17.6
– 95 – – – – 2.03 17.8 2.03 17.8 2.03 17.8
4/0 – – – – – 2.03 19.1 2.41 19.9 2.03 19.1
– 120 – – – – 2.03 19.5 2.41 20.3 2.03 19.5
250MCM – – – – – 2.41 20.1 2.41 20.1 2.41 20.1
– 150 – – – – 2.41 20.8 2.41 20.8 2.41 20.8
300MCM – – – – – 2.41 23.0 2.41 23.0 2.41 23.0
350MCM 185 – – – – 2.41 24.0 2.41 24.0 2.41 24.0
400MCM – – – – – 2.41 25.0 2.41 25.0 2.41 25.0
– 240 – – – – 2.41 26.3 2.41 26.3 2.41 26.3
500MCM – – – – – 2.41 27.6 – – 2.41 27.6
– 300 – – – – 2.79 30.1 – – – –
600MCM – – – – – 2.79 30.7 – – – –
700MCM – – – – – 2.79 32.6 – – – –
750MCM 400 – – – – 2.79 33.6 – – – –
Conducting metal BCDEF BCDEF BCDEFG BCDEFG BCDEFG

* The diameter is provided for information purposes as it may vary depending on the stranding of the core. Only the average thickness of insulation should be taken into account.

KEY

Conducting metal
B Tin-plated coppe
B* Tin-plated copper (Ø > 0.38 mm)
C Nickel-plated copper
D Silver-plated copper
E Nickel
F Bare copper
F* Bare copper (Ø > 0.38 mm)
G Nickel-plated copper 27 %



AWM I A     Internal wiring, not subject to mechanical abuse
AWM I A/B    Internal wiring
AWM II A/B   External or Internal wiring
NS   Not Specified
VNS   Voltage Not Specified
