Siligaine 15C10 nuo -60 ° C iki + 250 ° C (H ir C klasė)
  • Siligaine 15C10 nuo -60 ° C iki + 250 ° C (H ir C klasė)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: OMERIN

Siligaine 15C10 nuo -60 ° C iki + 250 ° C (H ir C klasė)

SILIGAINE® 15C10 -60 °C to +250 °C Classes H and C

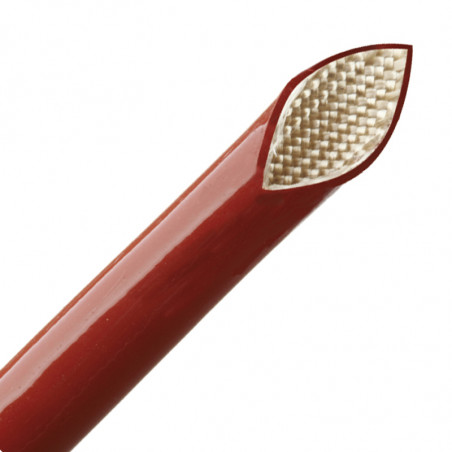

15C10 - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV.
• Good resistance to common chemical environments.
• Compatible with most impregnation varnishes class H
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 10 kV.

Standard products
• Colour : brick red.

Packaging
• Diameters from 0.5 to 3.5 mm: 200 m rolls.
• Diameters from 4 to 5 mm: 100 m rolls.
• Diameters from 6 to 10 mm: 100 m spools
• Diameters from 12 to 22 mm: 50 m spools.
• Diameter 25 mm: 25 m rolls.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 400 to 402.

Applications
• Internal cabling for class H and C rotating machines (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 15C10
Nominal value (mm) Tolerance (mm) Approximate wall thickness (mm) Approximate linear weight (kg/km)
0.5 ±0.15 0.60 4.0
0.8 ±0.15 0.60 4.8
1 ±0.20 0.60 5.4
1.5 ±0.20 0.60 6.9
2 ± 0.20 0.60 8.5
2.5 ± 0.20 0.60 10.3
3 ± 0.20 0.60 12.1
3.5 ± 0.25 0.60 14.0
4 ± 0.25 0.70 16.0
4.5 ± 0.25 0.70 18.1
5 ± 0.25 0.70 20.3
6 ± 0.25 0.70 25.1
7 ± 0.25 0.70 30.2
8 ± 0.25 0.70 35.7
9 ± 0.50 0.90 41.6
10 ± 0.50 0.90 48.0
12 ± 0.50 0.90 67.5
14 ± 1.0 1.00 100
16 ± 1.0 1.20 130
18 ± 1.0 1.20 157
20 ± 1.0 1.30 181
22 ± 1.0 1.30 203
25 ± 1.0 1.40 229
