Gamintojas: FRER

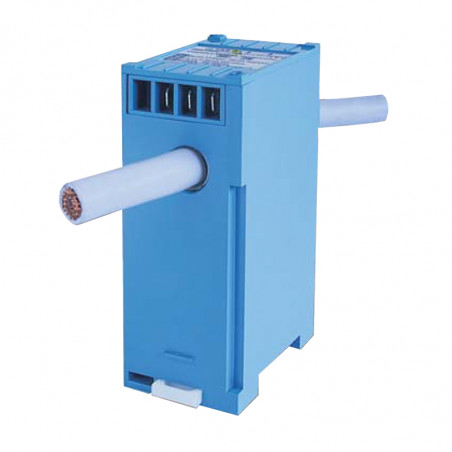

Srovės transformatoriai su keitikliu

Multirange c.t. With 4-20ma output series MAC…/MAT…

Multirange current transformers, with loop-powered 4…20mA output (also called “pas-sive”), are innovative products which permit to get a current measurement directly on a PLC or an acquisition system, without interposition of separated transducers and without auxiliary power connections. The electronic circuits, to transduce the measure and to generate the output signal, are actually integrated in the transformer housing, together with a miniature switch used to select one of the available ranges , and are powered with the same wires of the output. This means a great costs reduction, a very simple wiring and a generally improved relia-bility..

In case it is necessary to measure currents with distorted waveforms, it is optionally available the version with TRMS measurement (add an “R” before the “G” in the ordering code).

Technical data

Nominal current In 5-6000A
Nominal value 4-20 mA
See graph 0-1100 Ω
From current loop 10-32 Vdc
Accuracy class 1
Response time <200msec
Reference frequency 50 -60 Hz
Voltage 0,72 kV
Test voltage 3kV x 50Hz (60sek.)
Protection degree IP 20
Insulation classe E
Operating temperature -25 +50 oC
Storage temperature -40 +50 oC
Integrated secondary terminals 6 mm2
Safety factor N<5
Rated dynamic current (I dyn) 2.5 x I th
Manufactured according to EN 60044-1
EN 60688
Thermoplastic material UL94-V0

Chart Wiring diagram


MULTIRANGE
C.T. WITH
4-20mA
OUTPUT		 MAC021XXXG42 MAC017XXXG42 MAC032XXXG42 MAC040XXXG42 M AT061XXXG42 MAT 101XXXG42
CODE

MAC021XXXG42

MAC017XXXG42

MAC032XXXG42

MAC040XXXG42

M AT061XXXG42

MAT 101XXXG42
CABLE Ø 21 mm Ø 17 mm Ø 23 mm Ø 32 mm Ø 51 mm
BAR DIM. 20 x 10 mm 15x5 mm 32 x 10 mm 40 x 10 mm 61 x 31 mm 101 x 55 mm
FIXING D - 1 - P D - 1 - P D - I - P D - I - P I I
C.T. WIDTH 70 mm 56 mm 56 mm 70 mm 90 mm 130 mm
MIN. INTERAXIS 46 mm 36,5 mm 45 mm 56 mm 68 mm 115 mm
PORTATE SELEZIONABILI- SELECTABLE RANGE
5 A •
6 A •
7,5 A •
10 A •
15 A •
20 A • •
25 A •
30 A • •
40 A   •
50 A   • •
60 A   • •
75 A     •
80 A   •
100 A   • • •
120 A   •   •
125 A     •
150 A     • •
200 A     • • •
250 A     • •
300 A     • • •
400 A       • • •
500 A       • •
600 A       • • •
750 A
800 A         • •
1000 A         • •
1200 A         • •
1250 A
1500 A
1600 A           •
2000 A           •
2400 A           •
2500 A
3000 A
4000 A
5000 A
6000 A

MULTIRANGE
C.T. WITH
4-20mA
OUTPUT		 MAT 127XXXG42 MAT 128XXXG42 MAT129XXXG42 MAT165XXXG42 MAT225XXXG42
CODE

MAT 127XXXG42

MAT 128XXXG42

MAT129XXXG42

MAT165XXXG42

MAT225XXXG42
CABLE
BAR DIM. 127x 55 mm 127 x 85 mm 127 x 105 mm 165 x 127 mm 225 x 127 mm
FIXING B I I I I
C.T. WIDTH 185 mm 185 mm 185 mm 308 mm 368 mm
MIN. INTERAXIS 156 mm 156 mm 156 mm 238 mm 298 mm
PORTATE SELEZIONABILI- SELECTABLE RANGE
5 A
6 A
7,5 A
10 A
15 A
20 A
25 A
30 A
40 A
50 A
60 A
75 A
80 A
100 A
120 A
125 A
150 A
200 A
250 A
300 A
400 A
500 A •
600 A •
750 A •
800 A
1000 A • • • • •
1200 A   • • • •
1250 A •
1500 A • • • • •
1600 A
2000 A • • • • •
2400 A
2500 A • • • • •
3000 A • • • • •
4000 A   • • • •
5000 A   • • • •
6000 A   • • • •

P = PIEDINI - FIXING FEETS
B = BRIGLIA ANCORAGGIO SU BARRA PRIMARIO - BUSBAR FIXING
D = BINARIO DIN EN 50022 - DIN RAIL EN50022
I = SISTEMA INTEGRATO - BUILT-IN FIXING SYSTEM



A.C. CURRENT TRANSDUCERS WITH INTEGRATED C.T.

These transducers, with integrated current transformer, are suitable to measure the rms value of currents with sinusoidal undistorted waveforms or, for the TRMS types only, also with distorted waveforms; in this case the additional error is 0.5% for crest factor < 3 and 1% for crest factor < 7. The outputs are load independent d.c. current or voltage, propor-tional to the input variable.



Technical data

Outputs
Nominal value (maximum load)

 0-1mA(15kΩ); 0-5mA(3kΩ); 0-20mA(750Ω);
4-20mA (750Ω); 0-10V (>2kΩ)

Aux. supply voltage

 115-230 Va.c
    24V a.c; 48Va.c; 400Va.c;
24V d.c; 48V d.c; 110V d.c;
220Vd.c; 20-60Va.c/d.c;
80-260V a.c/d.c.
Accuracy class 1
Input range 5..120%  In
Response time <200 ms
Continuous overload 2x In
Short-term overloa 20 x In
Reference frequency 50-60 Hz
Operating temperature -10 +50 oC
Storage temperature -30 +70 oC
According to EN 60688
Thermoplastic material UL94-V0
Test voltage 2kV, 50Hz, 60sec
Surge test 5kV 1.2/50 µs
Chart Wiring diagram
Przekładniki prądowe ze zintegrowanym przetwornikiem wymiar Przekładniki prądowe ze zintegrowanym przetwornikiem schemat podłaczenia

Range RMS TRMS
5A

MCOEAQ005

MCOEAR005
10A

MCOEAQ010

MCOEAR010
15A

MCOEAQ015

MCOEAR015
20A

MCOEAQ020

MCOEAR020
25A

MCOEAQ025

MCOEAR025
30A

MCOEAQ030

MCOEAR030
40A

MCOEAQ040

MCOEAR040
50A

MCOEAQ050

MCOEAR050
60A

MCOEAQ060

MCOEAR060
80A

MCOEAQ080

MCOEAR080
100A

MCOEAQ100

MCOEAR100
