Gamintojas: ELEQ

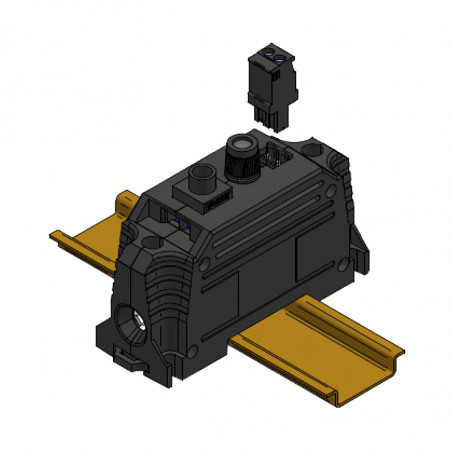

Srovės transformatoriai su įtampos matavimu, montavimas ant DIN bėgelio

For measuring electrical power, both voltage and current values are required from each phase. In electrical connecting boxes etc. there is usually insufficient room to place current transformers and terminals. The ELEQ Power Sensor combines three functions in one product: the railterminal, the current transformer and the fuse-terminal. The use of the ELEQ Power Sensor results in less wiring and therefore lower installation costs.

Properties:
• Railterminal with integrated current transformer and fused terminal
• Saves space, time and money
• Avoids installation mistakes
• Specially developed for power measurement up to 64 A
• Current ratios 16/1, 35/1 and 64/1A
• Breaking capacity 70kA@400V/50Hz



Description Class Burden1) Article nr.
16/1 3 0,1VA 5VCT01
35/1 1 0,2VA 5VCT02
64/1 0,5 0,2VA 5VCT03

1) Ext. cable losses= 0,014VA/m (2,5mm2)
