EX pavojaus signalai

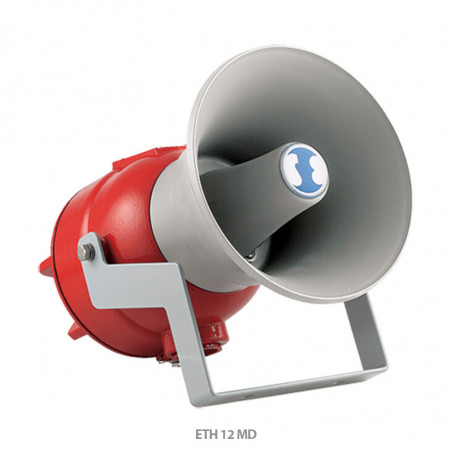

Multitone Electronic Siren ETH12MD series

Explosion-proof electronic sirens for use
in Group II areas, Zones 1, 2, and 21, 22
explosive atmospheres.

• Voltages available: 12/24V ACDC, 110V-240V AC
• Temperature range of -50^oC… +50^oC
• Protection: IP65
• Numbers of tones: 4
• audible sound of 91…109 dB

Multitone Electronic Siren ETH20MD series:

Explosion-proof electronic sirens for use
in Group II areas, Zones 1, 2, and 21, 22
explosive atmospheres.

• Voltages available: 12/24V ACDC, 110V-240V AC
• Temperature range of -50^oC… +50^oC
• Protection: IP65
• Numbers of tones: 32
• audible sound of 101…112 dB

Explosion-safe Alarm/Melody Hybrid Annunciator LKEHFE/EXN series

• Suitable for Zone 2 and Zone 22
• Protection Rating of IP65
• Adjustable audible sound (dB at 1m) of 105dB
• Temperature range -10^oC … +50^oC
• Input voltage range of 24V DC
• 32 sounds can be played using the binary input mode; 8 sounds can be played using the bit input mode
• Field programmable with an SD card, using MP3 technology
• diameter 100mm
• The super-bright 100mm in diameter LED is visible from a far distance
• The body is made of Acrylonitrile-Ethylene-Styrene material for weather resistance

Explosion-safe Melody/Alarm Horn EHS-EX/ EHV-EX

EHS-EX

• OPERATING VOLTAGES 12-24V DC
• Explosion-Safe for gas and dust, Suitable for Zone 2 and Zone 22.
• Protection Rating IP65
• CE II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T85oC Dc IP65 94/9/EC (ATEX)
• EHS-EX comes with 32 preloaded melody and alarm sounds
• adjustable volume up to 110dB (1m).
• Robust, indoor and outdoor use with vibration resistance up to 4.5G.
• Temperature range -20^oC - +50^oC

• OPERATING VOLTAGES 12-24V DC
• Protection Rating IP65
• CE II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T85oC Dc IP65 94/9/EC (ATEX)
• Comes with 63 preloaded crisp and clear melody and alarm sounds
• adjustable volume up to 105dB (1m).
• EHV-EX off ers a fi eld-programmable MP3 function with a maximum of 220 sec. of recording
• time (@ 64bps) and an adjustable volume up to 105dB (@ 1m).
• Robust, indoor and outdoor use with vibration resistance up to 4.5G.
• Temperature range -20^oC - +50^oC

Explosion-proof electric motor siren series ETS30/100dB

• Voltages available: 12, 24, 110, 240 V AC/DC,
• Temperature range of -50^oC … +50^oC,
• Protection IP66,
• continuous tone,
• 1 min. ON, 10 min. OFF
• audible sound of 100 dB.

Explosion-proof electric motor siren series ETS60/109DB

• Voltages available 12, 24, 110, 240 V AC/DC,
• Temperature range of -50^oC … +50^oC,
• Protection IP66,
• continuous tone,
• 1 min. ON, 10 min. OFF
• audible sound of 109 dB

Explosion-proof electric motor siren series ETS60/114DB

• Voltages available 12, 24, 110, 240 V AC/DC,
• Temperature range of -50^oC … +50^oC,
• protection IP66,
• continuous tone
• 1 min. ON, 10 min. OFF
• audible sound of 114 dB.

Explosion-proof electromechanical siren series Ex 055 MCL – Ex055 MCT

Technical data:

• audible sound of max. 92 dB
• continuous tone
• Protection: IP66
• Voltages available 12V, 24V, 48V, 110V, 240V

EX II 2GD EX d e IIC T6 EX tD A21 IP66 T85 ^oC

V		12	24	48	110	240
A		4	2	1,3	0,55	0,32
dB		92
Hz		1100 ÷ 100

IP 66	On: 2 Min. Off: 15 Min.	oC-20 +50
--	M25 x1,5

Explosion-proof electromechanical siren series Ex 065 SCL –EX 065 SCT

Technical data:

• audible sound of. 107 dB
• continuous tone
• protection IP66
• Voltages available 24V, 48V, 110V, 240V

EX II 2GD EX d e IIC T6 EX tD A21 IP66 T85 °C

V		24	48	110	240
A		8	6,75	1,9	1,35
dB		107 (SCL) 106 (SCT)
Hz		1100 ÷ 100

IP 66	On: 2 Min. Off: 15 Min	oC-20 +50
--	M25 x1,5

Ex Ringtones

• audible sound of. 107 dB
• continuous tone
• protection IP66
• Voltages available 24V, 48V, 110V, 240V

V		12	24	24	110	240
	~	12	24	48	110	110
A		1	0,5	0,3	0,1	0,6
	~	0,55	0,3	0,2	0,06	0,03
dB		100
	~	98
Hz		1500 ÷ 10000
	~	1500 ÷ 10000
