Gamintojas: M-SYSTEM

M2TS - temperatūros konverteris su termopora įvestuvu

  • M2TS

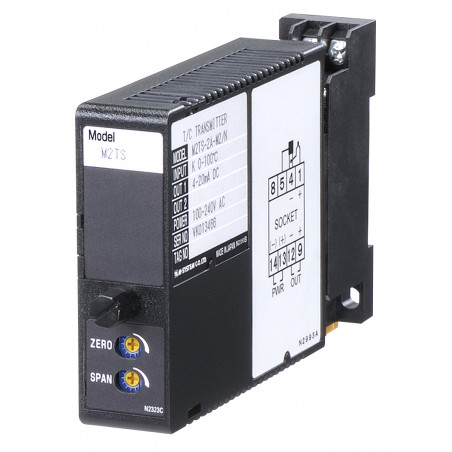

M2TS is a temperature converter with thermocouple input.


Features

  • AC / DC power
  • LED power indicator
  • Provides standard analog output signal
  • DIN rail mounting
  • High accuracy
  • Fast response type available
  • Insulation 2000V AC

Types of inputs: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength For DC power: 2000V AC < br> When powered by AC: 1500V AC
Range selection Fixed when ordering
Double Exit None
Power AC / DC
Operating temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 23x76x124mm
