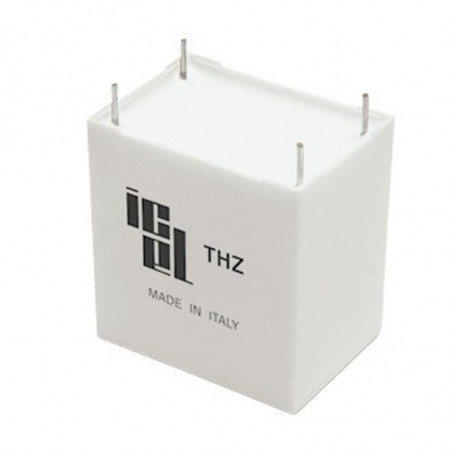

Thz - polipropileno kondensatoriai
  • Thz - polipropileno kondensatoriai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Icel

Thz - polipropileno kondensatoriai

Main applications

  • AC power applications
  • Input-output AC filtering
  • Harsh environment applications


Execution and reference standard

  • Extended metallized film
  • Internal series connection for Ur>300Vac
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS
THZ Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
450 Vdc (240 Vac) 3 ÷ 47 28.5 ÷ 62.5 7 ÷ 27 14x28x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
550 Vdc (300 Vac) 2.2 ÷ 33 36.5 ÷ 82.5 7 ÷ 27 14x28x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
630 Vdc (340 Vac) 1.5 ÷ 22 82.5 ÷ 182.5 7.5 ÷ 29 14x28x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
720 Vdc (400 Vac) 1 ÷ 17.5 97 ÷ 220 7.5 ÷ 28.5 14x28x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
800 Vdc (440 Vac) 1 ÷ 14 105 ÷ 235 7.5 ÷ 29 18x33x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
900 Vdc (475 Vac) 0.68 ÷ 12 120 ÷ 272.5 7 ÷ 29 14x28x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
1040 Vdc (550 Vac) 0.68 ÷ 9 135 ÷ 320 8 ÷ 27 18x33x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5

Product Card - Download
