Gamintojas: METCASE

Unimet ir darbalaukio korpusas

Unimet-Plus Instrument Enclosures

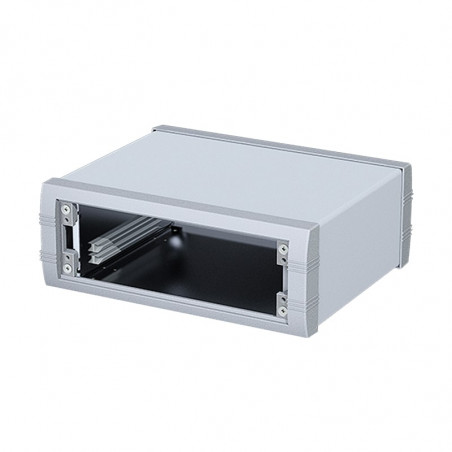

Advanced aluminium enclosures for desktop and portable electronics equipment. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. Stylish front and rear bezels fit to the fabricated case body. Version H is supplied with a tilt/swivel carry handle bar. A removable rear panel and four non-slip self-adhesive feet are included. Front panel kits, ABS tilt feet and additional PCB guides are available as accessories.

Opis
1)Top cover
2)Base/Chasiss
3)Front bezel (x2)
4)Rear panel
5)Carry handle bar
6)PCB Guides (x4)
7)M3 x 8 mm (x8)
8)M4 x10/16 mm (x4/8)
9)Rubber foot (x4)
10)*Front panel kit
11)*ABS feet
* Accessories
Standardowe kolory
Wymiary i rysunki Unimet-Plus
Unimet-Plus
PCB Size
VersionABT
1 184 (7.24”) 182 (7.16”) 1.6 (0.06”)
2 184 (7.24”) 182 (7.16”) 1.6 (0.06”)
3 204 (8.03”) 254 (10.00”) 1.6 (0.06”)
4 304 (11.96”) 254 (10.00”) 1.6 (0.06”)
5 204 (8.03”) 254 (10.00”) 1.6 (0.06”)
6 304 (11.96”) 254 (10.00”) 1.6 (0.06”)

Part No.VersionHWDd1w1
Front Panel		h1
Front Panel
M 56 23 015 1 50 (1.96”) 230 (9.05”) 193 (7.59”) 182.5 (7.18”) 199.5 (7.85”) 33.6 (1.32”)
M 56 23 115 2 85 (3.34”) 230 (9.05”) 193 (7.59”) 182.5 (7.18”) 199.5 (7.85”) 65.1 (2.56”)
M 56 25 115 3 85 (3.34”) 250 (9.84”) 263 (10.35”) 252.5 (9.94”) 219.5 (8.64”) 65.1 (2.56”)
M 56 35 215 4 120 (4.72”) 350 (13.77”) 263 (10.35”) 252.5 (9.94”) 319.5 (12.58”) 100.1 (3.94”)
M 56 25 315 5 150 (5.90”) 250 (9.84”) 263 (10.35”) 252.5 (9.94”) 219.5 (8.64”) 130.1 (5.12”)
M 56 35 315 6 150 (5.90”) 350 (13.77”) 263 (10.35”) 252.5 (9.94”) 319.5 (12.58”) 130.1 (5.12”)




Unimet-Plus H


PCB Size
VersionABT
1H 184 (7.24”) 182 (7.16”) 1.6 (0.06”)
2H 184 (7.24”) 182 (7.16”) 1.6 (0.06”)
3H 204 (8.03”) 254 (10.00”) 1.6 (0.06”)
4H 304 (11.96”) 254 (10.00”) 1.6 (0.06”)
5H 204 (8.03”) 254 (10.00”) 1.6 (0.06”)
6H 304 (11.96”) 254 (10.00”) 1.6 (0.06”)



Part No.VersionHWDd1w1
Front Panel		h1
Front Panel
M 56 23 035 1H 50 (1.96”) 230 (9.05”) 193 (7.59”) 182.5 (7.18”) 199.5 (7.85”) 33.6 (1.32”)
M 56 23 135 2H 85 (3.34”) 230 (9.05”) 193 (7.59”) 182.5 (7.18”) 199.5 (7.85”) 65.1 (2.56”)
M 56 25 135 3H 85 (3.34”) 250 (9.84”) 263 (10.35”) 252.5 (9.94”) 219.5 (8.64”) 65.1 (2.56”)
M 56 35 235 4H 120 (4.72”) 350 (13.77”) 263 (10.35”) 252.5 (9.94”) 319.5 (12.58”) 100.1 (3.94”)
M 56 25 335 5H 150 (5.90”) 250 (9.84”) 263 (10.35”) 252.5 (9.94”) 219.5 (8.64”) 130.1 (5.12”)
M 56 35 335 6H 150 (5.90”) 350 (13.77”) 263 (10.35”) 252.5 (9.94”) 319.5 (12.58”) 130.1 (5.12”)



Front Panel Kit

Part No.VersionABCD
M 57 00 607 1/1H 33.6 (1.32”) 199.5 (7.85”) 188 (7.40”) 22.1 (0.87”)
M 57 00 608 2/2H 65.1 (2.56”) 199.5 (7.85”) 188 (7.40”) 30.8 (1.21”)
M 57 00 613 3/3H 65.1 (2.56”) 219.5 (8.64”) 208 (8.18”) 30.8 (1.21”)
M 57 00 620 4/4H 100.1(3.94”) 319.5 (12.57”) 308 (12.12”) 65.8 (2.59”)
M 57 00 616 5/5H 130.1 (5.12”) 219.5 (8.64”) 208 (8.18”) 95.8 (3.77”)
M 57 00 621 6/6H 130.1 (5.12”) 319.5 (12.57”) 308 (12.12”) 95.8 (3.77”)

PCB Guides

Part No.AUnimet-Plus version
M 57 00 203 102 (4.00”) 1/1H/2/2H
M 57 00 202 216 (8.50”) 3/3H/4/4H/5/5H/6/6H

ABS Case Feet

Part No.Article
M 56 00 015 1 + 2 x4
M 56 00 045 1 + 2 x4 + 3 x2
