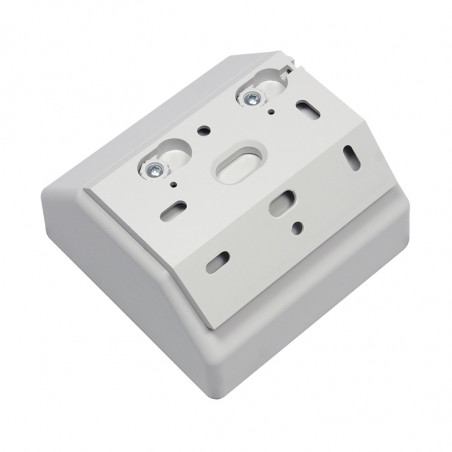

A multi-purpose, advanced plastic enclosure ideal for modern electronic applications. The 45 degree angles allow the enclosure to be mounted at an angle on desks or walls, it can also be mounted directly in the corner of a room.
|
![]() |
![]() |
![]() |
![]() |
Material | Base | UL94-V0 ABS | |
---|---|---|---|
Lid | UL94-V0 ABS / brass M3 insert | ||
Wall mount bracket | UL94-V0 ABS | ||
Wall mount lugs | UL94-V0 ABS | ||
All screws / nuts | BZP (bright zinc plated steel) | ||
Colours available | White | Similar to RAL9003 | |
Black | Similar to RAL9005 | ||
Grey | Similar to RAL7035 | ||
Operating temperature | from -10°C to +80°C | ||
Screw torque | Self tapping (security and mounting lug) | 0.2Nm | Max insertions = 2 |
M3 (lid and mounting lug) | 0.5Nm | Max insertions >1000 |
Part No. | Style | Colour |
---|---|---|
CB1500-10VWH-KIT | Vented | White |
CB1500-10SWH-KIT | Solid | White |
CB1500-10VBK-KIT | vented | Black |
CB1500-10SBK-KIT | Solid | Black |
CB1500-10VGY-KIT | vented | Grey |
CB1500-10SGY-KIT | Solid | Grey |
Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?
tu turi būti prisijungęs
A multi-purpose, advanced plastic enclosure ideal for modern electronic applications. The 45 degree angles allow the enclosure to be mounted at an angle on desks or walls, it can also be mounted directly in the corner of a room.
|
![]() |
![]() |
![]() |
![]() |
Material | Base | UL94-V0 ABS | |
---|---|---|---|
Lid | UL94-V0 ABS / brass M3 insert | ||
Wall mount bracket | UL94-V0 ABS | ||
Wall mount lugs | UL94-V0 ABS | ||
All screws / nuts | BZP (bright zinc plated steel) | ||
Colours available | White | Similar to RAL9003 | |
Black | Similar to RAL9005 | ||
Grey | Similar to RAL7035 | ||
Operating temperature | from -10°C to +80°C | ||
Screw torque | Self tapping (security and mounting lug) | 0.2Nm | Max insertions = 2 |
M3 (lid and mounting lug) | 0.5Nm | Max insertions >1000 |
Part No. | Style | Colour |
---|---|---|
CB1500-10VWH-KIT | Vented | White |
CB1500-10SWH-KIT | Solid | White |
CB1500-10VBK-KIT | vented | Black |
CB1500-10SBK-KIT | Solid | Black |
CB1500-10VGY-KIT | vented | Grey |
CB1500-10SGY-KIT | Solid | Grey |
