EPDM EPDM EDGE tarpikliai (EMKA)
  • EPDM EPDM EDGE tarpikliai (EMKA)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: SOLIANI

EPDM EPDM EDGE tarpikliai (EMKA)

Market requirements permit us to offer different gaskets that cover the double function of watertight seals and electromagnetic interference shielding. An initial demand was for a gasket that was of a self-blockingtype to be installed directly on plate moulding. Gaskets with codes A3208, A3213 e A3213-L, are those we offer for this type of application.

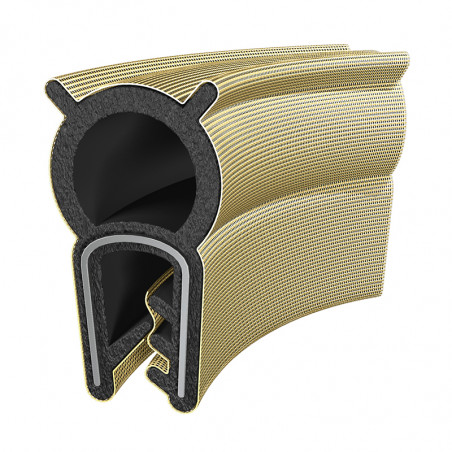

Clamping profile
Material: EPDM
Color: Black
Hardness: 65 +/-5 Shore A
Metal Part: Steel wire
Temperature Range: -40 + 130 °C

Hollow section:
Material: EPDM SPONGE
Color: Black
Hardness: 20 +/-5 Shore A
Temperature Range: -40 + 130 °C






Table profiles


Uszczelki krawędziowe EMC EPDM (EMKA) - tabela profili


Uszczelki krawędziowe EMC EPDM (EMKA)- promień gięcia Uszczelki krawędziowe EMC EPDM (EMKA)- promień gięcia
Minimum bending radius Minimum bending radius
Uszczelki krawędziowe EMC EPDM (EMKA)- promień gięcia Uszczelki krawędziowe EMC EPDM (EMKA)- promień gięcia
Minimum bending radius Minimum bending radius

Order example

Example: 1011-05-E.SC1006X881MM VULCANIZZATA



  Magnetic field [dB] Magnetic field [dB]
Freq. (MHz) 3 10 20 30 2 10 20 30
dB (1 Layer) 15 20 30 40 105 65 62 65

  Magnetic field [dB] Magnetic field [dB]
Freq. (MHz)) 200 400 500 700 800 1000 5000 10000 15000 18000
dB (1 Layer) 55 65 60 60 70 60 63 53 53 55
