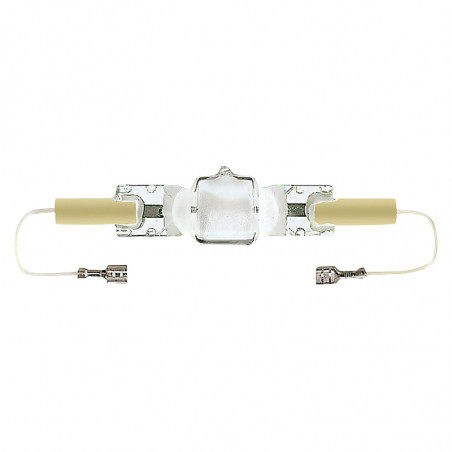

UV lempos
  • UV lempos

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Philips

UV lempos

Usage:

• Lacquer, paint and ink drying
• water disinfection
• photothermal processes
• label printing

Type grip/cover Power
[W]		 Current
[A]		 grip/cover max temperature
[°C]		 Glover max temperature
[°C]		 Radiation
UV-C
[W]		 Weight
[G]
HOK 35/80 SK32 2850 6.5 300 900 430 156
HOK 65/80 SK32 5000 6.6 300 900 750 224
HOK 105/80 SK32 8300 6.7 300 900 1250 319
HOK 140/80 SK32 11000 6.5 300 900 1650 400
HOK 20/100 CAP/CABLE 2100 9.6 300 900 335 75
HOK 4/120 R7S-21 400 3.5 350 950 55 55
HOK 4/120SE GY9.5 400 3.5 350 950 55 55
HOK 50/120 SK32/28*42 6000 10.0 300 900 960 191
HOK 105/120 SK32/28*42 12400 9.9 300 900 2020 319
HOK 140/120 SK32/28M2 17000 10.0 300 900 2860 400


HOK lamp spectrum



Dimensions [mm]

Type A
[mm]		 B max.
[mm]
grip/covera SK32
HOK35/80 355,0 ±2,0 422
HOK65/80 650,0 ±2,0 716
HOK105/80 1065,0 ±2,0 1136
HOK 140/80 1415,0±2,0 1486
Type A
[mm]		 B max.
[mm]
grip/cover SK 32/28x42
HOK50/120 500,0±2,0 580
HOK105/120 1057,0±2,0 1137
HOK140/120 1407,0±2,0 1487



Type Power(1
[w]		 Voltage(1
[V]		 Prąd(1
[A]		 Power.
[min]		 UVA(3
after 0 hour.
[MW/cm2]		 Diazo(3
after  0 hour.
[MW/cm2]		 UV(4
after 750 hour.
[%]		 Angle length
[mm]		 Lamp length
[mm]		 Lamp diameter
[mm]		 Terminal Wire length
[mm]		 Dimensions
drawing number
HPA800R 840/430 133/129 7,2/3,8 2 1600   80 37 110 18 C7S 375 1
HPA1009R 1150/570 130/110 10,0/5,8 2 2000   85 26 132 24 THSL 100T 4
HPA1000/20 1100 120 10,5 3 1780   80 21 129 27 C10.5L 100T 2
HPA1200R 1180/500 125/105 10,5/5,8 3 2240   80 83 147 27 C14X 195 5
HPM1O/B 400 125 3,5 3   700 80 38 112 17 B9.5   12
HPM 12 460 120 4,1 5   800 80 45 98 21 C14X 145 13
HPM 13 1000 125 8,6 3   2000 80 76 147 27 C14X 300 14
HPM 15 1950/800 240 9 4   4100 90 131 203 32 C14X 300 15
HPM 17 2000 243 8,7 2   4600 80 110 175 27 C14X 300 16
HPM19BT 2000/900 200 11 2   4200 85 103 179 27 B9.5   17
HPM 20/B 2900 350 9,4 2   6150 95 150 236 27 B9.5   18
HPM 20/C 2900 350 9,4 2   6150 90 150 210 27 C14X 225RT 19
HPM 25/C 5000/1900 245/210 23,0/10 2   12000 85 186 276 27 CU 190 20
HPM 1001 1150/650 120/110 10,0/5,9 2   2800 90 26 137 24 C10.5L 100T 3
HPM 2018 1900/850 210/190 10,0/5,3 2   5600 90 55 132 27 THSS 100T 7
HPM 3000 3350/1575 400/375 9,0/4,8 4   9000 90 105 190 27 C10.5S 100T 8
HPM 3008 3350/1575 400/375 9,0/4,8 4   9000 90 105 190 27 THSS 100T 9
HPM 4010 4000/1800 310/260 13,5/7,4 4   10500 90 117 203 32 C10.5S 190 10





Drawing 1 HPA 800R
Drawing 2 HPA 1000/20
Drawing 3 HPA 1001R, HPM 1001


Drawing 4 HPA 1009R
Drawing 5 HPA 1200R
Drawing 7 HPA 2018


Drawing HPM 3000R, 8 HPA 3000
Drawing 9 3008 HPM
Drawing 10 HPM 4010 (HPM30)


Drawing 12 HPM 10/B
Drawing 13 HPM 12
Drawing 14 HPM 13


Drawing 15 HPM 15
Drawing 16 HPM 17
Drawing 17 HPM 19BT


Drawing 18 HPM 20/B
Drawing 19 HPM 20/C
Drawing 20 HPM 25/C


KOŃCÓWKI
