UV lempų priedai
  • UV lempų priedai
  • UV lempų priedai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Philips

UV lempų priedai

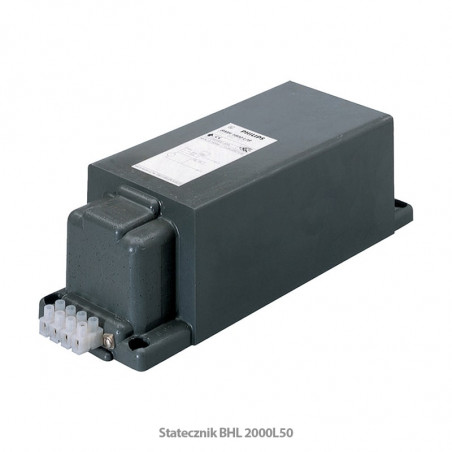

Stabilizer BHL 2000L50
primer SI 54

Features and advantages
• small dimensions and weight and minimal power loss
• screw terminals
• Humidity proof casing
• Small section
• Grounding element

Features and advantages
• small dimensions and weight
• available in series-parallel or series version
• allows for reliable and fluent lamp trigger
• screw terminalse
• Time turn of
Dimensions [mm]
Dimensions [mm]


Trigger for radiators >2500W



Transformers
Capacitors
Transformer is designed specially for UV lamp control. Depending on lamp power combination of 2 or 3 transformers is used.

Other capacitors for request

Type Capacity [µF] Voltage [V] Dimensions [mm]
DUV-3.15UF/3500V 3,15 3500 140x85x230
DUV-3.75UF/3500V 3,75 3500 140x85x230


Technical data:
Primary winding

Voltage 380V/50Hz.
Current 13 A
Secondary winding
Voltage 840 V
Current 5,6 A
Power 5000 VA
Max. operating temperature 40°C
Weight 40 kg.
Dimensions 240x300x215 mm

Reflectors
