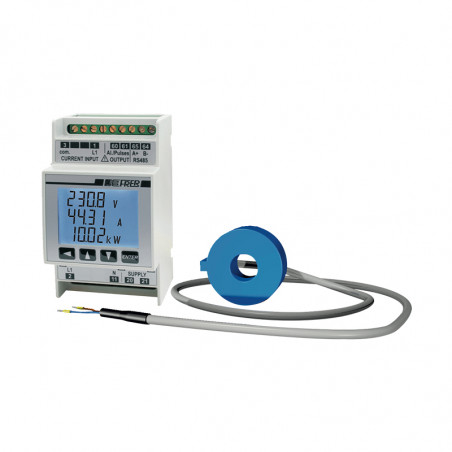

Vienfazis daugiafunkcinis tinklo analizatorius NANO MoNo
  • Vienfazis daugiafunkcinis tinklo analizatorius NANO MoNo

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

Vienfazis daugiafunkcinis tinklo analizatorius NANO MoNo

Display LCD retroilluminato / backlit LCD
Max. indication 4 cifre / digits (9999)
Decimal point position automatica/automatic
Adjustable backlight 5 livelli / 5 levels
Readings update < 0,5 sec.
Measuring type TRMS
Basic accuracy ±0,5%
Nominal input voltage Un 230V
Nominal input current In 63A
Input range(1) 10-120% Un, 5-120% In
Operating frequency 45...65Hz
Continuous overload 2 x In; 1.2 x Un
Short-term overload 20 x In; 2 x Un (300 msec.)
Current circuits consumption < 0.5VA
Voltage circuits consumption < 0.5VA
Power supply 230V (45...65Hz) ±10%
Power consumption 6VA
Operating temperature 0...+23...+50°C
Storage temperature -30...+70°C
Self estinguishing
Thermoplastic material UL 94-V0
Protection for housing IP50
Protection for terminals IP20
Galvanic insulation alim./ing./usc. aux.supply/inputs/out
Test voltage 2kV, 50Hz, 60sec.

TYPE Description CODE

NANO MoMo

 Single-phase fitted with NANOTAMoNo 63A

Q52S3L063MD3...

Comunication protocols

 Standard Optional
ModBus RTU +
Ethernet-ModBus TCP/Webserver   +
Johnson Controls N2 OPEN   +
Profibus DP v0   +

Description

Multifunction meter, suitable for single-phase (measures and functiones as per table on page 3). It displays the main electrical measurement of an electrical network, including active and reactive energy counting. The direct current input at 63A, by means of a miniaturized CT permits to reduce costs and wiring time.

Dimensions

Analizatory sieci jednofazowej NANO MoNo wymiar
