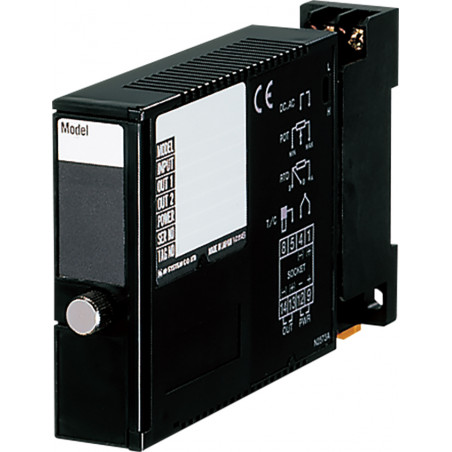

M2XPA3 - Signalo keitiklis su dažnio įvedimu - pritaikoma
  • M2XPA3 - Signalo keitiklis su dažnio įvedimu - pritaikoma

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: M-SYSTEM

M2XPA3 - Signalo keitiklis su dažnio įvedimu - pritaikoma

  • M2XPA3

M2XPA3 is a converter with frequency input - configurable.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, voltage or current pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection Programmable via PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

M2XPA3 is a converter with frequency input - configurable.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, voltage or current pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection Programmable via PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
