Gamintojas: Proconect

Belaidis NF 160 akumuliatoriaus jungtis

Battery connector NF 160

Characterictics:

  • Voltage: 150V DC max
  • Amperage: 160A
  • Temperature range: -20°C / +90°C
  • Housing: acidproof plastic
  • Contacts: copper alloy, silver plated, (to crimp or to solder)
  • Amperage of auxiliary contact: 20 A
  • Section of auxiliary contact: 2,5 mm2 i 4 mm2
  • Watertightness: IP23
  • Normes: NF EN 1175-1 and DIN VDE 0623-589

Complete connectors:

  Ref. Description Section
mm2 AWG
Connector
 169161-N Male 50 1/0
169162-N Male 35 2
Connector
 169165-N Female with handle 50 1/0
169166-N Female with handle 35 2
169175-N Female 50 1/0
169176-N Female 35 2
Auxiliary contacts
 169361-N Male - 20 A  2.5 14
169355-N Male - 32 A 4 12
169364-N Male - 20 A 2.5 14
169362-N Female - 20 A 2.5 14
169356-N Female - 32 A 4 12
169365-N Female - 20 A 2.5 14
Handle
 169339 Black color -
169339-R Red color
169339-RH Red color - reinforced
Air connector 169363-N Air connector -
Dust cap 169195 Male and Female -

Spare parts:


 Ref. Description
 Section
mm2 AWG
Contact 169181-N Male 16 6
169182-N Male 25 4
Contact 169185-N Female 16 6
169186-N Female 25 4
Housing
 169190-N Male -
169191-N Female
Reducers 169196  50 mm2 / 35 mm2 -
169197  50 mm2 / 35 mm2
169198 35 mm2 / 16 mm2
Voltage coding key 169199-N Black color wet battery -
169193-N Grey color gel battery

NF 160 Male

NF 160 Female

NF 160 Connector

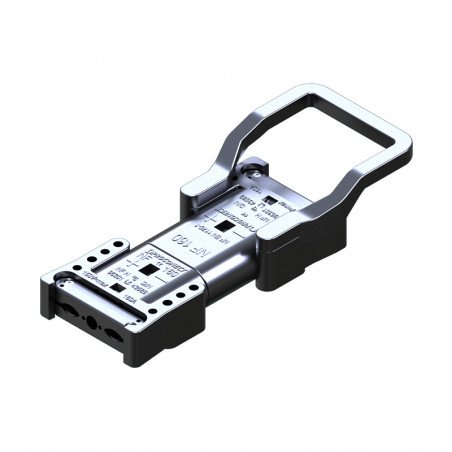

NF 160 Female with handle

NF 160 Dust cap
