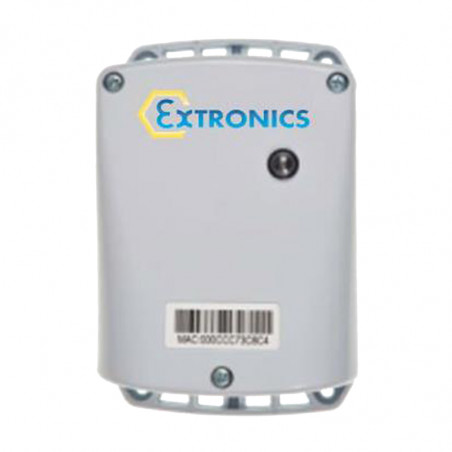

ITAG102 vidinis žymeklis

The iTag102 is an intrinsically safe tag that combines GPS and Wi-Fi to improve operations in large, outdoor environments.
The tag is a battery-powered, wireless device that uses GPS to determine location and standard Wi-Fi to transport asset location and other valuable information to the customer’s 802.11b/g compatible Wi-Fi network. The iTAG102 provides an ideal solution for organizations that need accurate location information for asset management in outdoor areas with minimal or basic Wi-Fi coverage. The tags help customers improve productivity and operational efficiency, while leveraging Wi-Fi infrastructure to keep total costs low.
The iTAG102 is part of the Extronics Aeroscout powered unified Asset Visibility solution that combines multiple data sources and technologies into one Wi-Fi based system. The iTAG102 is perfect for large outdoor industrial storage areas and yards, chemical plants, oil and gas refineries and petro chemical plants where its important to manage inventory, equipment and personnel.
The intrinsically safe iTAG102 is available in two variants. The iTAG102 BP is a battery powered unit containing a durable battery pack for long life operation. The iTAG102 XP is an external powered tag with an intrinsically safe DC input.

Wifi Range Outdoor Range : Up to 200 metres (600 Feet)
Indoor Range : Up to 60 metres (180 feet)
Wifi Positioning Accuracy Typically 5 metres but as low as 1 metre, dependant upon number of Access Points or
Location Receivers and environment
Dimensions 100mm x 80mm x 55mm (3.9” x 3.1” x 2.2”)
Weight DC TAG: 325g
Battery TAG: 525g
Housing Polycarbonate
Stopień ochrony FM:IP 54
GPS Receiver SIRF Single chip receiver GSC3E/LP
Tracking sensitivity: - 158dbm
Housing Mounting Options Fixed Vertical Mounting
Radio 802.11b/g radio (2.4 GHz) [&] RFID low frequency
receiver (125 KHz)
Wifi Transmission Power Up to +19dBm, approx 81mW with clear channel sensing function that avoids interfer-ence with wireless networks
Programmability Transmission level interval, from 64 msec to 3.5 hours, channel programming and
wireless tag programming
Ambient Temperature DC TAG : T4 = -30°C to +70°C
Battery TAG: T4 = -30°C +50°C
T3C = -30°C +70°C
Relative humidity 0 to 95%, condensing
Power External 12Vdc power supply /
FM approved 3.6V Lithium battery pack
Battery Life Up to 3 years dependant on use and environment
Compliance Compliant with IEEE 802.11 b/g standards
Radio Certification FCC Part 15, sub part C class B, sub part B, EN 300-328, EN300-328,
Safety Certification CE, cTUVus (EN60950)
FM Certification Intrinsically Safe Class I, Division 1
Groups A, B, C, D T3C, T4

Ordering Information

Description Part Number
Intrinsically Safe Tag FM Certified with battery pack TAG-6000-BP-X1
Intrinsically Safe Tag FM certified DC powered TAG-6000-XP-X1
Spare lithium battery for the iTAG102 A330059
