Convertoare DC / DC din seria PMM
  • Convertoare DC / DC din seria PMM

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Cosel

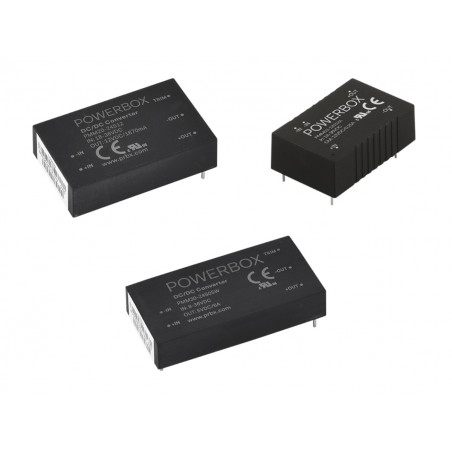

Convertoare DC / DC din seria PMM

Key product features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Industries

  • Industrial
  • Medical

Technical features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off
PMM Models Input Voltage Output Type Output Voltages Output Power
PMM03-12D DC9 - 18V Dual More information in the data sheet 3W
PMM03-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM03-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 3W
PMM03-24DW DC9 - 36V Dual More information in the data sheet 3W
PMM03-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM03-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM03-48D DC36 - 75V Dual More information in the data sheet 3W
PMM03-48DW DC36 - 75V Dual More information in the data sheet 3W
PMM03-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM03-48SW DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM03-5D DC4.5 - 9V Dual More information in the data sheet 3W
PMM03-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMM06-12D DC9 - 18V Dual More information in the data sheet 6W
PMM06-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM06-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 6W
PMM06-24DW DC9 - 36V Dual More information in the data sheet 6W
PMM06-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM06-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM06-48D DC36 - 75V Dual More information in the data sheet 6W
PMM06-48DW DC36 - 75V Dual More information in the data sheet 6W
PMM06-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM06-48SW DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM06-5D DC4.5 - 9V Dual More information in the data sheet 6W
PMM06-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMM10-12D DC9 - 18V Dual More information in the data sheet 10W
PMM10-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM10-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 10W
PMM10-24DW DC9 - 36V Dual More information in the data sheet 10W
PMM10-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM10-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM10-48D DC36 - 75V Dual More information in the data sheet 10W
PMM10-48DW DC36 - 75V Dual More information in the data sheet 10W
PMM10-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM10-48SW DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM10-5D DC4.5 - 9V Dual More information in the data sheet 10W
PMM10-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMM15-12D DC9 - 18V Dual More information in the data sheet 15W
PMM15-12S DC9 - 18V Single 5V, 12V, 15V, 24V 15W
PMM15-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 15W
PMM15-24DW DC9 - 36V Dual More information in the data sheet 15W
PMM15-24S DC18 - 36V, DC9 - 36V Single 5V, 12V, 15V, 24V 15W
PMM15-24SW DC9 - 36V Single 5V, 12V, 15V, 24V 15W
PMM15-48D DC36 - 75V, DC18 - 75V Dual More information in the data sheet 15W
PMM15-48DW DC18 - 75V Dual More information in the data sheet 15W
PMM15-48S DC36 - 75V, DC18 - 75V Single 5V, 12V, 15V, 24V 15W
PMM15-48SW DC18 - 75V Single 5V, 12V, 15V, 24V 15W
PMM20-12D DC9 - 18V Dual More information in the data sheet 20W
PMM20-12S DC9 - 18V Single 5V, 12V, 15V, 24V 20W
PMM20-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 20W
PMM20-24DW DC9 - 36V Dual More information in the data sheet 20W
PMM20-24S DC18 - 36V, DC9 - 36V Single 5V, 12V, 15V, 24V 20W
PMM20-24SW DC9 - 36V Single 5V, 12V, 15V, 24V 20W
PMM20-48D DC36 - 75V, DC18 - 75V Dual More information in the data sheet 20W
PMM20-48DW DC18 - 75V Dual More information in the data sheet 20W
PMM20-48S DC36 - 75V, DC18 - 75V Single 5V, 12V, 15V, 24V 20W
PMM20-48SW DC18 - 75V Single 5V, 12V, 15V, 24V 20W
PMM30-12D DC9 - 18V Dual More information in the data sheet 30W
PMM30-12S DC9 - 18V Single 5V, 12V, 15V, 24V 30W
PMM30-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 30W
PMM30-24DW DC9 - 36V Dual More information in the data sheet 30W
PMM30-24S DC18 - 36V, DC9 - 36V Single 5V, 12V, 15V, 24V 30W
PMM30-24SW DC9 - 36V Single 5V, 12V, 15V, 24V 30W
PMM30-48D DC36 - 75V, DC18 - 75V Dual More information in the data sheet 30W
PMM30-48DW DC18 - 75V Dual More information in the data sheet 30W
PMM30-48S DC36 - 75V, DC18 - 75V Single 5V, 12V, 15V, 24V 30W
PMM30-48SW DC18 - 75V Single 5V, 12V, 15V, 24V 30W
