Convertoare DC / DC din seria CBS
  • Convertoare DC / DC din seria CBS

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Cosel

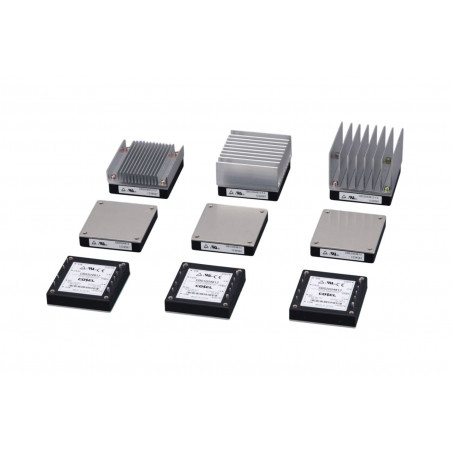

Convertoare DC / DC din seria CBS

Key Product Features

  • High Power DC-DC Converter
  • Industry Standard 1/2 Brick Size
  • Up to 91% efficiency
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved
  • NOTE: This module requires external circuit & heat design.

Industries

  • Communication
  • Industrial

Technical Features

  • < 1U High
  • Remote On/Off
CBS Models Input Voltage Output Type Output Voltages Output Power
CBS50 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V 50W
CBS100 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V 100W
CBS200 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
CBS350 DC18 - 36V, DC36 - 76V Single 12V, 24V, 28V, 32V, 48V 350W
CBS450 DC36 - 76V Single 24V, 28V, 32V 450W

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

Key Product Features

  • High Power DC-DC Converter
  • Industry Standard 1/2 Brick Size
  • Up to 91% efficiency
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved
  • NOTE: This module requires external circuit & heat design.

Industries

  • Communication
  • Industrial

Technical Features

  • < 1U High
  • Remote On/Off
CBS Models Input Voltage Output Type Output Voltages Output Power
CBS50 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V 50W
CBS100 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V 100W
CBS200 DC18 - 36V, DC36 - 76V Single 1.8V, 2.5V, 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
CBS350 DC18 - 36V, DC36 - 76V Single 12V, 24V, 28V, 32V, 48V 350W
CBS450 DC36 - 76V Single 24V, 28V, 32V 450W
