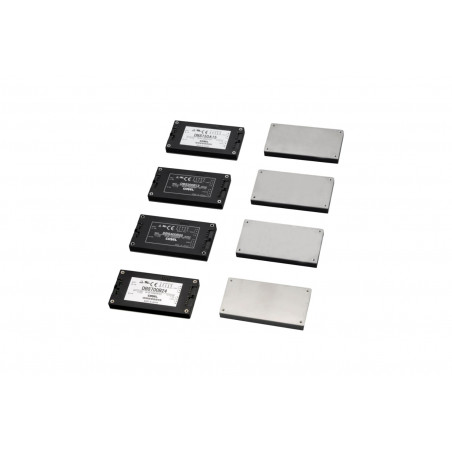

Convertoare DC / DC din seria DBS
  • Convertoare DC / DC din seria DBS

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Cosel

Convertoare DC / DC din seria DBS

Key Product Features

  • High Power DC-DC Converter
  • Industry Standard Full Brick Size
  • Suitable for PFC Front End
  • Can be paired with DPG & DPF Series
  • 5 Year Warranty
  • EN & UL Approved
  • NOTE: This module requires external circuit & heat design.

Industries

  • Communication
  • Industrial
  • Transportation

Technical Features

  • < 1U High
  • Alarm
  • Parallel Function
  • Remote On/Off
DBS Models Input Voltage Output Type Output Voltages Output Power
DBS100A DC45 - 160V Single 5V, 13.8V 100W
DBS150A DC66 - 160V Single 12V, 15V, 24V 150W
DBS200B DC200 - 400V Single 3.3V, 5V, 7.5V, 12V 200W
DBS400B DC200 - 400V Single 3.3V, 5V, 7.5V, 12V, 15V, 18V, 24V, 28V 400W
DBS700B DC200 - 400V Single 12V, 24V, 28V, 36V, 48V 700W
