Convertoare DC / DC din seria PMF
  • Convertoare DC / DC din seria PMF

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Cosel

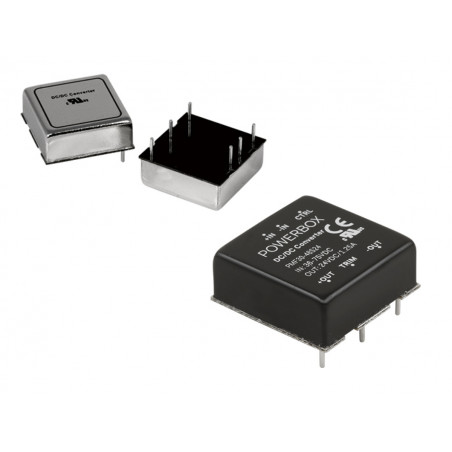

Convertoare DC / DC din seria PMF

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 15W to 30W Output Power
  • SMD or TH Mounting
  • Various Protection Features

Industries

  • Industrial
  • Mil Def Compliant
  • Transportation

Technical Features

  • < 1U High
  • Remote On/Off
PMF Models Input Voltage Output Type Output Voltages Output Power
PMF20-12D DC9 - 18V Dual More information in the data sheet 20W
PMF20-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V 20W
PMF20-24D DC18 - 36V Dual More information in the data sheet 20W
PMF20-24DW DC9 - 36V Dual More information in the data sheet 20W
PMF20-24S DC18 - 36V Single 3.3V, 5V, 12V, 15V 20W
PMF20-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V 20W
PMF20-48D DC36 - 75V Dual More information in the data sheet 20W
PMF20-48DW DC18 - 75V Dual More information in the data sheet 20W
PMF20-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V 20W
PMF20-48SW DC18 - 75V Single 3.3V, 5V, 12V, 15V 20W
PMF30-12D DC9 - 18V Dual More information in the data sheet 30W
PMF30-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 23.1 - 30W
PMF30-24D DC9 - 36V, DC18 - 36V Dual More information in the data sheet 30W
PMF30-24DW DC9 - 36V Dual More information in the data sheet 30W
PMF30-24S DC9 - 36V, DC18 - 36V Single 3.3V, 5V, 12V, 15V, 24V 23.1 - 30W
PMF30-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 23.1 - 30W
PMF30-48D DC18 - 75V, DC36 - 75V Dual More information in the data sheet 30W
PMF30-48DW DC18 - 75V Dual More information in the data sheet 30W
PMF30-48S DC18 - 75V, DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 23.1 - 30W
PMF30-48SW DC18 - 75V Single 3.3V, 5V, 12V, 15V, 24V 23.1 - 30W
