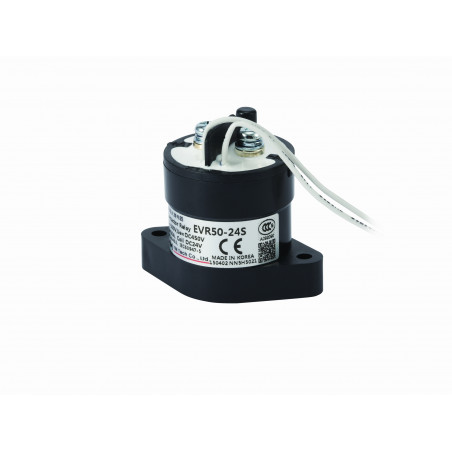

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului
please use latin characters
Application
Magnet coil ratings
Nominal voltage (v) | Nominal current (mA) | Coil resistance (Ω) | Pick-up voltage (V)Max | Drop-out voltage (V)Min | Max. voltage (V)Max | Coil power(W) dissipation | |
---|---|---|---|---|---|---|---|
DC | 220 | 17 | 14,500 | 75% Min. | 10% | 130% | 3 ~ 3.5 |
110 | 29 | 3,750 | |||||
72 | 45 | 1,600 | |||||
60 | 54 | 1,120 | |||||
48 | 66 | 730 | |||||
36 | 90 | 400 | |||||
24 | 133 | 180 | |||||
12 | 267 | 45 | |||||
6 | 545 | 11 |
Contact ratings
Type | 1Pole Resistive load (L/R≤1㎳ |
---|---|
Max. switching current (wire size 10㎟) | 50A |
Max. switching capacity | 1200VDC 10A |
Contact rating switching voltages | 12~1200VDC |
Max. contact performance (wire size 10㎟) | 150A 30Sec. |
250A 10Sec. | |
Voltage drop across contacts per 50A | 0.25V max. |
Min. permissible load | 12V DC 0.5A |
Description | S.P On/Off, (1a) |
Characteristics
Initial insulation resistance | Min. 100㏁ 500V DC | ||
---|---|---|---|
Expected life | Mechanical (Min.) | 2×106 | |
Electric (L/R≤1㎳) | 450V DC 10A | 1×105 | |
250V DC 15A | 2×105 | ||
Initial breakdown voltage | Between open contacts | 2500V AC 60 Sec. 10mA | |
Between contacts & coil | 2500V AC 60 Sec. 10mA | ||
Operate time (at 20℃) | Max. 20㎳ | ||
Release time (at 20℃) | Max. 5㎳ | ||
Shock resistance | Functional | Min 196 ㎨ {20G},(10㎲) | |
Destructive | Min 490 ㎨ {50G} | ||
Vibration resistance | Functional | 43 ㎨ {4.4G} 10 to 200㎐,(10㎲) | |
Destructive | 43 ㎨ {4.4G} 10 to 200㎐ | ||
Conditions for operation transport and storage | Ambient temperature | -40℃ to +85℃ | |
Humidity | 5 to 85% R.H. | ||
Unit weight | 110g |
