G2IM5AL10 - Releu de monitorizare curent
  • G2IM5AL10 - Releu de monitorizare curent

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: TELE Haase

G2IM5AL10 - Releu de monitorizare curent

  • G2IM5AL10
  • Valoare evaluată 0,02/1/5A AC/DC
  • Ieșire 1 x przełączalne
  • Numărul de faze jednofazowe
  • alimentare electrică moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

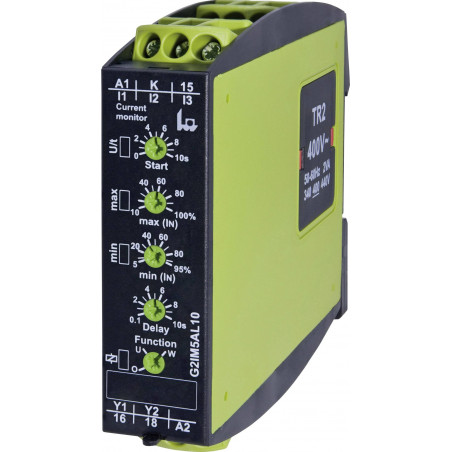

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

mai puțin
Citeste mai mult

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga
trimite o anchetă

Adaugă la lista de dorințe

trebuie să fii logat

  • Valoare evaluată 0,02/1/5A AC/DC
  • Ieșire 1 x przełączalne
  • Numărul de faze jednofazowe
  • alimentare electrică moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
