Producător: TOSHIBA TEC Poland

Imprimanta industriala B-SX6

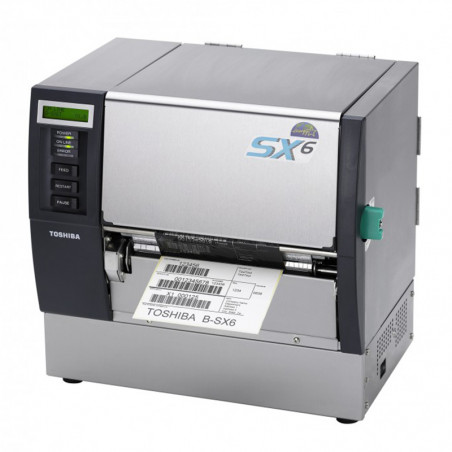

Industrial printer B-SX6

Technical data
Printing technology
Thermal and thermal transfer printing
Type of printhead
Edge
Printing width
10 - 170,6 mm
Printing length
5,5 - 1705 mm
Label backing width
225 mm
Resolution
305 dpi
Printing speed
Up to 203 mm/s
Memory
16 MB SD-RAM, 16 MB Flash ROM
Supported barcodes
JAN 8, EAN 8, JAN 13, EAN 13, UPC-A, UPC-E, NW-7, Code 39, ITF, MSI,
Code 93, Code 128, EAN 128, Industrial 2 of 5, Postnet
Supported 2D codes
Data Matrix, PDF 417, Maxicode, Micro PDF 417, QR Code, CP Code, RSS
Interfaces
LPT, USB 2.0, LAN 10/100
Dimensions
417 (W) x 395 (H) x 282 (D) mm
Additional options
Blade, label peel-off module, WLAN card, binary logic port,
serial port, real-time clock, tape saver module, RFID module,
metal label shielding
Weight
29 kg (not including labels and tapes)
Consumables
Paper roll - internal diameter
76,2 mm
Paper roll - external diameter
200 mm (inward winding)
Label thickness
0,1 - 0,17 mm
Thermal transfer tape length
Max. 300 m


B-SX6
Thermal and thermal transfer industrial printer
Model Description Printing resolution (dpi) Max.
pringitng speed (mm/s)		 Max.
printing width (mm)		 LPT USB LAN
B-SX6T-TS12-QM-R
Standard version
 305 203 213,3 V V V
B-SX6 - options
B-SX208-QM-R
Blade
B-SX908-H-QM-R
Label peel-off module
B-SA704-RS-QM-R
Serial port
B-SA704-WLAN-QM-R
WLAN card
B-SA704-IO-QM-R
Binary logic port
B-SX908-R-QM-R
Tape saver module (standard equipment)
B-SA704-RTC-QM-R
Real-time clock
B-SX708-RFID-U1-EU-R
UHF RFID module (future plans)
B-SX708-RFID-H1-QM-R
HF RFID module (future plans)
B-SX908-MC-QM-R
Metal label shielding (future plans)
B-SX6 - spare parts
7FM01584100
Printhead
