Producător: Ambrell

Putere 75-250 kW, frecvență 2 - 6 kHz

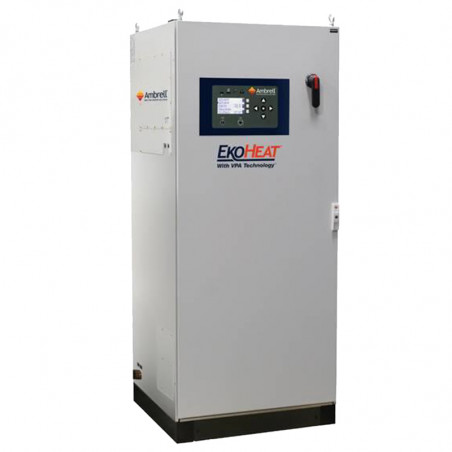

Generators for induction heating: power 75-200 kW, frequency 2-6 kHz

EKOHEAT induction heating systems for 2 - 6 kHz range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating of hard-to-couple parts, deeper heat penetration, crystal growing, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

Model
Output Power (kW)
Frequency (kHz)
Power Supply (V)
Input Power (kVA)
EKOHEAT 75/3
75
2 - 6
360 - 520, 3 ph
87
EKOHEAT 100/3
100
2 - 6
360 - 520, 3 ph
116
EKOHEAT 125/3
125
2 - 6
360 - 520, 3 ph
145
EKOHEAT 150/3
150
2 - 6
360 - 520, 3 ph
174
EKOHEAT 200/3
200
2 - 6
360 - 520, 3 ph
232
EKOHEAT 250/3
250
2 - 6
360 - 520, 3 ph
290

Generators for induction heating EKOHEAT 75kW - 3kHz
Max Power: 75 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 87 kVA

Data Sheet:

Generators for induction heating EKOHEAT 100kW - 3kHz
Max Power: 100 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 116 kVA

Data Sheet:

Generators for induction heating EKOHEAT 125kW - 3kHz
Max Power: 125 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 145 kVA

Data Sheet:

Generators for induction heating EKOHEAT 150kW - 3kHz
Max Power: 150 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 174 kVA

Data Sheet:

Generators for induction heating EKOHEAT 200kW - 3kW
Max Power: 200 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 232 kVA

Data Sheet:

Generators for induction heating EKOHEAT 250kW - 3kHz
Max Power: 250 kW
Frequency: 2 - 6 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 290 kVA

Data Sheet:
