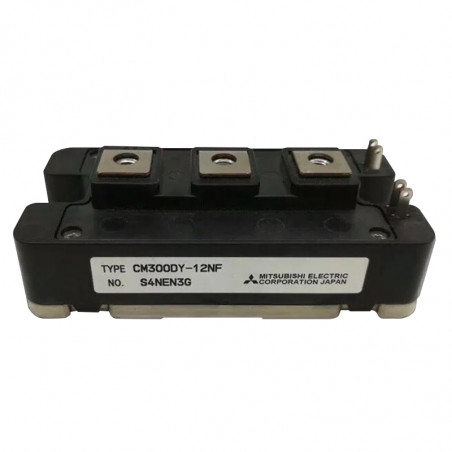

![A 5-a generație de module IGBT TRENTCH - seria NF A 5-a generație de module IGBT TRENTCH - seria NF](https://www.dacpol.eu/6299-large_default/a-5-a-generaie-de-module-igbt-trentch-seria-nf.jpg)
![A 5-a generație de module IGBT TRENTCH - seria NF A 5-a generație de module IGBT TRENTCH - seria NF](https://www.dacpol.eu/6299-large_default/a-5-a-generaie-de-module-igbt-trentch-seria-nf.jpg)
trebuie să fii logat
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Fotografiile au doar scop informativ. Vizualizați specificațiile produsului
please use latin characters
Tabel. Date electrice
Tip | Parametri maximi | Vce(sat) | td(on) (ns) |
IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |
Nr. Fig. | |
---|---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
|||||
600 V (Half bridge) | |||||||
CM150DY-12NF |
600 | 150 | 1,7 | 100 | 0.21 | 0.47 | NF1 |
CM200DY-12NF |
600 | 200 | 1,7 | 120 | 0.19 | 0.35 | NF1 |
CM300DY-12NF |
600 | 300 | 1,7 | 120 | 0.16 | 0.25 | NF1 |
CM400DY-12NF |
600 | 400 | 1,7 | 200 | 0.11 | 0.19 | NF2 |
CM600DY-12NF |
600 | 600 | 1,7 | 300 | 0.11 | 0.18 | NF3 |
600V (3-phase bridge) | |||||||
CM75TL-12NF |
600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100TL-12NF |
600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150TL-12NF |
600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200TL-12NF |
600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
600V (3-phase bridge + chopper) | |||||||
CM75RL-12NF |
600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100RL-12NF |
600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150RL-12NF |
600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200RL-12NF |
600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
Tip | Parametri maximi | Vce(sat) | IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |
Nr. Fig. | ||
---|---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
|||||
1200V (Half bridge) | |||||||
CM75DY-24NF |
1200 | 75 | 1.8 | 0.290 | 0.470 | NF1 | |
CM100DY-24NF |
1200 | 100 | 1.8 | 0.190 | 0.350 | NF1 | |
CM150DY-24NF |
1200 | 150 | 1.8 | 0.160 | 0.250 | NF1 | |
CM200DY-24NF |
1200 | 200 | 1.8 | 0.110 | 0.190 | NF2 | |
CM300DY-24NF |
1200 | 300 | 1.8 | 0.110 | 0.180 | NF3 | |
CM400DY-24NF |
1200 | 400 | 1.8 | 0.085 | 0.150 | NF3 | |
CM600DU-24NF |
1200 | 600 | 1.95 | 0.060 | 0.110 | NF6 | |
CM900DU-24NF |
1200 | 900 | 1.8 | 0.049 | 0.078 | NF7 | |
CM1400DU-24NF |
1200 | 1400 | 1.8 | 0.032 | 0.053 | NF7 | |
1200V (3-phase bridge) | |||||||
CM50TL-24NF |
1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 | |
CM75TL-24NF |
1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 | |
CM100TL-24NF |
1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 | |
CM150TL-24NF |
1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 | |
CM200TL-24NF |
1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 | |
1200V (3-phase bridge + chopper) | |||||||
CM50RL-24NF |
1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 | |
CM75RL-24NF |
1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 | |
CM100RL-24NF |
1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 | |
CM150RL-24NF |
1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 | |
CM200RL-24NF |
1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 | |
1700V (Half bridge) | |||||||
CM1000DU-34NF |
1700 | 1000 | 2.2 | 0.014 | 0.023 | MPD1 |
Disponibilitate: Vă rugăm să rețineți că acest produs este epuizat
Puteți plasa o precomandă, puteți înregistra interesul pentru un produs făcând clic pe butonul „Solicitați disponibilitate”.
