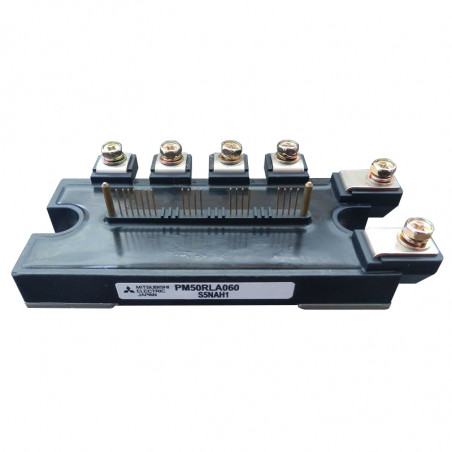

A 5-a generație de module IPM - seria L

Caracteristici:
1. Pierdere redusă de energie.
2. Interferență:
- îmbunătățirea caracteristicilor diodelor anti-paralele
- metode îmbunătățite de control a tranzistorului pentru a reduce interferențele.
3. Creșterea curentului de tranzistor de frânare
- ½ IGBT curent nominal.
4. Carcasă nouă
- reducerea dimensiunii carcasei cu 32% comparativ cu seria S-DASH.


Tabel. Comparația VCE (SAT) a generațiilor următoare de IPM

Tensiune
[V]
Vce(sat) tip. V@Vd=15V, Tj=125°C
A 3-a generațieA 4-a generațieA 5-a generație
600 1,9 1,7 1,5
1200 2,2 2,1 1,9

 Curent tranzistor in bridge
[A]
Curent de redresare
A 5-a generație [A]A 4-a generație
[A]

PM50RLA060

50 25 15

PM50RLB060

50 25 15

PM75RLA060

75 50 30

PM75RLB060

75 50 30

PM100RLA060

100 50 30

PM150RLA060

150 75 50


Tabel. Date electrice

TipParametri maximiVce(sat)Nr. Fig.
VCES
[V]
IC
[A]
Pt
[W]
@ Tj=25°C
[V]

PM50CLA060

600 50 101 1,6 L1

PM50CLB060

600 50 101 1/6 L2

PM50RLA060

600 50 101 1/6 L1

PM50RLB060

600 50 101 1/6 L2

PM75CLA060

600 75 297 1/6 L1

PM75CLB060

600 75 297 1/6 L2

PM75RLA060

600 75 297 1/6 L1

PM75RLB060

600 75 297 1/6 L2

PM100CLA060

600 100 356 1/6 L1

PM100RLA060

600 100 356 1/6 L1

PM150CLA060

600 150 480 1/6 L1

PM150RLA060

600 150 480 1/6 L1

PM200CLA060

600 200 595 1/6 L3

PM200RLA060

600 200 595 1/6 L3

PM300CLA060

600 300 781 1/6 L3

PM300RLA060

600 300 781 1/6 L3

PM450CLA060

600 450 1041 1/9 L4

PM600CLA060

600 600 1785 1/9 L4

PM25CLA120

1200 25 116 1/8 L1

PM25CLB120

1200 25 116 1/8 L2

PM25RLA120

1200 25 116 1/8 L1

PM25RLB120

1200 25 116 1/8 L2

PM50CLA120

1200 50 369 1/8 L1

PM50CLB120

1200 50 369 1/8 L2

PM50RLA120

1200 50 369 1/8 L1

PM50RLB120

1200 50 369 1/8 L2

PM75CLA120

1200 75 457 1/8 L1

PM75CLB120

1200 75 457 1/8 L2

PM75RLA120

1200 75 457 1/8 L1

PM75RLB120

1200 75 457 1/8 L2

PM100CLA120

1200 100 595 1/9 L3

PM100RLA120

1200 100 595 1/9 L3

PM150CLA120

1200 150 781 1/9 L3

PM150RLA120

1200 150 781 1/9 L3

PM200CLA120

1200 200 1041 2,1 L4

PM300CLA120

1200 300 1562 2,1 L4

PM450CLA120

1200 450 2500 2,1 L4

OC - over-current prot. protecție la suprasarcină
SC - short-circuit prot. protectie la scurtcircuit
OT - over-temp. prot. protecție împotriva temperaturii
UV - under-voltage lock prot. protecție sub tensiune
SimbolFuncții interne
C Sistem IGBT 3 faze cu control și protecție OC / SC / OT / UV
R Sistem IGBT 3 faze cu control, frână și protecție OC / SC / OT / UV


Fig. L1
Fig. L2
PM50CLA060, PM50RLA060, PM75CLA060, PM75RLA060, PM100CLA060, PM100RLA060, PM150CLA060, PM150RLA060, PM25CLA120, PM25RLA120, PM50CLA120, PM50RLA120, PM75CLA120, PM75RLA120 PM50CLB060, PM50RLB060, PM75CLB060, PM75RLB060, PM25CLB120, PM25RLB120, PM50CLB120, PM50RLB120, PM75CLB120, PM75RLB120
Fig. L3
Fig. L4
PM200CLA060, PM200RLA060, PM300CLA060, PM300RLA060 ,PM100CLA120 ,PM100RLA120, PM150CLA120, PM150RLA120 PM450CLA060, PM600CLA060, PM200CLA120, PM300CLA120, PM450CLA120
