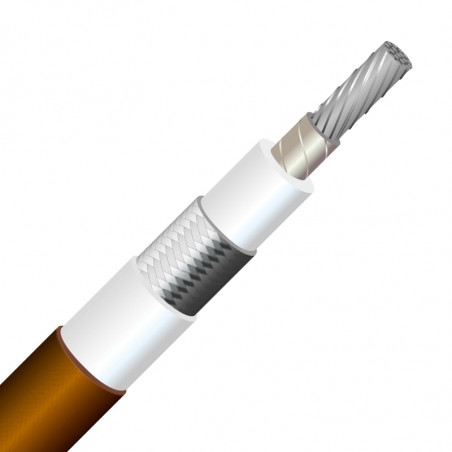

SILICOUL® SCR 3.7 kV -60 °C la +180 °C
  • SILICOUL® SCR 3.7 kV -60 °C la +180 °C

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: OMERIN

SILICOUL® SCR 3.7 kV -60 °C la +180 °C

General characteristics

  • Continuous operating temperature: -60 °C to +180 °C.
  • Good resistance to oil and hydrocarbons.
  • Good mechanical strength.


Electrical characteristics

  • Rated voltage: 3.7 kV.
  • Test voltage: 10 kV.


Approvals – standards

  • Compliance with the standards : IEC 60228, IEC 60331-11/21, IEC 60332-1-1/2, IEC 60332-3-22 category A and IEC 60754-2


Applications

  • All industrial applications for which power cables can be submitted to electromagnetic disturbances.
  • Cabling for rotating machines: motors, alternators, generators.
  • Cabling for static machines: transformers, inductors, inverters, choppers.
  • Power cabinets.


Standard products

  • Standard insulation colour: white.
  • Standard sheath colour: white.
  • Standard reinforcing braid colour: brown.


Options

  • Extra-flexible tin-plated copper core – class 6 as per IEC 60228: contact us.
  • Flexible or extra-flexible bare copper, silver-plated or nickel-plated copper core – class 5 or 6 as per IEC 60228: contact us.
  • Outer flexible armour: > Galvanised steel braid (ref. SILICOUL® SCR BG 3.7 kV): contact us. > Stainless steel braid (ref. SILICOUL® SCR BI 3.7 kV): contact us.
  • Multi-conductor cable made up of an assembly of several single conductor cables SILICOUL® SCR 3.7 kV: contact us.
  • Outer marking: contact us.
  • Other colours: contact us.
  • Other nominal cross-sections: contact us.
  • Other options and/or combinations of the options outlined above: contact us.
