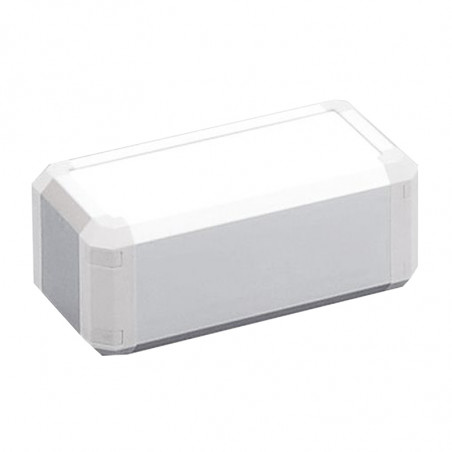

FC - carcasă de control din profile de aluminiu

Parametri:

  • locuință disponibilă în 175 de dimensiuni
  • proiectare simplă a profilului din aluminiu, colțuri ABS și placă de montare
  • ideal pentru construirea unui panou tactil

Aplicații

FC - obudowa sterownicza z profili aluminiowych aplikacje

Desen de asamblareFC - obudowa sterownicza z profili aluminiowych rusinek montażowy
Nr Numele componentei Buc. Material Culoare / Finisare
1 Partea laterală a carcasei 4 Profil aluminiu Argintiu / Negru / Anodizat
2 Colțuri 4 ABS Gri deschis / negru
3 Capacele șuruburilor 8 TPE Gri deschis / negru
4 Panoul din spate 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Negru
5 Panoul frontal 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Negru
6 Șuruburi 1 set Oțel , M3 si M4 Placate cu nichel și cromate

FC4 (H=37,9 mm) Dimensiuni:

Desene CAD disponibile la cerereFC - obudowa sterownicza z profili aluminiowych

FC5 - FC6 - FC8 - FC10 - FC13 - FC15 Dimensiuni:

Desene CAD disponibile la cerereFC - obudowa sterownicza z profili aluminiowych wymiary

Cod culoare

GS

BS

BX

BB
FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie

Panou    : argint
Corp  : argint
Colț: Gri

Panou    : argint
Corp  : argint
Colț: Negru

Panou    : argint
Corp  : negru
Colț: Negru

Panou    : negru
Corp  : negru
Colț: Negru

Când comandați, vă rugăm să introduceți codul de culoare într-un spațiu gol.


Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 4- 9- 9

 37.9 90 90 0.17 4

FC 4-14- 9

 37.9 140 90 0.24 4

FC 4-14-14

 37.9 140 140 0.33 4

FC 4-19- 9

 37.9 190 90 0.31 4

FC 4-19-14

 37.9 190 140 0.50 4

FC 4-19-19

 37.9 190 190 0.53 4

FC 4-24-14

 37.9 240 140 0.51 4

FC 4-24-19

 37.9 240 190 0.64 4

FC 4-24-24

 37.9 240 240 0.78 4

FC 4-29-14

 37.9 290 140 0.60 4

FC 4-29-19

 37.9 290 190 0.75 4

FC 4-29-24

 37.9 290 240 0.91 4

FC 4-29-29

 37.9 290 290 1.07 4

FC 4-34-19

 37.9 340 190 0.87 4

FC 4-34-24

 37.9 340 240 1.04 4

FC 4-34-29

 37.9 340 290 0.94 4

FC 4-39-19

 37.9 390 190 0.97 6

FC 4-39-24

 37.9 390 240 1.17 6

FC 4-39-29

 37.9 390 290 1.37 6

FC 4-39-39

 37.9 390 390 1.77 8

FC 4-49-24

 37.9 490 240 1.39 6

FC 4-49-29

 37.9 490 290 1.64 6

FC 4-49-39

 37.9 490 390 2.12 8

FC 4-59-29

 37.9 590 290 1.92 6

FC 4-59-39

 37.9 590 390 2.46 8

FC 5-10-10

 50.4 100 100 0.24 4

FC 5-15-10

 50.4 150 100 0.33 4

FC 5-15-15

 50.4 150 150 0.44 4

FC 5-20-10

 50.4 200 100 0.42 4

FC 5-20-15

 50.4 200 150 0.55 4

FC 5-20-20

 50.4 200 200 0.68 4

FC 5-25-15

 50.4 250 150 0.66 4

FC 5-25-20

 50.4 250 200 0.81 4

FC 5-25-25

 50.4 250 250 0.97 4

FC 5-30-15

 50.4 300 150 0.77 4

FC 5-30-20

 50.4 300 200 0.94 4

FC 5-30-25

 50.4 300 250 1.11 4

FC 5-30-30

 50.4 300 300 1.29 4

FC 5-35-20

 50.4 350 200 1.07 4

FC 5-35-25

 50.4 350 250 1.26 4

FC 5-35-30

 50.4 350 300 1.46 4

FC 5-40-20

 50.4 400 200 1.20 6

FC 5-40-25

 50.4 400 250 1.42 6

FC 5-40-30

 50.4 400 300 1.64 6
Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 5-40-40

50.4 400 400 2.07 8

FC 5-50-25

 50.4 500 250 1.66 6

FC 5-50-30

 50.4 500 300 1.92 6

FC 5-50-40

50.4 500 400 2.44 8

FC 5-60-30

 50.4 600 300 2.22 6

FC 5-60-40

 50.4 600 400 2.81 8

FC 6-10-10

 62.9 100 100 0.26 4

FC 6-15-10

 62.9 150 100 0.35 4

FC 6-15-15

 62.9 150 150 0.47 4

FC 6-20-10

 62.9 200 100 0.45 4

FC 6-20-15

 62.9 200 150 0.58 4

FC 6-20-20

 62.9 200 200 0.72 4

FC 6-25-15

 62.9 250 150 0.70 4

FC 6-25-20

 62.9 250 200 0.85 4

FC 6-25-25

 62.9 250 250 1.01 4

FC 6-30-15

 62.9 300 150 0.81 4

FC 6-30-20

 62.9 300 200 0.99 4

FC 6-30-25

 62.9 300 250 1.16 4

FC 6-30-30

 62.9 300 300 1.35 4

FC 6-35-20

 62.9 350 200 1.12 4

FC 6-35-25

 62.9 350 250 1.32 4

FC 6-35-30

 62.9 350 300 1.52 4

FC 6-40-20

 62.9 400 200 1.25 6

FC 6-40-25

 62.9 400 250 1.47 6

FC 6-40-30

 62.9 400 300 1.70 6

FC 6-40-40

 62.9 400 400 2.15 8

FC 6-50-25

 62.9 500 250 1.72 6

FC 6-50-30

 62.9 500 300 1.99 6

FC 6-50-40

 62.9 500 400 2.52 8

FC 6-60-30

 62.9 600 300 2.29 6

FC 6-60-40

 62.9 600 400 2.43 8

FC 8-10-10

 75.4 100 100 0.28 4

FC 8-15-10

 75.4 150 100 0.38 4

FC 8-15-15

 75.4 150 150 0.50 4

FC 8-20-10

 75.4 200 100 0.48 4

FC 8-20-15

 75.4 200 150 0.62 4

FC 8-20-20

 75.4 200 200 0.76 4

FC 8-25-15

 75.4 250 150 0.74 4

FC 8-25-20

 75.4 250 200 0.90 4

FC 8-25-25

 75.4 250 250 1.07 4

FC 8-30-15

 75.4 300 150 0.86 4

FC 8-30-20

 75.4 300 200 1.04 4

FC 8-30-25

 75.4 300 250 1.23 4

FC 8-30-30

 75.4 300 300 1.42 4

Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 8-35-20

 75.4 350 200 1.19 4

FC 8-35-25

 75.4 350 250 1.39 4

FC 8-35-30

 75.4 350 300 1.51 4

FC 8-40-20

 75.4 400 200 1.32 6

FC 8-40-25

 75.4 400 250 1.46 6

FC 8-40-30

 75.4 400 300 1.78 6

FC 8-40-40

 75.4 400 400 2.24 8

FC 8-50-25

 75.4 500 250 1.81 6

FC 8-50-30

 75.4 500 300 2.08 6

FC 8-50-40

 75.4 500 400 2.62 8

FC 8-60-30

 75.4 600 300 2.39 6

FC 8-60-40

 75.4 600 400 3.00 8

FC10-10-10

 100.4 100 100 0.31 4

FC10-15-10

 100.4 150 100 0.43 4

FC10-15-15

 100.4 150 150 0.56 4

FC10-20-10

 100.4 200 100 0.54 4

FC10-20-15

 100.4 200 150 0.70 4

FC10-20-20

 100.4 200 200 0.85 4

FC10-25-15

 100.4 250 150 0.83 4

FC10-25-20

 100.4 250 200 1.01 4

FC10-25-25

 100.4 250 250 1.19 4

FC10-30-15

 100.4 300 150 0.97 4

FC10-30-20

 100.4 300 200 1.16 4

FC10-30-25

 100.4 300 250 1.36 4

FC10-30-30

 100.4 300 300 1.57 4

FC10-35-20

 100.4 350 200 1.32 4

FC10-35-25

 100.4 350 250 1.54 4

FC10-35-30

 100.4 350 300 1.77 4

FC10-40-20

 100.4 400 200 1.47 6

FC10-40-25

 100.4 400 250 1.72 6

FC10-40-30

 100.4 400 300 1.96 6

FC10-40-40

 100.4 400 400 2.45 8

FC10-50-25

 100.4 500 250 1.99 6

FC10-50-30

 100.4 500 300 2.27 6

FC10-50-40

 100.4 500 400 2.84 8

FC10-60-30

 100.4 600 300 2.60 6

FC10-60-40

 100.4 600 400 2.70 8

FC13-10-10

 125.4 100 100 0.35 4

FC13-15-10

 125.4 150 100 0.47 4

FC13-15-15

 125.4 150 150 0.61 4

FC13-20-10

 125.4 200 100 0.59 4

FC13-20-15

 125.4 200 150 0.75 4

FC13-20-20

 125.4 200 200 0.92 4

FC13-25-15

 125.4 250 150 0.90 4
Nr Catalog H W D Greutate [kg] Bucla de fixare a șuruburilor din panou.

FC13-25-20

 125.4 250 200 1.08 4

FC13-25-25

 125.4 250 250 1.27 4

FC13-30-15

 125.4 300 150 1.04 4

FC13-30-20

 125.4 300 200 1.24 4

FC13-30-25

 125.4 300 250 1.44 4

FC13-30-30

 125.4 300 300 1.66 4

FC13-35-20

 125.4 350 200 1.40 4

FC13-35-25

 125.4 350 250 1.63 4

FC13-35-30

 125.4 350 300 1.86 4

FC13-40-20

 125.4 400 200 1.56 6

FC13-40-25

 125.4 400 250 1.81 6

FC13-40-30

 125.4 400 300 2.06 6

FC13-40-40

 125.4 400 400 2.56 8

FC13-50-25

 125.4 500 250 2.09 6

FC13-50-30

 125.4 500 300 2.38 6

FC13-50-40

 125.4 500 400 2.96 8

FC13-60-30

 125.4 600 300 2.89 6

FC13-60-40

 125.4 600 400 3.36 8

FC15-10-10

 150.4 100 100 0.40 4

FC15-15-10

 150.4 150 100 0.54 4

FC15-15-15

 150.4 150 150 0.70 4

FC15-20-10

 150.4 200 100 0.68 4

FC15-20-15

 150.4 200 150 0.85 4

FC15-20-20

 150.4 200 200 1.04 4

FC15-25-15

 150.4 250 150 1.02 4

FC15-25-20

 150.4 250 200 1.22 4

FC15-25-25

 150.4 250 250 1.42 4

FC15-30-15

 150.4 300 150 1.17 4

FC15-30-20

 150.4 300 200 1.40 4

FC15-30-25

 150.4 300 250 1.62 4

FC15-30-30

 150.4 300 300 1.85 4

FC15-35-20

 150.4 350 200 1.58 4

FC15-35-25

 150.4 350 250 1.82 4

FC15-35-30

 150.4 350 300 2.07 4

FC15-40-20

 150.4 400 200 1.76 6

FC15-40-25

 150.4 400 250 2.02 6

FC15-40-30

 150.4 400 300 2.29 6

FC15-40-40

 150.4 400 400 2.83 8

FC15-50-25

 150.4 500 250 2.32 6

FC15-50-30

 150.4 500 300 2.63 6

FC15-50-40

 150.4 500 400 3.25 8

FC15-60-30

 150.4 600 300 2.98 6

FC15-60-40

 150.4 600 400 3.66 8


FCW carcasă de control din profile de aluminiu cu un panou deschis

Parametri:

  • locuințe disponibile în 108 dimensiuni
  • sistem de deschidere și închidere ușor de întreținut cu și fără cheie
  • ideal pentru construirea unui panou tactil
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem


FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem

Nr Nume componente Buc. Material Culoare / Finisare
1 Partea laterală a carcasei 4 Profil aluminiu Argintiu / Negru / Anodizat
2 Colțuri 4 ABS Gri deschis / negru
3 Capacele șuruburilor 8 TPE Gri deschis / negru
4 Panoul din spate 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Czarny
5 Panou cu balamale 1 Aluminiu t2.0 Argint anodizat / luciu ridicat
Aluminiu t2.0 Negru
6 Blocare 1 set Oțel zincat Argintiu / negru
7 Planare 1 set Zinc de oțel Argintiu / negru
8 Șuruburi 1 set Oțel M3 si M4 Placate cu nichel și cromate
−

Șaibe de protecție

 6 Poliuretan poliolină Ø 10 Negru

Versiunea de blocare

N: Nicio cheie

 K: Cu o cheie
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem wersja zamka 1 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem 2 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem 3 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem

Cod culoare

GS

BS

BX

BB
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem gs FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bs FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bx FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bb

Panou: argint
Corp: argint
Colț: Gri
Încuietoare: argint

Panou: argint
Corp: argint
Colț: Negru
Încuietoare: argint

Panou: argint
Corp: negru
Colț: Negru
Castelul: negru

Panou: negru
Corp: negru
Colț: Negru
Castelul: negru

FCW Dimensiuni:

Desene CAD disponibile la cerere


Blocare - 1 bucată, balamală - 2 bucățiFCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem zamek 1 sz, zawias 2sz

Blocare - 2 buc, balamală - 3 bucFCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem zamek 2szt, zawias 3szt

Comandă probă:
FCW 5 − 20 − 15 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem fcw5-20-15 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem kod
  Versiunea de blocare

Cod de culoare

(GS, BS, BX, BB)

Nr Catalog H W D Greutate
[kg]		 Buc. Încuietori Buc. Balamale

FCW5−15−20

 50,4 150 200 0,69 1 2

FCW5−15−25

 50,4 150 250 0,80 1 2

FCW5−20−15

 50,4 200 150 0,69 1 2

FCW5−20−20

 50,4 200 200 0,83 1 2

FCW5−20−25

 50,4 200 250 0,97 1 2

FCW5−20−30

 50,4 200 300 1,11 1 2

FCW5−25−25

 50,4 250 250 1,14 1 2

FCW5−25−30

 50,4 250 300 1,30 1 2

FCW5−25−40

 50,4 250 400 1,63 1 2

FCW5−30−20

 50,4 300 200 1,11 1 2

FCW5−30−30

 50,4 300 300 1,50 1 2

FCW5−30−40

 50,4 300 400 1,87 1 2

FCW5−30−50

 50,4 300 500 2,28 2 3

FCW5−35−25

 50,4 350 250 1,47 1 2

FCW5−40−30

 50,4 400 300 1,88 1 2

FCW5−40−40

 50,4 400 400 2,37 1 2

FCW5−40−50

 50,4 400 500 2,82 2 3

FCW5−40−60

 50,4 400 600 3,28 2 3

FCW6−15−20

 62,9 150 200 0,72 1 2

FCW6−15−25

 62,9 150 250 0,84 1 2

FCW6−20−15

 62,9 200 150 0,72 1 2

FCW6−20−20

 62,9 200 200 0,86 1 2

FCW6−20−25

 62,9 200 250 1,01 1 2

FCW6−20−30

 62,9 200 300 1,16 1 2

FCW6−25−25

 62,9 250 250 1,18 1 2

FCW6−25−30

 62,9 250 300 1,35 1 2

FCW6−25−40

 62,9 250 400 1,69 1 2

FCW6−30−20

 62,9 300 200 1,16 1 2

FCW6−30−30

 62,9 300 300 1,55 1 2

FCW6−30−40

 62,9 300 400 1,93 1 2

FCW6−30−50

 62,9 300 500 2,35 2 3

FCW6−35−25

 62,9 350 250 1,46 1 2

FCW6−40−30

 62,9 400 300 1,94 1 2

FCW6−40−40

 62,9 400 400 2,44 1 2

FCW6−40−50

 62,9 400 500 2,94 2 3

FCW6−40−60

 62,9 400 600 3,36 2 3

FCW8−15−20

 75,4 150 200 0,76 1 2

FCW8−15−25

 75,4 150 250 0,88 1 2

FCW8−20−15

 75,4 200 150 0,76 1 2

FCW8−20−20

 75,4 200 200 0,91 1 2

FCW8−20−25

 75,4 200 250 1,06 1 2

FCW8−20−30

 75,4 200 300 1,21 1 2

FCW8−25−25

 75,4 250 250 1,24 1 2

FCW8−25−30

 75,4 250 300 1,41 1 2

FCW8−25−40

 75,4 250 400 1,76 1 2

FCW8−30−20

 75,4 300 200 1,21 1 2

FCW8−30−30

 75,4 300 300 1,62 1 2

FCW8−30−40

 75,4 300 400 2,02 1 2

FCW8−30−50

 75,4 300 500 2,44 2 3

FCW8−35−25

 75,4 350 250 1,59 1 2

FCW8−40−30

 75,4 400 300 1,67 1 2

FCW8−40−40

 75,4 400 400 2,53 1 2

FCW8−40−50

 75,4 400 500 3,05 2 3

FCW8−40−60

 75,4 400 600 3,47 2 3
Nr Catalog H W D Greutate
[kg]		 Buc. Încuietori
Buc. Balamale


FCW10−15−20

 100,4 150 200 0,83 1 2

FCW10−15−25

 100,4 150 250 0,97 1 2

FCW10−20−15

 100,4 200 150 0,83 1 2

FCW10−20−20

 100,4 200 200 1,00 1 2

FCW10−20−25

 100,4 200 250 1,17 1 2

FCW10−20−30

 100,4 200 300 1,33 1 2

FCW10−25−25

 100,4 250 250 1,36 1 2

FCW10−25−30

 100,4 250 300 1,55 1 2

FCW10−25−40

 100,4 250 400 1,93 1 2

FCW10−30−20

 100,4 300 200 1,34 1 2

FCW10−30−30

 100,4 300 300 1,77 1 2

FCW10−30−40

 100,4 300 400 2,20 1 2

FCW10−30−50

 100,4 300 500 2,64 2 3

FCW10−35−25

 100,4 350 250 1,74 1 2

FCW10−40−30

 100,4 400 300 2,21 1 2

FCW10−40−40

 100,4 400 400 2,74 1 2

FCW10−40−50

 100,4 400 500 3,27 2 3

FCW10−40−60

 100,4 400 600 3,71 2 3

FCW13−15−20

 125,4 150 200 0,89 1 2

FCW13−15−25

 125,4 150 250 1,04 1 2

FCW13−20−15

 125,4 200 150 0,89 1 2

FCW13−20−20

 125,4 200 200 1,06 1 2

FCW13−20−25

 125,4 200 250 1,32 1 2

FCW13−20−30

 125,4 200 300 1,41 1 2

FCW13−25−25

 125,4 250 250 1,44 1 2

FCW13−25−30

 125,4 250 300 1,63 1 2

FCW13−25−40

 125,4 250 400 2,02 1 2

FCW13−30−20

 125,4 300 200 1,41 1 2

FCW13−30−30

 125,4 300 300 1,94 1 2

FCW13−30−40

 125,4 300 400 2,30 1 2

FCW13−30−50

 125,4 300 500 2,74 2 3

FCW13−35−25

 125,4 350 250 1,83 1 2

FCW13−40−30

 125,4 400 300 2,30 1 2

FCW13−40−40

 125,4 400 400 2,86 1 2

FCW13−40−50

 125,4 400 500 3,39 2 3

FCW13−40−60

 125,4 400 600 3,84 2 3

FCW15−15−20

 150,4 150 200 1,91 1 2

FCW15−15−25

 150,4 150 250 1,07 1 2

FCW15−20−15

 150,4 200 150 0,91 1 2

FCW15−20−20

 150,4 200 200 1,18 1 2

FCW15−20−25

 150,4 200 250 1,37 1 2

FCW15−20−30

 150,4 200 300 1,57 1 2

FCW15−25−25

 150,4 250 250 1,59 1 2

FCW15−25−30

 150,4 250 300 1,80 1 2

FCW15−25−40

 150,4 250 400 2,23 1 2

FCW15−30−20

 150,4 300 200 1,57 1 2

FCW15−30−30

 150,4 300 300 2,05 1 2

FCW15−30−40

 150,4 300 400 2,53 1 2

FCW15−30−50

 150,4 300 500 2,99 2 3

FCW15−35−25

 150,4 350 250 2,02 1 2

FCW15−40−30

 150,4 400 300 2,53 1 2

FCW15−40−40

 150,4 400 400 3,12 1 2

FCW15−40−50

 150,4 400 500 3,68 2 3

FCW15−40−60

 150,4 400 600 4,14 2 3

Accesorii

Placă de montare

Suporturi de montare pe placă

Șină DIN

Picioare de cauciuc
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem plyta montazowa FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem akcesoria uchwyty FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem szyna din FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem stopki gumowe
mai puțin
Citeste mai mult

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga
trimite o anchetă

Adaugă la lista de dorințe

trebuie să fii logat

FC - carcasă de control din profile de aluminiu

Parametri:

  • locuință disponibilă în 175 de dimensiuni
  • proiectare simplă a profilului din aluminiu, colțuri ABS și placă de montare
  • ideal pentru construirea unui panou tactil

Aplicații

FC - obudowa sterownicza z profili aluminiowych aplikacje

Desen de asamblareFC - obudowa sterownicza z profili aluminiowych rusinek montażowy
Nr Numele componentei Buc. Material Culoare / Finisare
1 Partea laterală a carcasei 4 Profil aluminiu Argintiu / Negru / Anodizat
2 Colțuri 4 ABS Gri deschis / negru
3 Capacele șuruburilor 8 TPE Gri deschis / negru
4 Panoul din spate 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Negru
5 Panoul frontal 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Negru
6 Șuruburi 1 set Oțel , M3 si M4 Placate cu nichel și cromate

FC4 (H=37,9 mm) Dimensiuni:

Desene CAD disponibile la cerereFC - obudowa sterownicza z profili aluminiowych

FC5 - FC6 - FC8 - FC10 - FC13 - FC15 Dimensiuni:

Desene CAD disponibile la cerereFC - obudowa sterownicza z profili aluminiowych wymiary

Cod culoare

GS

BS

BX

BB
FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie FC - obudowa sterownicza z profili aluminiowych GS zamowienie

Panou    : argint
Corp  : argint
Colț: Gri

Panou    : argint
Corp  : argint
Colț: Negru

Panou    : argint
Corp  : negru
Colț: Negru

Panou    : negru
Corp  : negru
Colț: Negru

Când comandați, vă rugăm să introduceți codul de culoare într-un spațiu gol.


Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 4- 9- 9

 37.9 90 90 0.17 4

FC 4-14- 9

 37.9 140 90 0.24 4

FC 4-14-14

 37.9 140 140 0.33 4

FC 4-19- 9

 37.9 190 90 0.31 4

FC 4-19-14

 37.9 190 140 0.50 4

FC 4-19-19

 37.9 190 190 0.53 4

FC 4-24-14

 37.9 240 140 0.51 4

FC 4-24-19

 37.9 240 190 0.64 4

FC 4-24-24

 37.9 240 240 0.78 4

FC 4-29-14

 37.9 290 140 0.60 4

FC 4-29-19

 37.9 290 190 0.75 4

FC 4-29-24

 37.9 290 240 0.91 4

FC 4-29-29

 37.9 290 290 1.07 4

FC 4-34-19

 37.9 340 190 0.87 4

FC 4-34-24

 37.9 340 240 1.04 4

FC 4-34-29

 37.9 340 290 0.94 4

FC 4-39-19

 37.9 390 190 0.97 6

FC 4-39-24

 37.9 390 240 1.17 6

FC 4-39-29

 37.9 390 290 1.37 6

FC 4-39-39

 37.9 390 390 1.77 8

FC 4-49-24

 37.9 490 240 1.39 6

FC 4-49-29

 37.9 490 290 1.64 6

FC 4-49-39

 37.9 490 390 2.12 8

FC 4-59-29

 37.9 590 290 1.92 6

FC 4-59-39

 37.9 590 390 2.46 8

FC 5-10-10

 50.4 100 100 0.24 4

FC 5-15-10

 50.4 150 100 0.33 4

FC 5-15-15

 50.4 150 150 0.44 4

FC 5-20-10

 50.4 200 100 0.42 4

FC 5-20-15

 50.4 200 150 0.55 4

FC 5-20-20

 50.4 200 200 0.68 4

FC 5-25-15

 50.4 250 150 0.66 4

FC 5-25-20

 50.4 250 200 0.81 4

FC 5-25-25

 50.4 250 250 0.97 4

FC 5-30-15

 50.4 300 150 0.77 4

FC 5-30-20

 50.4 300 200 0.94 4

FC 5-30-25

 50.4 300 250 1.11 4

FC 5-30-30

 50.4 300 300 1.29 4

FC 5-35-20

 50.4 350 200 1.07 4

FC 5-35-25

 50.4 350 250 1.26 4

FC 5-35-30

 50.4 350 300 1.46 4

FC 5-40-20

 50.4 400 200 1.20 6

FC 5-40-25

 50.4 400 250 1.42 6

FC 5-40-30

 50.4 400 300 1.64 6
Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 5-40-40

50.4 400 400 2.07 8

FC 5-50-25

 50.4 500 250 1.66 6

FC 5-50-30

 50.4 500 300 1.92 6

FC 5-50-40

50.4 500 400 2.44 8

FC 5-60-30

 50.4 600 300 2.22 6

FC 5-60-40

 50.4 600 400 2.81 8

FC 6-10-10

 62.9 100 100 0.26 4

FC 6-15-10

 62.9 150 100 0.35 4

FC 6-15-15

 62.9 150 150 0.47 4

FC 6-20-10

 62.9 200 100 0.45 4

FC 6-20-15

 62.9 200 150 0.58 4

FC 6-20-20

 62.9 200 200 0.72 4

FC 6-25-15

 62.9 250 150 0.70 4

FC 6-25-20

 62.9 250 200 0.85 4

FC 6-25-25

 62.9 250 250 1.01 4

FC 6-30-15

 62.9 300 150 0.81 4

FC 6-30-20

 62.9 300 200 0.99 4

FC 6-30-25

 62.9 300 250 1.16 4

FC 6-30-30

 62.9 300 300 1.35 4

FC 6-35-20

 62.9 350 200 1.12 4

FC 6-35-25

 62.9 350 250 1.32 4

FC 6-35-30

 62.9 350 300 1.52 4

FC 6-40-20

 62.9 400 200 1.25 6

FC 6-40-25

 62.9 400 250 1.47 6

FC 6-40-30

 62.9 400 300 1.70 6

FC 6-40-40

 62.9 400 400 2.15 8

FC 6-50-25

 62.9 500 250 1.72 6

FC 6-50-30

 62.9 500 300 1.99 6

FC 6-50-40

 62.9 500 400 2.52 8

FC 6-60-30

 62.9 600 300 2.29 6

FC 6-60-40

 62.9 600 400 2.43 8

FC 8-10-10

 75.4 100 100 0.28 4

FC 8-15-10

 75.4 150 100 0.38 4

FC 8-15-15

 75.4 150 150 0.50 4

FC 8-20-10

 75.4 200 100 0.48 4

FC 8-20-15

 75.4 200 150 0.62 4

FC 8-20-20

 75.4 200 200 0.76 4

FC 8-25-15

 75.4 250 150 0.74 4

FC 8-25-20

 75.4 250 200 0.90 4

FC 8-25-25

 75.4 250 250 1.07 4

FC 8-30-15

 75.4 300 150 0.86 4

FC 8-30-20

 75.4 300 200 1.04 4

FC 8-30-25

 75.4 300 250 1.23 4

FC 8-30-30

 75.4 300 300 1.42 4

Nr Catalog H W D Greutate
[kg]		 Bucla de fixare a șuruburilor din panou.

FC 8-35-20

 75.4 350 200 1.19 4

FC 8-35-25

 75.4 350 250 1.39 4

FC 8-35-30

 75.4 350 300 1.51 4

FC 8-40-20

 75.4 400 200 1.32 6

FC 8-40-25

 75.4 400 250 1.46 6

FC 8-40-30

 75.4 400 300 1.78 6

FC 8-40-40

 75.4 400 400 2.24 8

FC 8-50-25

 75.4 500 250 1.81 6

FC 8-50-30

 75.4 500 300 2.08 6

FC 8-50-40

 75.4 500 400 2.62 8

FC 8-60-30

 75.4 600 300 2.39 6

FC 8-60-40

 75.4 600 400 3.00 8

FC10-10-10

 100.4 100 100 0.31 4

FC10-15-10

 100.4 150 100 0.43 4

FC10-15-15

 100.4 150 150 0.56 4

FC10-20-10

 100.4 200 100 0.54 4

FC10-20-15

 100.4 200 150 0.70 4

FC10-20-20

 100.4 200 200 0.85 4

FC10-25-15

 100.4 250 150 0.83 4

FC10-25-20

 100.4 250 200 1.01 4

FC10-25-25

 100.4 250 250 1.19 4

FC10-30-15

 100.4 300 150 0.97 4

FC10-30-20

 100.4 300 200 1.16 4

FC10-30-25

 100.4 300 250 1.36 4

FC10-30-30

 100.4 300 300 1.57 4

FC10-35-20

 100.4 350 200 1.32 4

FC10-35-25

 100.4 350 250 1.54 4

FC10-35-30

 100.4 350 300 1.77 4

FC10-40-20

 100.4 400 200 1.47 6

FC10-40-25

 100.4 400 250 1.72 6

FC10-40-30

 100.4 400 300 1.96 6

FC10-40-40

 100.4 400 400 2.45 8

FC10-50-25

 100.4 500 250 1.99 6

FC10-50-30

 100.4 500 300 2.27 6

FC10-50-40

 100.4 500 400 2.84 8

FC10-60-30

 100.4 600 300 2.60 6

FC10-60-40

 100.4 600 400 2.70 8

FC13-10-10

 125.4 100 100 0.35 4

FC13-15-10

 125.4 150 100 0.47 4

FC13-15-15

 125.4 150 150 0.61 4

FC13-20-10

 125.4 200 100 0.59 4

FC13-20-15

 125.4 200 150 0.75 4

FC13-20-20

 125.4 200 200 0.92 4

FC13-25-15

 125.4 250 150 0.90 4
Nr Catalog H W D Greutate [kg] Bucla de fixare a șuruburilor din panou.

FC13-25-20

 125.4 250 200 1.08 4

FC13-25-25

 125.4 250 250 1.27 4

FC13-30-15

 125.4 300 150 1.04 4

FC13-30-20

 125.4 300 200 1.24 4

FC13-30-25

 125.4 300 250 1.44 4

FC13-30-30

 125.4 300 300 1.66 4

FC13-35-20

 125.4 350 200 1.40 4

FC13-35-25

 125.4 350 250 1.63 4

FC13-35-30

 125.4 350 300 1.86 4

FC13-40-20

 125.4 400 200 1.56 6

FC13-40-25

 125.4 400 250 1.81 6

FC13-40-30

 125.4 400 300 2.06 6

FC13-40-40

 125.4 400 400 2.56 8

FC13-50-25

 125.4 500 250 2.09 6

FC13-50-30

 125.4 500 300 2.38 6

FC13-50-40

 125.4 500 400 2.96 8

FC13-60-30

 125.4 600 300 2.89 6

FC13-60-40

 125.4 600 400 3.36 8

FC15-10-10

 150.4 100 100 0.40 4

FC15-15-10

 150.4 150 100 0.54 4

FC15-15-15

 150.4 150 150 0.70 4

FC15-20-10

 150.4 200 100 0.68 4

FC15-20-15

 150.4 200 150 0.85 4

FC15-20-20

 150.4 200 200 1.04 4

FC15-25-15

 150.4 250 150 1.02 4

FC15-25-20

 150.4 250 200 1.22 4

FC15-25-25

 150.4 250 250 1.42 4

FC15-30-15

 150.4 300 150 1.17 4

FC15-30-20

 150.4 300 200 1.40 4

FC15-30-25

 150.4 300 250 1.62 4

FC15-30-30

 150.4 300 300 1.85 4

FC15-35-20

 150.4 350 200 1.58 4

FC15-35-25

 150.4 350 250 1.82 4

FC15-35-30

 150.4 350 300 2.07 4

FC15-40-20

 150.4 400 200 1.76 6

FC15-40-25

 150.4 400 250 2.02 6

FC15-40-30

 150.4 400 300 2.29 6

FC15-40-40

 150.4 400 400 2.83 8

FC15-50-25

 150.4 500 250 2.32 6

FC15-50-30

 150.4 500 300 2.63 6

FC15-50-40

 150.4 500 400 3.25 8

FC15-60-30

 150.4 600 300 2.98 6

FC15-60-40

 150.4 600 400 3.66 8


FCW carcasă de control din profile de aluminiu cu un panou deschis

Parametri:

  • locuințe disponibile în 108 dimensiuni
  • sistem de deschidere și închidere ușor de întreținut cu și fără cheie
  • ideal pentru construirea unui panou tactil
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem


FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem

Nr Nume componente Buc. Material Culoare / Finisare
1 Partea laterală a carcasei 4 Profil aluminiu Argintiu / Negru / Anodizat
2 Colțuri 4 ABS Gri deschis / negru
3 Capacele șuruburilor 8 TPE Gri deschis / negru
4 Panoul din spate 1 Aluminiu t1.5 Argint anodizat / luciu ridicat
Aluminiu t1.5 Czarny
5 Panou cu balamale 1 Aluminiu t2.0 Argint anodizat / luciu ridicat
Aluminiu t2.0 Negru
6 Blocare 1 set Oțel zincat Argintiu / negru
7 Planare 1 set Zinc de oțel Argintiu / negru
8 Șuruburi 1 set Oțel M3 si M4 Placate cu nichel și cromate
−

Șaibe de protecție

 6 Poliuretan poliolină Ø 10 Negru

Versiunea de blocare

N: Nicio cheie

 K: Cu o cheie
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem wersja zamka 1 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem 2 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem 3 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem

Cod culoare

GS

BS

BX

BB
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem gs FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bs FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bx FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem bb

Panou: argint
Corp: argint
Colț: Gri
Încuietoare: argint

Panou: argint
Corp: argint
Colț: Negru
Încuietoare: argint

Panou: argint
Corp: negru
Colț: Negru
Castelul: negru

Panou: negru
Corp: negru
Colț: Negru
Castelul: negru

FCW Dimensiuni:

Desene CAD disponibile la cerere


Blocare - 1 bucată, balamală - 2 bucățiFCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem zamek 1 sz, zawias 2sz

Blocare - 2 buc, balamală - 3 bucFCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem zamek 2szt, zawias 3szt

Comandă probă:
FCW 5 − 20 − 15 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem fcw5-20-15 FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem kod
  Versiunea de blocare

Cod de culoare

(GS, BS, BX, BB)

Nr Catalog H W D Greutate
[kg]		 Buc. Încuietori Buc. Balamale

FCW5−15−20

 50,4 150 200 0,69 1 2

FCW5−15−25

 50,4 150 250 0,80 1 2

FCW5−20−15

 50,4 200 150 0,69 1 2

FCW5−20−20

 50,4 200 200 0,83 1 2

FCW5−20−25

 50,4 200 250 0,97 1 2

FCW5−20−30

 50,4 200 300 1,11 1 2

FCW5−25−25

 50,4 250 250 1,14 1 2

FCW5−25−30

 50,4 250 300 1,30 1 2

FCW5−25−40

 50,4 250 400 1,63 1 2

FCW5−30−20

 50,4 300 200 1,11 1 2

FCW5−30−30

 50,4 300 300 1,50 1 2

FCW5−30−40

 50,4 300 400 1,87 1 2

FCW5−30−50

 50,4 300 500 2,28 2 3

FCW5−35−25

 50,4 350 250 1,47 1 2

FCW5−40−30

 50,4 400 300 1,88 1 2

FCW5−40−40

 50,4 400 400 2,37 1 2

FCW5−40−50

 50,4 400 500 2,82 2 3

FCW5−40−60

 50,4 400 600 3,28 2 3

FCW6−15−20

 62,9 150 200 0,72 1 2

FCW6−15−25

 62,9 150 250 0,84 1 2

FCW6−20−15

 62,9 200 150 0,72 1 2

FCW6−20−20

 62,9 200 200 0,86 1 2

FCW6−20−25

 62,9 200 250 1,01 1 2

FCW6−20−30

 62,9 200 300 1,16 1 2

FCW6−25−25

 62,9 250 250 1,18 1 2

FCW6−25−30

 62,9 250 300 1,35 1 2

FCW6−25−40

 62,9 250 400 1,69 1 2

FCW6−30−20

 62,9 300 200 1,16 1 2

FCW6−30−30

 62,9 300 300 1,55 1 2

FCW6−30−40

 62,9 300 400 1,93 1 2

FCW6−30−50

 62,9 300 500 2,35 2 3

FCW6−35−25

 62,9 350 250 1,46 1 2

FCW6−40−30

 62,9 400 300 1,94 1 2

FCW6−40−40

 62,9 400 400 2,44 1 2

FCW6−40−50

 62,9 400 500 2,94 2 3

FCW6−40−60

 62,9 400 600 3,36 2 3

FCW8−15−20

 75,4 150 200 0,76 1 2

FCW8−15−25

 75,4 150 250 0,88 1 2

FCW8−20−15

 75,4 200 150 0,76 1 2

FCW8−20−20

 75,4 200 200 0,91 1 2

FCW8−20−25

 75,4 200 250 1,06 1 2

FCW8−20−30

 75,4 200 300 1,21 1 2

FCW8−25−25

 75,4 250 250 1,24 1 2

FCW8−25−30

 75,4 250 300 1,41 1 2

FCW8−25−40

 75,4 250 400 1,76 1 2

FCW8−30−20

 75,4 300 200 1,21 1 2

FCW8−30−30

 75,4 300 300 1,62 1 2

FCW8−30−40

 75,4 300 400 2,02 1 2

FCW8−30−50

 75,4 300 500 2,44 2 3

FCW8−35−25

 75,4 350 250 1,59 1 2

FCW8−40−30

 75,4 400 300 1,67 1 2

FCW8−40−40

 75,4 400 400 2,53 1 2

FCW8−40−50

 75,4 400 500 3,05 2 3

FCW8−40−60

 75,4 400 600 3,47 2 3
Nr Catalog H W D Greutate
[kg]		 Buc. Încuietori
Buc. Balamale


FCW10−15−20

 100,4 150 200 0,83 1 2

FCW10−15−25

 100,4 150 250 0,97 1 2

FCW10−20−15

 100,4 200 150 0,83 1 2

FCW10−20−20

 100,4 200 200 1,00 1 2

FCW10−20−25

 100,4 200 250 1,17 1 2

FCW10−20−30

 100,4 200 300 1,33 1 2

FCW10−25−25

 100,4 250 250 1,36 1 2

FCW10−25−30

 100,4 250 300 1,55 1 2

FCW10−25−40

 100,4 250 400 1,93 1 2

FCW10−30−20

 100,4 300 200 1,34 1 2

FCW10−30−30

 100,4 300 300 1,77 1 2

FCW10−30−40

 100,4 300 400 2,20 1 2

FCW10−30−50

 100,4 300 500 2,64 2 3

FCW10−35−25

 100,4 350 250 1,74 1 2

FCW10−40−30

 100,4 400 300 2,21 1 2

FCW10−40−40

 100,4 400 400 2,74 1 2

FCW10−40−50

 100,4 400 500 3,27 2 3

FCW10−40−60

 100,4 400 600 3,71 2 3

FCW13−15−20

 125,4 150 200 0,89 1 2

FCW13−15−25

 125,4 150 250 1,04 1 2

FCW13−20−15

 125,4 200 150 0,89 1 2

FCW13−20−20

 125,4 200 200 1,06 1 2

FCW13−20−25

 125,4 200 250 1,32 1 2

FCW13−20−30

 125,4 200 300 1,41 1 2

FCW13−25−25

 125,4 250 250 1,44 1 2

FCW13−25−30

 125,4 250 300 1,63 1 2

FCW13−25−40

 125,4 250 400 2,02 1 2

FCW13−30−20

 125,4 300 200 1,41 1 2

FCW13−30−30

 125,4 300 300 1,94 1 2

FCW13−30−40

 125,4 300 400 2,30 1 2

FCW13−30−50

 125,4 300 500 2,74 2 3

FCW13−35−25

 125,4 350 250 1,83 1 2

FCW13−40−30

 125,4 400 300 2,30 1 2

FCW13−40−40

 125,4 400 400 2,86 1 2

FCW13−40−50

 125,4 400 500 3,39 2 3

FCW13−40−60

 125,4 400 600 3,84 2 3

FCW15−15−20

 150,4 150 200 1,91 1 2

FCW15−15−25

 150,4 150 250 1,07 1 2

FCW15−20−15

 150,4 200 150 0,91 1 2

FCW15−20−20

 150,4 200 200 1,18 1 2

FCW15−20−25

 150,4 200 250 1,37 1 2

FCW15−20−30

 150,4 200 300 1,57 1 2

FCW15−25−25

 150,4 250 250 1,59 1 2

FCW15−25−30

 150,4 250 300 1,80 1 2

FCW15−25−40

 150,4 250 400 2,23 1 2

FCW15−30−20

 150,4 300 200 1,57 1 2

FCW15−30−30

 150,4 300 300 2,05 1 2

FCW15−30−40

 150,4 300 400 2,53 1 2

FCW15−30−50

 150,4 300 500 2,99 2 3

FCW15−35−25

 150,4 350 250 2,02 1 2

FCW15−40−30

 150,4 400 300 2,53 1 2

FCW15−40−40

 150,4 400 400 3,12 1 2

FCW15−40−50

 150,4 400 500 3,68 2 3

FCW15−40−60

 150,4 400 600 4,14 2 3

Accesorii

Placă de montare

Suporturi de montare pe placă

Șină DIN

Picioare de cauciuc
FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem plyta montazowa FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem akcesoria uchwyty FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem szyna din FCW - obudowa sterownicza z profili aluminiowych z otwieranym panelem stopki gumowe
mai puțin
Citeste mai mult
Comentarii (0)
