Contor cu umiditate HN-CH și funcție de înregistrare a temperaturii

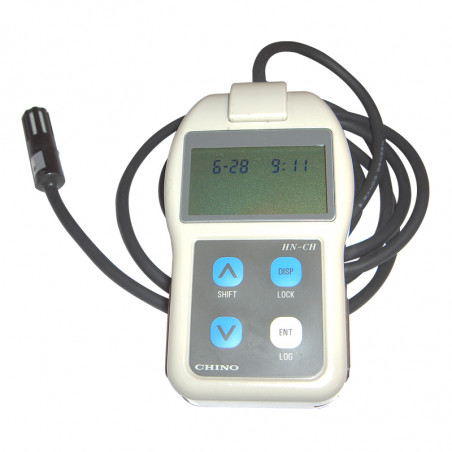

Humidity and temperature meter HN-CH

The HN-CH meter is designed for measuring and recording humidity and temperature. The device's internal memory can store 8000 humidity and temperature measurement results. The device measures humidity within the range 0...100%RH and temperature within the range -40 °C to 80 °C. A built in interface enables sending of the measurement results to a computer program.


Applications

  • food process control;
  • pharmaceutical warehouses;
  • laboratories;
  • transport of temperature-sensitive goods;
  • testing and adjusting HVAC systems.


Technical data

Dimensions 64 x 113 x 32 mm
Weight 140 g
Battery alkaline battery AA or 100-240 VAC (optionally with AC power supply)
Operating temperature
 -10...50 °C
Display LCD, displays measurement results and current date and time
Communications interface RS232 or RS485
Software requirements
 Windows 95 or newer
Implemented functions
 lower and upper alarm threshold
minimum, maximum values and their time of occurrence
power status indication
Sensor range
 temperature: -40... 80 °C
humidity: 0 ... 100%rh
Sensor accuracy
temperature: 0.5 °C
humidity: ±2%
Memory
 8000 measurements
Sampling period
 programmable in range 1 ...60 minutes
Number of channels
 one, internal sensor
Alarm threshold
 programmable
Warranty 1 year


Dimensions [mm]


Product Number

MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH numer katalogow
 MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH typ czujnika
MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH interfejs komunikacyjny
