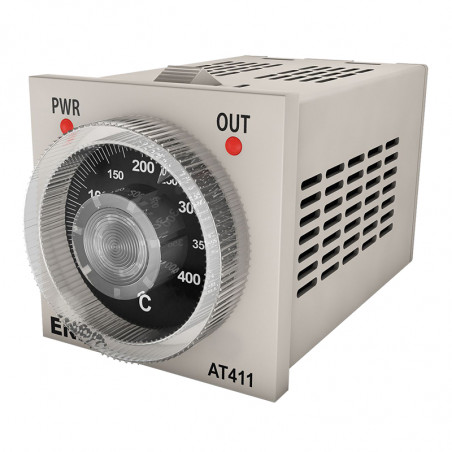

The AT411 analog controller is a Sisel brand specialized temperature controller that is great for most specialty industries.
Technical data - analog temperature contoller AT411
Accuracy | ±3% (full scale) |
Measurement range |
Fe-Const: 0 ... 300 °C Pt 100: 0 ... 400 °C |
Fe-Const: 0 ... 400 °C | |
Input type |
Thermocouple Fe-Const or Pt100 (select during ordering) |
Output | Relay: 250VAC, 2A, NC+NO Logic: 0/12V DC, 20mA |
Power supply |
230V AC +15%, -20%, 50/60Hz, max 2W; 24V AC ±10%, 50/60Hz (select during ordering) |
Ambient temperature | 0 ... 50 °C |
Dimensions [mm] |
48 x 48 x 82 |
Connection | round 8-pin socket |
Lifetime | 30.000.000 mechanical operations; 300.000 electrical operations. |
Regulation type |
ON-OFF or proportional |
Weight | 170 g |
Types of analog temperature controller AT411
Type | Power supply | Output | Range | Sensor type |
---|---|---|---|---|
AT411-400R | 230VAC | Relay | 0 - 400 °C | Pt100 |
AT411-400R-SM | 7 - 24 VAC / 9 - 30VDC | Relay | 0 - 400 °C | Pt100 |
AT411-400R-SSR | 230VAC | Logic | 0 - 400 °C | Pt100 |
AT411-400R-SM-SSR | 7 - 24 VAC / 9 - 30VDC | Logic | 0 - 400 °C | Pt100 |
AT411-400F | 230V AC | Relay | 0 - 400 °C | Fe-Const |
AT411-400F-SM | 7 - 24 VAC / 9 - 30VDC | Relay | 0 - 400 °C | Fe-Const |
AT411-400F-SSR | 230VAC | Logic | 0 - 400 °C | Fe-Const |
AT411-400F-SM-SSR | 7 - 24 VAC / 9 - 30VDC | Logic | 0 - 400 °C | Fe-Const |
AT411-300F | 230V AC | Relay | 0 - 300 °C | Fe-Const |
AT411-300F-SM | 7 - 24 VAC / 9 - 30VDC | Relay | 0 - 300 °C | Fe-Const |
AT411-300F-SSR | 230V AC | Logic | 0 - 300 °C | Fe-Const |
AT411-300F-SM-SSR | 7 - 24 VAC / 9 - 30VDC | Logic | 0 - 300 °C | Fe-Const |
AT411-200F | 230V AC | Relay | 0 - 200 °C | Fe-Const |
AT411-200F-SM | 7 - 24 VAC / 9 - 30VDC | Relay | 0 - 200 °C | Fe-Const |
AT411-200F-SSR | 230V AC | Logic | 0 - 200 °C | Fe-Const |
AT411-200F-SM-SRR | 7 - 24 VAC / 9 - 30VDC | Logic | 0 - 200 °C | Fe-Const |
PF083A-E | 8-pin socket for DIN rail mounting |
Dimensions | Connection diagram |
![]() |
![]() |
