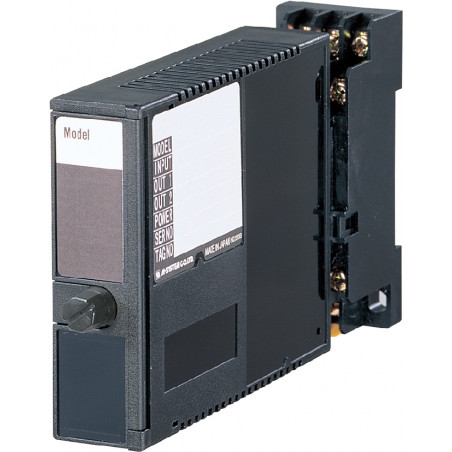

Traductor de tensiune M2PE
  • Traductor de tensiune M2PE

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: M-SYSTEM

Traductor de tensiune M2PE

  • M2PE

M2PE is a voltage converter that converts the output voltage from the transformer into a standard analog signal (range to be specified when ordering).


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • AC / DC power
  • True RMS
  • Minimum ripple
  • Convert the output voltage from a transformer to a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: voltage sinusoidal 0-110V or 0-150V
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection To be set when ordering
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
