M2SP - Convertor de semnal cu intrare de frecvență

  • M2SP

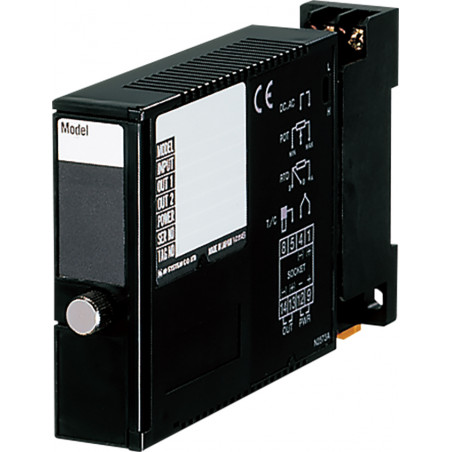

M2SP is a converter with frequency input.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection To be determined while ordering
Double Output None
Power DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

M2SP is a converter with frequency input.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection To be determined while ordering
Double Output None
Power DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
