Producător: KRADEX

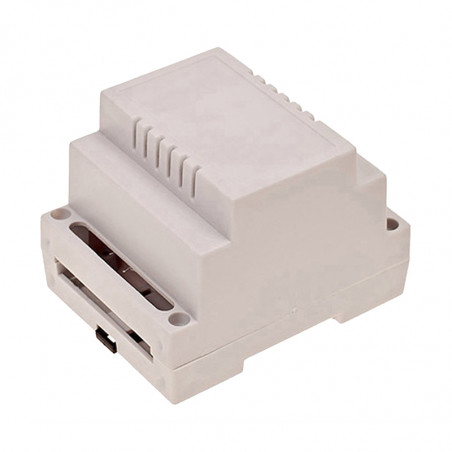

Carcasa din seria DIN.

The ZD series has been designed based on the modern construction of replaceable terminal covers, allowing easier adjustment for the electronics interior.

KRADEX enclosures provide protection against falling out of the installation it contains. The housing is mounted on a DIN rail with latches, ensuring easy application.



Product no. Material Variant Dimensions [mm] Colour Accessories
LxWxH
ZD1005J ABS V0 Without gasket 90x90x65 Light grey filter, slot masks for sockets, slot masks universal, slot masks for end plugs, DIN rail
ZD1006J ABS V0 Without gasketi 107x90x65 Light grey
ZD1009J ABS V0 Without gasket 160x90x65 Light grey
ZD1010J ABS V0 Without gasket 178x90x65 Light grey



Accessories



STOPPERS
Product no. Description Dimensions [mm]
LxWxH
ZDFJ1005 ABS V0 Stopper for ZD1005 light grey ABS V0 84x41x5
ZDFJ1006 ABS V0 Stopper for ZD1006 light grey ABS V0 102x41x5
ZDFJ1009 ABS V0 Stopper for ZD1009 light grey ABS V0 155x41x5
ZDFJ1010 ABS V0 Stopper for ZD1010 light grey ABS V0 173x41x5


FILTERS
Product no. Description Dimensions [mm]
LxWxH
ZDFcz1005 ABS red filter for ZD1005 ABS 84x41x5
ZDFcz1006 ABS red filter for ZD1006 ABS 102x41x5
ZDFcz1009 ABS red filter for ZD1009 ABS 155x41x5
ZDFcz1010 ABS red filter for ZD1010 ABS 173x41x5
ZDFP1005 ABS transparent filter for ZD1005 ABS 84x41x5
ZDFp1006 ABS transparent filter for ZD1006 ABS 102x41x5
ZDFp1009 ABS transparent filter for ZD1009 ABS 155x41x5
ZDFp1010 ABS transparent filter for ZD1010 ABS 173x41x5





COVERS
Product no. Description Dimensions [mm]
LxWxH
ZD3TC ABS V0 Terminals Cover 3M full ABS V0 (pcs. quantity in set: 4) 53x14x20
ZD3TCS ABS V0 Terminals Cover 3M for sockets ABS V0 (pcs. quantity in set: 4) 53x14x8
ZD3TCU ABS V0 Terminals Cover 3M universal ABS V0 (pcs. quantity in set: 4) 53x14x11
ZD3TC 5,08 ABS V0 Terminals Cover 3M raster 5,08 for end plugs ABS V0 (pcs. quantity in set: 4) 53x14x11
ZD5TC ABS V0 Terminals Cover 5M full ABS V0 (pcs. quantity in set: 4) 89x14x20
ZD5TCS ABS V0 Terminals Cover 5M for sockets ABS V0 (pcs. quantity in set: 4) 89x14x8
ZD5TCU ABS V0 Terminals Cover 5M universal ABS V0 (pcs. quantity in set: 4) 89x14x11
ZD5TC 5,08 ABS V0 Terminals Cover 5M raster 5,08 for end plugs ABS V0 (pcs. quantity in set: 4) 89x14x11





END PLUGS
Product no. Description Dimensions [mm]
LxWxH
ZDPLUG 5,08 ABS V0 End plugs 5,08 ABS V0 (pcs. quantity in set: 20) 15x13x20
