EMC 4 Glanduri pentru cabluri din alamă - Aplicație industrială

These cable glands are developed according to end users' requirements. Their features can be summarized as follows:
  • Easy insertion of the cable from the two sides of the gland
  • Open contact fingers in loose position
  • Free radial and axial movement of the cable
  • Easy radial and axial movement of the cable, even in contact position without any damage to the braid with the help of rounded contact finger surfaces
  • Large contact surfaces of the fingers allow low contact resistance even on loosely woven cable braids (the contact surfaces do not sink into the braided wires)
  • High contact performance even under vibrating conditions with help of the reduced distance between the "sealing clamping level" and "EMC contact level"



EMC test - screening attenuation

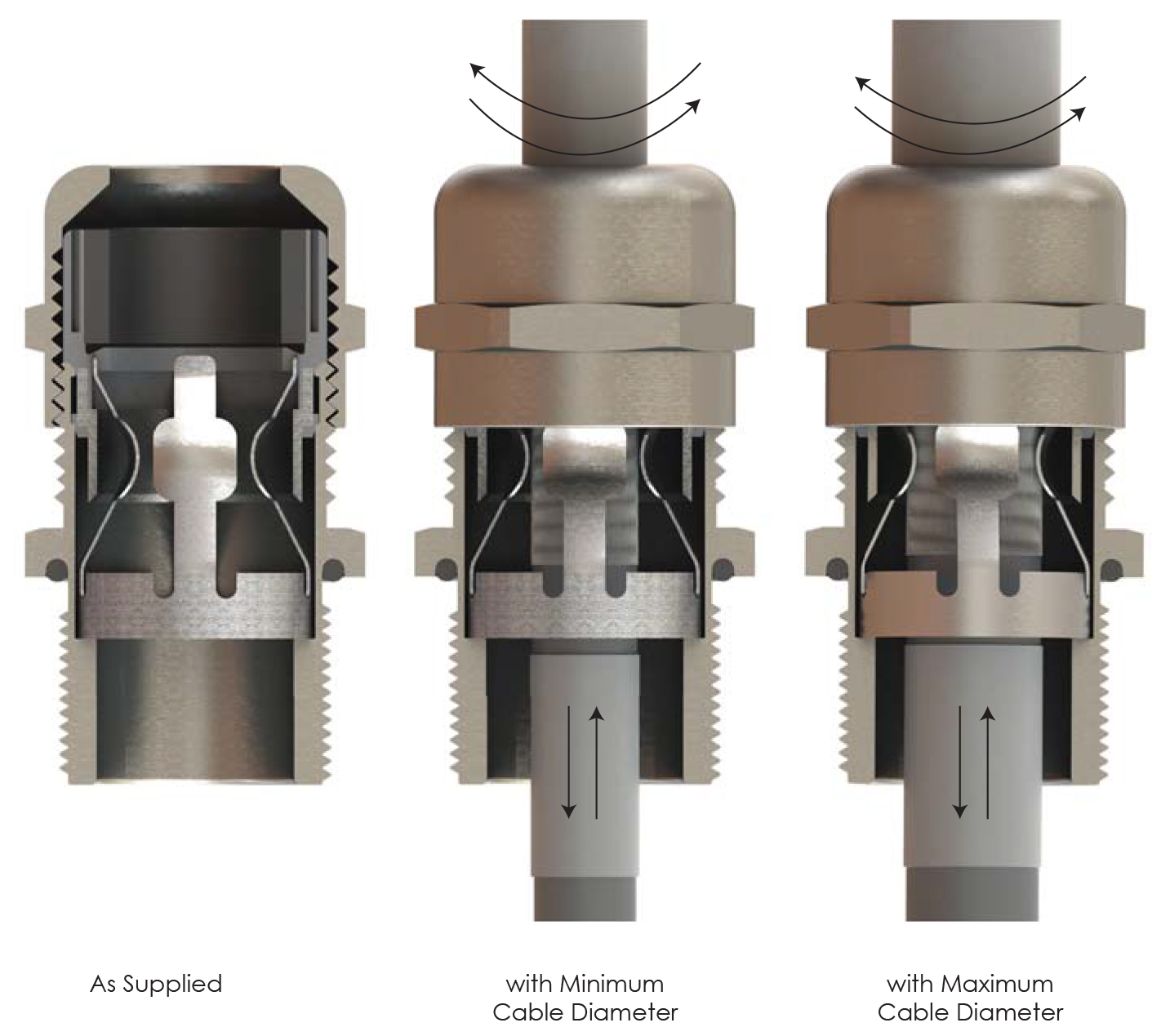

EMC cable glands with open moving spring contact

  • Specially designed EMC protective cable glands
  • Vibration proof EMC performance
  • Long-lasting contact by high definition contact spring
  • Moving spring contact offers reduced risk of sheath damage
  • Easy assembly and disassembly of cable. Spring closes and opens according to fastening of the cap
  • Easy movement of cable as long as not fastened
  • Easy assembly: install cable gland - prepare cable sheath - insert cable - tighten cap
  • High quality strain relief and sealing, reliable performance for EMC applications
  • Up-to-date international approvals



Technical details


MaterialBody Brass, nickel plated
Cap Brass, nickel plated
Seal CR (chloroprene rubber)
Clamping insert PA 6 (polyamide 6)
Contact spring Special copper alloy
O-ring NBR
Protection class IP68 - 5 Bar, 30 min
Flammability UL94 V-2
Operating temperaturePermanentIntermittent
-20°C ÷ +100°C -40°C ÷ +150°C
Thread type
  • Metric EN 60423
  • PG DIN 40430
  • NPT ANSI B1.20.1
  • Other thread types also available upon request
Cable type Non armoured, shielded
Accessories
  • Lock nuts
  • Dome plugs
  • Gaskets
Remarks
  • Manufactured according to DIN EN 62444/50262
  • We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes
  • Some approvals do not cover all sizes
Note: Applications of most cable glands don't require same parameters applied to tests. For applications strictly acc. to the approval definitions please consult data sheet.



Approvals


 Certificate numberStandards
40039349 Acc. to DIN EN 62444
E199260 Acc. to UL514



Thread Type METRIC acc. to EN 60423


SizeClamping range ∅ min - max [mm]Shield diameter ∅ min - max [mm]Thread lenght TL [mm]Thread ∅ TD [mm]Spanner widthOuter ∅ D [mm]Max. height H [mm]Part numberPacking unit
SW Cap [mm]SW Body [mm]
M12x1,5 3,0 - 6,5 2,0 - 5,0 6,0 12,0 14 14 15,5 28,0 BMEM-ES(M12T) 50
M16x1,5 5,0 - 10,0 3,5 - 8,0 6,0 16,0 20 20 22,0 33,0 BMEM-E1(M16T) 50
M20x1,5 6,0 - 12,0 4,5 - 10,0 6,0 20,0 22 22 24,5 32,0 BMEM-E2S(M20T) 50
7,5 - 14,0 5,5 - 11,5 8,0 24 26 26,8 40,0 BMEM-E2(M20T)
M25x1,5 10,0 - 18,0 7,0 - 14,0 8,0 25,0 30 30 33,0 43,0 BMEM-E3(M25T) 25
M32x1,5 16,0 - 25,0 12,0 - 20,0 9,0 32,0 40 40 43,5 53,0 BMEM-E4(M32T) 25
M40x1,5 22,0 - 32,0 18,0 - 27,0 9,0 40,0 50 50 55,5 60,5 BMEM-E5(M40T) 20
M50x1,5 30,0 - 38,0 26,0 - 34,0 9,0 50,0 58 58 64,0 73,0 BMEM-E6(M50T) 12
M63x1,5 34,0 - 44,0 30,0 - 40,0 14,0 63,0 64 68 75,0 59,0 BMEM-E7(M63T) 12
37,0 - 53,0 33,0 - 49,0 10,0 75 75 83,0 75,0 BMEM-E7L(M63T)



Thread Type NPT acc. to ANSI B1.20.1


SizeClamping range ∅ min - maxShield diameter ∅ min - maxThread lenght TLThread ∅ TDSpanner widthOuter ∅ DMax. height HPart numberPacking unit
[mm][in][mm][in][mm][in][mm][in]SW CapSW Body[mm][in][mm][in]
[mm][in][mm][in]
NPT 1/4" 3,0 - 6,5 0.118 - 0.256 2,0 - 5,0 0.079 - 0.197 11,5 0.453 13,72 0,540 14 0.551 15 0.591 16,5 0.610 28,0 1.102 BNEM-ES(NPT1/4"T) 50
NPT 3/8" 5,0 - 10,0 0.197 - 0.394 3,5 - 8,0 0.138 - 0.315 11,5 0.453 17,14 0.675 20 0.787 20 0.787 22,0 0.744 33,0 1.299 BNEM-E1(NPT3/8"T) 50
NPT 1/2" 6,0 - 12,0 0.236 - 0.472 4,5 - 10,0 0.177 - 0.394 15,0 0.591 21,34 0.840 22 0.866 22 0.866 24,5 0.866 37,5 1.476 BNEM-E2S(NPT1/2"T) 50
7,5 - 14,0 0.295 - 0.551 5,5 - 11,5 0.217 - 0.453 24 0.945 24 0.945 26,8 39,5 1.555 BNEM-E2(NPT1/2"T)
NPT 3/4" 10,0 - 18,0 0.394 - 0.709 7,0 - 14,0 0.276 - 0.551 15,0 0.591 26,67 1.050 30 1.181 30 1.181 33,0 0.965 42,5 1.673 BNEM-E3(NPT3/4"T) 25
NPT 1" 16,0 - 25,0 0.630 - 0.984 12,0 - 20,0 0.472 - 0.787 20,0 0.787 33,40 1.315 40 1.575 40 1.575 43,3 1.055 52,5 2.067 BNEM-E4(NPT1"T) 25
NPT 1 1/4" 22,0 - 32,0 0.866 - 1.260 18,0 - 27,0 0.709 - 1.063 20,0 0.787 42,16 1.660 50 1.969 50 1.969 55,4 1.299 62,0 2.441 BNEM-E5(NPT11/4"T) 20
NPT 1 1/2" 30,0 - 38,0 1.181 - 1.496 26,0 - 34,0 1.024 - 1.339 22,0 0.866 48,26 1.900 58 2.283 58 2.283 64,0 1.713 72,0 2.835 BNEM-E6(NPT11/2"T) 10
NPT 2" 34,0 - 44,0 1.339 - 1.732 30,0 - 40,0 1.181 - 1.575 22,0 0.866 60,325 2.375 64 2.520 68 2.677 75,0 2.185 71,5 2.815 BNEM-E7(NPT2"T) 5



Thread Type PG acc. to DIN 40430


RozmiarClamping range ∅ min - max [mm]Shield diameter ∅ min - max [mm]Thread lenght TL [mm]Thread ∅ TD [mm]Spanner widthOuter ∅ D [mm]Max. height H [mm]Part numberPacking unit
SW Cap [mm]SW Body [mm]
PG 7 3,0 - 6,5 2,5 - 5,0 6,0 12,5 14 15 16,5 28,0 BSEM-E1(Pg7T) 50
PG 11 5,0 - 10,0 3,5 - 8,0 6,0 18,6 20 21 23,0 33,0 BSEM-E3(Pg11T) 50
PG 13,5 6,0 - 12,0 4,5 - 10,0 6,5 20,4 22 22 24,5 31,5 BSEM-E4(Pg13,5T) 50
PG 16 7,5 - 14,0 5,5 - 11,5 6,5 22,5 24 25 27,5 39,5 BSEM-E5(Pg16T) 25
PG 21 10,0 - 18,0 7,0 - 14,0 7,0 28,3 32 30 35,5 42,5 BSEM-E6(Pg21T) 25
PG 29 16,0 - 25,0 12,0 - 20,0 9,0 37,0 40 40 43,5 52,5 BSEM-E7(Pg29T) 25
PG 36 22,0 - 32,0 18,0 - 27,0 9,0 47,0 50 50 55,5 60,5 BSEM-E8(Pg36T) 20
PG 42 30,0 - 38,0 26,0 - 34,0 12,0 54,0 58 60 66,5 72,5 BSEM-E9(Pg42T) 10
PG 48 34,0 - 44,0 30,0 - 40,0 14,0 59,3 64 68 75,0 58,5 BSEM-E10(Pg48T) 5
