2SIS0400T2C0C-33 Controler

2SIS0400T2C0C-33 SCALE-iFlex Single Family

Isolated Master Control Gate Driver for Half-Bridge Power Modules in high voltage package up to 3300 V

Product Highlights

Highly Integrated, Compact Footprint

• Ready-to-use gate driver solution for power modules up to 3300 V blocking voltage
• Electrical interface
• Optimized for use with Module Adapted Gate Driver 2SMS0220D2C0C
• -40 °C to +85 °C operating ambient temperature

Protection / Safety Features

• Undervoltage lock-out (UVLO)
• Supporting Short-Circuit-Dection and Advanced Active Clamping of the Module Adapted Gate Driver
• Applied double sided conformal coating Full Safety and Regulatory Compliance
• 100% production partial discharge and HIPOT test of transformer
• Clearance and creepage distances between primary and secondary sides meet requirements for reinforced isolation according to IEC 61800-5-1.

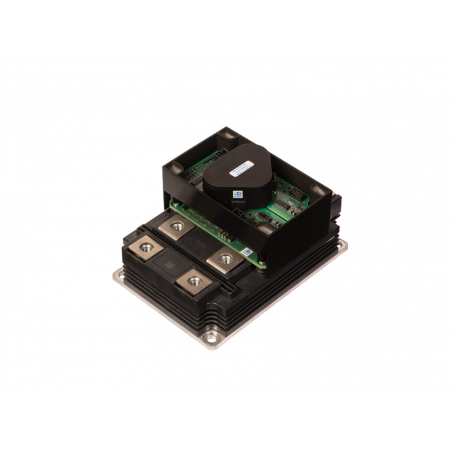

• Figure 1. 3D-Picture.

Green Package

• RoHS compliant

Applications

• Wind and photovoltaic power
• Traction inverter
• Industrial drives
• Other industrial applications

Description

This datasheet describes the Isolated Master Control (IMC) of the SCALE-iFlex™ Single gate driver family which consists furthermore of a Module Adapted Gate Driver (MAG).
The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in various variants optimized for different power modules of different suppliers and chip technologies in the voltage classes up to 3300 V.
SCALE-iFlex Single enables compact and easy controlling power modules providing high flexibility and system scalability with minimum development effort.
