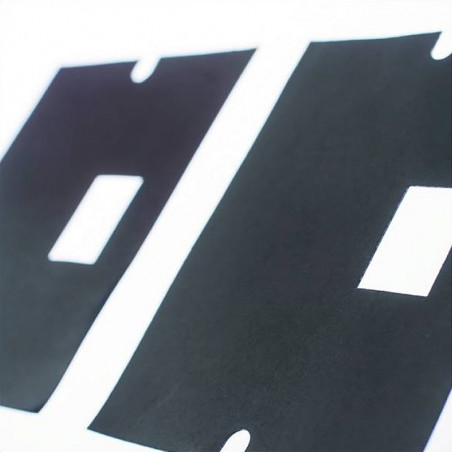

Filme de grafit.
  • Filme de grafit.

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Kerafol

Filme de grafit.

  • grosimea peretelui
  • Rth (K/W)

Graphite films


Graphite Films are based on 100% pure graphite. The films are available as uncoated types and, for specific applications, with filled adhesive or standard adhesives. Due to their high thermal conductivity they are used in the CPU sectors for example.

Product features
  • Electrical conductivity
  • High thermal conductivity
Packaging
Sheets:
  • 490 x 490 mm (S 900)
  • 500 x 1000 mm (90/10)
Rolls: 500 mm wide
Custom dimensions on request.


Technical data


Material   Thermal conductivity Thermal resistance Breakdown voltage Thickness* Hardness
W/mK K/W kV mm Shore D
S 900 Highly densed graphite film 7.5 0.08 No insulation 0.15 - 0.29 25-35
90/10 Graphite film 5.5 0.09 No insulation 0.15, 2.0 25-35


(*) Parameters for bolded values.
