Generator de tuburi REL-30Tr

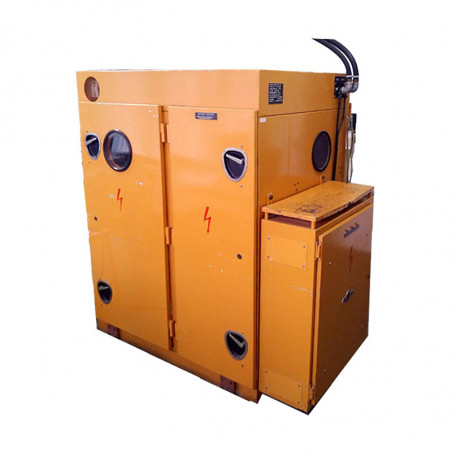

Tube generator REL-30Tr is a tube generator modernized by Dacpol Service company, originally produced by ELCAL company in 1990. It uses a commercially available RD25ZM triode (RS3040CJ).


Technical data:

  • Output power of REL-30Tr tube generator (batch) at power concentration min. 1kW/cm2 - 30kW.
  • Tube generator REL-30Tr operating frequency - 400kHz.
  • Power supply - 66 kVA.
  • Three-phase power supply, five-wire TN-S type or four-wire TT type (plus ground wire).
  • Cross section of the copper wires feeding directly into the generator - 25 mm2.
  • Cooling water pressure - 0.4 MPa (4 atm), demineralized water.
  • Cooling water flow through the generator - 35 l/min.
  • Maximum cooling inlet water temperature - 25 ℃.
