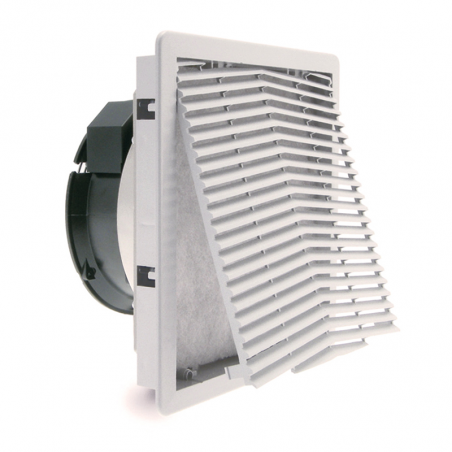

Fanii din seria GF cu filtre cu gradul de interior IP54 sau IP55 interior
  • Fanii din seria GF cu filtre cu gradul de interior IP54 sau IP55 interior

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: FANDIS

Fanii din seria GF cu filtre cu gradul de interior IP54 sau IP55 interior

  • Mounting system with jacks for plastic or plate enclosures
  • Plate thickness: up to 8mm and by cutting the jacks up to 16mm
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • IP54 protection degree
  • Reverse airflow version (-R) see page 5
  • Frequency: 50/60 Hz
Model Dimensions HxWxD Cut-Out Rated Voltage Rated power Max air flow Static Pressure Approvals
  mm mm V W m3/h Pa
GF12KU230BE 150x150x76 125X125 230 V a.c. 17/16 46/53 52/58 CE;
GF12KU230BER 150x150x76 125X125 230 V a.c. 17/16 42/47 59/70 CE;
GF12KUD24B 150x150x76 125X125 24 V d.c. 7.0 46 54 CE;
GF12KUD24BR 150x150x76 125X125 24 V d.c. 7.0 55 71 CE;
GF15KPU230BE 250x250x105 223X223 230 V a.c. 18/18 118/132 56/57 CE;
GF15KU115BE 250x250x118 223X223 115 V a.c. 32/35 224/270 110/148 CE;
GF15KU230BE 250x250x118 223X223 230 V a.c. 32/34 224/270 110/148 CE;
GF15KU230BER 250x250x118 223X223 230 V a.c. 32/35 248/290 158/202 CE;
GF20KGU230B 325x325x142 290X290 230 V a.c. 159/125 583/680 214/216 CE;
GF20KU230BE 325x325x153 290X290 230 V a.c. 76/92 475/535 140/156 CE;
