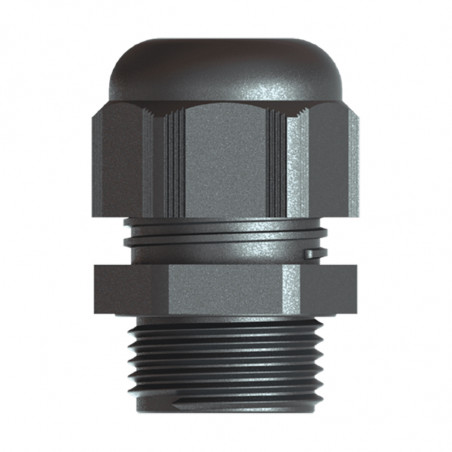

Glande de cablu din plastic, tip LYRA
  • Glande de cablu din plastic, tip LYRA
  • Glande de cablu din plastic, tip LYRA
  • Glande de cablu din plastic, tip LYRA
  • Glande de cablu din plastic, tip LYRA

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: BIMED

Glande de cablu din plastic, tip LYRA

Glande de cablu din plastic, tip LYRA

Date tehnice
Material:
sigiliu:
Kolon:

Grad de protecție:
Meas. temperatură de lucru:

Tipul de protecție:


poliamidă
cloropren (opțiune siliconică)
negru RAL 9005 (versiunea Exe)
albastru RAL 5015 (versiunea Exi)
IP 66 / IP 68
- 40 - + 80 ° C (cloropren)
- 60 - + 80 ° C (silicon)
II 2G Exe IIC Gb
II 2 D Ex tb IIIC Db
IMQ 13 ATEX 010X / IECEx IMQ 13.0003X
GHOST „R” - INMETRO





Fir Cod

Gama de cutii de umplutură
Min-Max
D [mm]

Dimensiuni [mm]
Ex-e Ex-i H min TL SW SW1 D2
M12 x 1.5 HIBM-0XS HIBMI-0XS 4.0-6.5 22.0M 10.0 15.0 15.0 17.0
M12 x 1.5 HIBM-XS HIBMI-XS 4.0-6.5 22.0 15.0 15.0 15.0 17.0
M16 x 1.5 HIBM-SX1 HIBMI-SX1 5.0-8.0 26.0 10.0 19.0 19.0 21.3
M 16 x 1.5 HIBM-X1 HIBMI-X1 6.0-10.0 29.5 10.0 22.0 22.0 25.0
M16 x 1.5 HIBM-X1L HIBMI-X1L 6.0-10.0 29,5 15.0 22.0 22.0 25.0
M20 x 1.5 HIBM-SX2 HIBMI-SX2 6.0-10.0 29.5 10.0 24.0 22.0 25.0
M20 x 1.5 HIBM-X2 HIBMI-X2 7.0-12.0 30.0 10.0 24.0 24.0 27.5
M20 x 1.5 HIBM-X2L HIBMI-X2L 7.0-12.0 30.0 15.0 24.0 24.0 27.5
M20 x 1.5 HIBM-MX2 HIBMI-MX2 7.0-13.0 30.0 10.0 25.0 25.0 27.5
M20 x 1.5 HIBM-X3 HIBMI-X3 11.0-14.0 33.0 10.0 27.0 27.0 31.0
M20 x 1.5 HIBM-X4 HIBMI-X4 11.0-14.0 33.0 15.0 27.0 27.0 31.0
M25 x 1.5 HIBM-SX5 HIBMI-SX5 11.0-14.0 33.0 10.0 27.0 27.0 31.0
M25 x 1.5 HIBM-SX6 HIBMI-SX6 11.0-14.0 33.0 15.0 27.0 27.0 31.0
M25 x 1.5 HIBM-XEU25 HIBMI-XEU25 12.0-17.0 34.0 10.0 29.0 29.0 32.5
M25 x 1.5 HIBM-XEU25L HIBMI-XEU25L 12.0-17.0 34.0 15.0 29.0 29.0 32.5
M25 x 1.5 HIBM-X5 HIBMI-X5 14.0-18.0 35.0 10.0 33.0 33.0 37.0
M25 x 1.5 HIBM-X6 HIBMI-X6 14.0-18.0 35.0 15.0 33.0 33.0 37.0
M32 x 1.5 HIBM-SX7 HIBMI-SX7 14.0-18.0 36.0 10.0 36.0 33.0 37.0
M32 x 1.5 HIBM-XEU32 HIBMI-XEU32 16.0-21.0 42.0 10.0 36.0 36.0 41.0
M32 x 1.5 HIBM-X7 HIBMI-X7 19.0-25.0 40.5 15.0 42.0 42.0 47.5
M40 x 1.5 HIBM-XEU40 HIBMI-XEU40 20.0-28.0 46.0 10.0 46.0 46.0 52.0
M40 x 1.5 HIBM-XEU40L HIBMI-XEU40L 20.0-28.0 46.0 15.0 46.0 46.0 52.0
M40 x 1.5 HIBM-X8 HIBMI-X8 23.0-32.0 50.0 18.0 53.0 53.0 60.0
M50 x 1.5 HIBM-X9 HIBMI-X9 31.0-38.0 54.0 18.0 60.0 60.0 67.5
M63 x 1.5 HIBM-X10 HIBMI-X10 35.0-44.0 54.0 18.0 65.0 65.0 72.0

Notă: La cerere, alte modele de garnituri de cablu din plastic.
