Iluminare cu LED pentru mașini-unelte seria TRACK ALPHA

Trackalpha

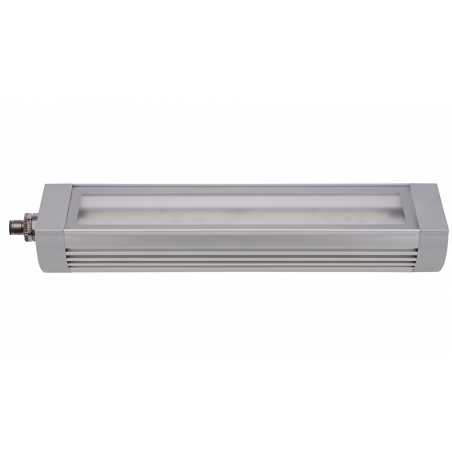

The Track Alpha series is a surface mount machine lamp constructed from a rugged, high heat dissipation aluminum housing, resistant to vibration, and can be installed and safely used in the most demanding machine environments. The Track Alpha luminaires are even the optimal flexible solution for retrofitting old machines by combining the 2 3/4 ”diameter housing, M12 connector and universal mounting brackets. The Track Alpha luminaires are certified to the IP67 degree of protection and are suitable for humid environments with oils, coolants, greases and dust. The 3/16 ″ toughened safety front glass is impurity resistant to IK07 impacts and cools to the touch on a bright surface to avoid seizure of the coolant on the glass, causing it to become bronzed. This machine lamp produces an intense light output of up to 6,500 lumens thanks to highly efficient new LED plates designed with the most advanced electronic technology. Redesigned reflectors in combination with an anti-glare diffuser provide even illumination and diffused light distribution over wide areas inside giant machines. The Track Alpha surface mount series offers five standard lengths and many custom size preferences thanks to a modular aluminum housing design and optimized PCBs. Traditional 10-foot cable or M12 connector provide a safe, quick and easy electrical connection up to 24 V DC or 110 V AC without an additional power supply. Track Alpha luminaires are surface mount lamps that are the answer as machine lighting for complex CNC machines, manufacturing and automation applications. Two standard mounting options are available: rear clamps or side mounting brackets, which provide secure mounting and flexible installation of the luminaires on retrofitted old machines. Therefore, they enable precise adjustment of the light direction up to 95 ° in relation to the working area.

• LED lighting suitable for use in medium and large machining centers
• Corrosion and vibration resistant
• Full protection of the lamp against the ingress of dust and many oils and coolants
• Resistant to chips from machining
• Natural, efficient lighting ensuring uniform illumination of the surface
• 50% energy saving and constant beam for 60,000 hours
• No UV or infrared radiation
• No additional equipment is needed
• Connect quickly and securely
• No polarity reversal
• 7 variants, 6 different lengths
• A choice of power cord lengths from 5 to 33 feet
• For universal use to meet all needs
• Interchangeable with existing obsolete equipment while keeping existing holes

The secret of this lamp is its full flexibility. With 7 versions and 6 different lengths, the TRACK ALPHA is suitable for endless applications. We have designed this series so that it can be connected directly to 24Vdc, 110Vac or 230Vac without any external components. In addition, its dimensions and power can quickly and easily replace traditional fluorescent lamps and optimize additional equipment. TRACK ALPHA was not developed as an accessory, but as a full-fledged addition to his machine.

Mechanical

• 2.75 ”anodized aluminum housing with painted side plugs
• A heat sink that dissipates more heat even at maximum operating temperature
• 0.2 ”(5 mm) thick IK06 impact resistant tempered front glass
• Degree of protection IP67 and Viton® O-ring seal
• 6 different lengths for 7 different models

Electric

The circuits are designed to optimize light scattering and strive for a balance between efficiency and durability.

• Power LED board with integrated 24 Vdc drivers
• Integrated 24Vdc or 110Vac or 230Vac power supply
• Connection via M12 male connector on the lamp
• Power cord with female M12 connector

Optical

Diffused and even lighting, even inside and outside the structure. The satin prismatic filter provides uniform illumination of any length, while preventing the glare effect.

• 5000K CRI 80 monochrome lighting
• 120 ° diffused beam
• No photobiological risk in accordance with EN 62471

MOUNTING BRACKETS

ALPHA.FX02

Tough, versatile and vibration resistant, this is a 90 ° angle adjustable bracket. Made of chrome plated stainless steel, it is the ideal solution when you need to adjust the direction of the flow beam in high vibration applications.

ALPHA.CLIP

Strong, flexible and vibration resistant, it is a 30 ° angle adjustable bracket. Made of anodized aluminum, it is the perfect solution when you need to modernize outdated machine tools and machining centers.

B03

Strong magnetic shield made of neodymium and high grip. Use together with ALPHA.FX02 brackets when you need to frequently move the light in different positions. Suitable for use in high vibration applications.

POWER CABLES

The TRACK ALPHA series can be supplied with pre-assembled PUR interconnecting cables with M12 connector socket (straight or 90 °) in various lengths from 5 to 33 feet, and custom M12 connector sockets and plugs are available for particularly simple integration.

N11810001040302 Straight female connector M12
M12V.F.3C1.5 M12 female connector 4P 3 pole movable with 1.5 m cable	M12V.F.3C3 M12 female connector 4P 3 pole movable with 3m cable	M12V.F.3C5 M12 female connector 4P 3 pole movable with 5m cable	M12V.F.3C10 M12 female connector 4P 3 poles movable with 10m cable
N11910001040302 M12 90 ° female movable joint
M12V.FL.3C1.5 M12 90 ° Female 4P Floating Connector 3 Poles with 1.5m cable	M12V.FL.3C3 M12 90 ° female 4P 3 pole movable connector with 3m cable	M12V.FL.3C5 M12 90 ° female 4P 3 pole movable connector with 5m cable	M12V.FL.3C10 M12 90 ° female 4P 3 pole movable connector with 10m of cable
