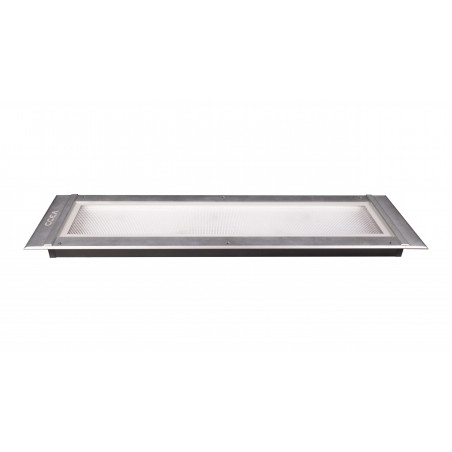

Iluminare cu LED pentru mașini-unelte din seria ANTARIO

ANTARIO

ANTARIO is recessed machine lighting designed with the latest LED technology built into a solid anodized aluminum housing. It is impermeable to oil, coolants, emulsions and dust. Front The hardened glass fuse is 0.16 inch thick and is contamination resistant up to IK07. The new concept of a glare-free optical diffuser in combination with designed circuits makes ANTARIO the most efficient and reliable series of luminaires with the safest luminous flux. Available in a variety of sizes, ANTARIO is a recessed lighting solution that offers the highest illuminance in the slimmest housing for CNC machines, manufacturing and automation applications.

• Flush-mounted LED lighting suitable for industrial applications, automation processes, medium and large size CNC and EDM machines
• Extremely strong luminous flux (up to 9800 lumens)
• Corrosion and vibration resistant
• High resistance to oils, coolants and metal shavings
• Full protection against the ingress of dust and liquids
• High degree of protection IP67
• Uniform daylight illumination
• 50% energy saving and constant beam for 60,000 hours
• Non-photobiological hazard according to EN 62471
• No additional equipment is needed
• 24 V DC IDS (Integrated Controller System)
• Available with either a power cord or an M12 connector
• UL / CSA and CE certified
• 4 model sizes

Mechanical

The combination of design and performance creates an ultra-durable construction ideal for use in extreme conditions.

• Housing made of anodized powder coated aluminum
• 0.16 inch thickness IK06 impact resistant ultra clear tempered windshield
• 0.12 inch thick non-glare prismatic plexiglass (PMMA) diffuser
• A heat sink that dissipates more heat even at maximum operating temperature
• IP67 degree of protection and Viton® sealing
• Recessed model in 4 lengths

Electric

The main feature of the ANTARIO series is the powerful beam which is generated by the combination of high efficiency medium power LED circuits and a prismatic diffuser optimized by numerical algorithms.

• Power LED board with IDS 24 Vdc
• Connection via M12 connector and rear power cord

Optical

The prismatic diffuser enhances the anti-reflective effect, but still maintains a constant light output and uniform illumination inside the structure.

• 6500K monochrome light CRI 80
• 120 ° diffused beam
• No photobiological risk in accordance with EN 62471

INSTALLATION

Recessed lamp, no brackets required. Installation with M5 screws.
