Module IPM din a 4-a generație - seria S-DASH
  • Module IPM din a 4-a generație - seria S-DASH

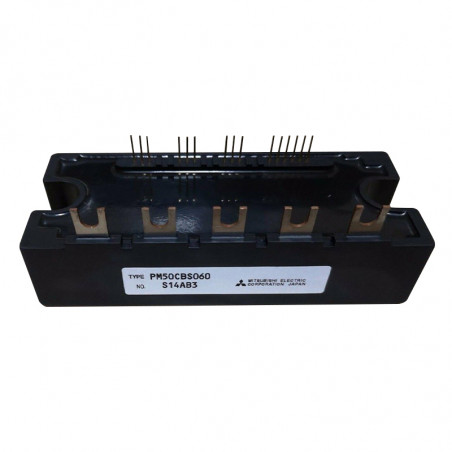

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Mitsubishi

a 4-a generație de module IPM - seria S-DASH

Tip numărParametri maximiVce(sat)
@ Tj=25°C
[V]
Carcasă
V CES
[V]
lc
[A]
Pt
[W]
300V
PM50CBS060600501521/7SD1
PM50CSD060600501251,7SD3
PM50RSD060600501251/7SD3
PM75CBS060600754621/7SD1
PM75CSD060600752551/7SD3
PM75RSD060600752551/7SD3
PM100CBS0606001005681/7SD1
PM100CSD0606001003281/7SD3
PM100RSD0606001003281/7SD3
PM150CBS0606001507351/7SD1
PM150CSD0606001504161/7SD3
PM150RSD0606001504161/7SD3
PM200CBS0606002009611/7SD2
PM200CSD0606002005951/7SD4
PM200RSD0606002005951/7SD4
PM300CBS06060030012501/7SD2
PM300CSD0606003007811/7SD4
PM300RSD0606003007811,7SD4
1200V
PM50CSD1201200503282,4SD3
PM50RSD1201200503282,4SD3
PM75CSD1201200754162,4SD3
PM75RSDl 201200754162,4SD3
PM100CSD12012001005952,4SD4
PM100RSD12012001005952,4SD4
PM150CSD12012001507812,4SD4
PM150RSD12012001507812,4SD4

SimbolFuncții interne
CSistem IGBT trifazat cu control și protecție OC/SC/OT/UV
RSistem IGBT trifazat cu control, frână și protecție OC/SC/OT/UV

PM100CBS060, PM150CBS060, PM50CBS060, PM75CBS060, PM200CBS060, PM300CBS060PM100CSD060, PM100RSD060, PM150CSD060, PM150RSD060, PM50CSD060, PM50CSD120, PM50RSD060, PM50RSD120, PM75CSD060, PM75CSD120, PM75RSD060, PM75RSDl20
PM200CBS060, PM300CBS060PM100CSD120, PM100RSD120, PM150CSD120, PM150RSD120, PM200CSD060, PM200RSD060, PM300CSD060, PM300RSD060
