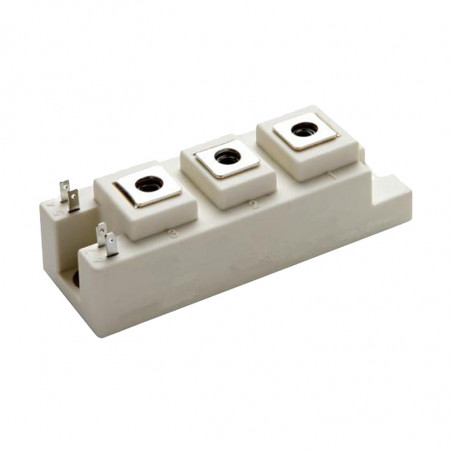

Module MOSFET STARPOWER SIC MOSFET
  • Module MOSFET STARPOWER SIC MOSFET

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Starpower

Module MOSFET STARPOWER SIC MOSFET

STARPOWER MOSFET Power Module provides very low RDS(on) as well as optimized intrinsic diode. It’s designed for the applications such SMPS and DC drives.

Features

  • SiC power MOSFET
  • Low RDS(on)
  • Optimized intrinsic reverse diode
  • Chip sintering technology
  • Low inductance case avoid oscillation
  • Isolated copper baseplate using DBC technology

Typical Applications

  • Main and auxiliary AC drives of electric vehicles
  • DC servo and robot drives
  • Battery vehicles
  • UPS equipment
  • Plasma cutting

Electric data

Type VDSS [V] ID [A] RDS(on) [mΩ] Package Configuration
MD200HFR120C2S 1200 200 8,7 C2.0
MD350HFR120B3S 350 5,2 B3.0
MD300HFR120C2S MD300 6,5 C2.0
MD300HFR120B3S MD300 6,5 B3.7
MD400HFR120C2S MD400 4,4 C2.0
MD50FFR120C5S 50 37,5 C5.0
MD50CUR120D6S 50 50 D6.0
MD25CUR120D6S 25 100 D6.0
MD25CLR120D6S 25 100 D6.0
MD50CLR120D6S 50 50 D6.0
MD250HFR170C2S 1700 MD250 10,4 C2.0




Case C2.0

Case B3.7
