LED Iluminat pentru Masini-unelte din seria TEIDE
  • LED Iluminat pentru Masini-unelte din seria TEIDE

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: C.C.E.A.

LED Iluminat pentru Masini-unelte din seria TEIDE

TEIDE

TEIDE is a series of compact, low-profile LED lamps designed for indoor and industrial applications, such as lighting of switchboards and agri-food machinery. The highly efficient flow beam is delivered using the latest LED technology. The range includes different models in different versions - the Power version with S & Q models and the Eco version with S models - available in five lengths, giving you installation flexibility for a variety of applications. Mounting brackets allow you to adjust the lighting direction up to 60 °. Models with diameters of 1.18 "or 0.94" allow the flexible placement of TEIDE housings in many applications. The compact dimensions allow easy integration into existing systems, while ensuring exceptional energy efficiency and low voltage safety.

  • Tubular LED lighting suitable for both indoor and industrial applications
  • Full protection against the ingress of dust and liquids
  • High degree of protection IP54 or IP67
  • 60,000 hour constant flow beam
  • Non-photobiological hazard according to EN 62471
  • No additional equipment is needed
  • 24 V DC IDS technology for direct connection
  • Pre-assembled side cable with M12 connector
  • 2 versions - Power and Eco
  • 3 variants in 5 lengths

Mechanical

The elegant and compact TEIDE series is the best choice for all applications where high performance tubular lighting with minimal space requirements is needed. Anti-leakage seals are integrated into the housing for increased grip, ensuring adequate resistance to liquids and dust.

TEIDE Power S

  • Housing made of extruded anodized aluminum
  • Side housings made of stainless steel
  • Ø 1.18 "
  • Clear PMMA acrylic - 120 °
  • High degree of protection IP67
  • 6.56 ft prefabricated cable with M12 connector
  • Available in 5 lengths

TEIDE Power Q

  • Housing made of extruded anodized aluminum
  • Side housings made of stainless steel
  • Ø 1.18 "
  • Fired polycarbonate - 120 °
  • Protection degree IP54
  • 6.56 ft prefabricated cable with M12 connector
  • Available in 5 lengths

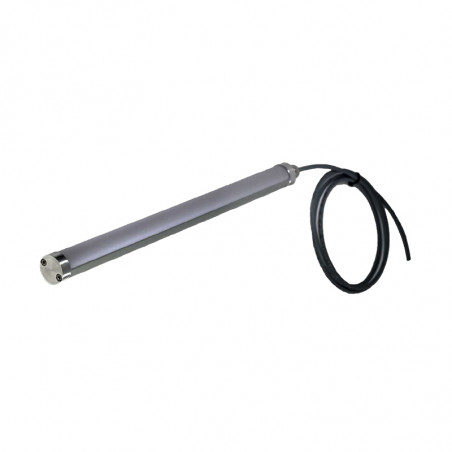

TEIDE Eco

  • Housing made of extruded anodized aluminum
  • Side housings made of stainless steel
  • Ø 0.94 "
  • Fired polycarbonate - 120 °
  • Protection degree IP54
  • 6.56 ft prefabricated cable with M12 connector
  • Available in 5 lengths

Electric

The main feature of the TEIDE series is the exceptional brightness and strong beam which is generated by highly efficient medium power LED circuits.

  • LED board with built-in 24 V DC
  • 21, 42, 63, 84 or 105 medium power LEDs
  • 10 - 50 W of power for S and Q models
  • Power 5 - 25 W for the Eco model
  • Connection via 6.56 ft PUR 3G side cable with pre-assembled M12 connector

Optical

High lighting efficiency, uniform lighting

The TEIDE series uses the latest LED Mid Power technology in the 5000K CRI 80 model and provides softer, relaxing and balanced light than ever before. Two optical options - clear PMMA, which provides a high-flow luminous flux, and opal polycarbonate, which distributes the light for a uniform effect in a highly efficient way - offer a broader perspective in selecting the more appropriate illuminance for different environments and applications. The TEIDE series provides the highest and most efficient light output up to 4,000lm that exists today and excellent illumination over 60,000 hours, helping to achieve a higher price / performance ratio.

  • 5000 K monochrome light
  • Luminous flux from 400 to 2000 lm Eco - from 800 to 4000 lm Power version
  • CRI 80
  • Transparent PMMA cover or opal polycarbonate cover, light distribution 120 °
  • Life span of 60,000 hours L70
  • No photobiological risk in accordance with EN 62471

MOUNTING BRACKETS

TD.FX01

Robust, versatile and vibration-resistant, it allows the use of a 60 ° angle-adjustable bracket for the TEIDE Power models. Made of chrome plated stainless steel, it is the best choice when you need to adjust the direction of the flow beam in high vibration applications.
TD.FX01

Strong, strong, magnetic shield made of neodymium. Use together with the TD.FX01 holders when you need to frequently move the light to different positions. Suitable for use in high vibration applications.
Clip.24

Strong, strong, magnetic shield made of neodymium. Use together with the TD.FX01 holders when you need to frequently move the light to different positions. Suitable for use in high vibration applications.

POWER CABLES

TEIDE models come pre-assembled with a pre-assembled 3G PUR 3G side cable with a connector or M12 connector as required. No additional device is needed.
