Mini coolere HP serii TCW 2500 – 4450 W
  • Mini coolere HP serii TCW 2500 – 4450 W

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: TEXA industries

Mini coolere HP serii TCW 2500 – 4450 W

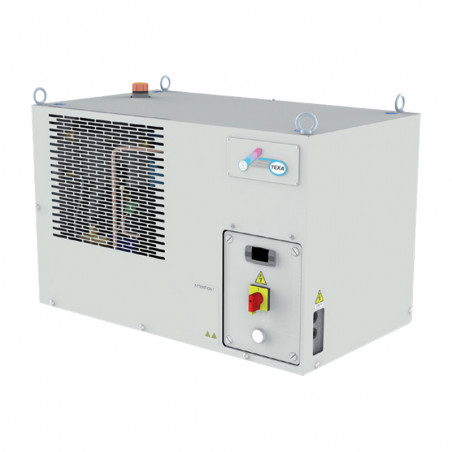

Mini industrial coolers, HP TCW 3000- 4450W series


Cooling power range 3000  -  4450 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve.
Temperature control Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data


TCW 31  TCW 41
50 Hz 60 Hz 50 Hz 60 Hz
Nominal cooling power [W] 3000 3450 3900 4450
Ambient temperature [°C] +15 ÷ +45
Water temperature [oC] +8 ÷ +25
Cooling liquid R410A
Power supply [V] 230
Power [kW] 1,7 1,7
Pump
Water flow  [l/min] 8,5/20,0 11,0/20,0
Water pressure [bar] 5,8 5,6
Container capacity [l] 10
Water terminal [mm] 10
Weight [kg] 54 54
